Ubiquiti Device Bridge
Please contact us for stocking information.

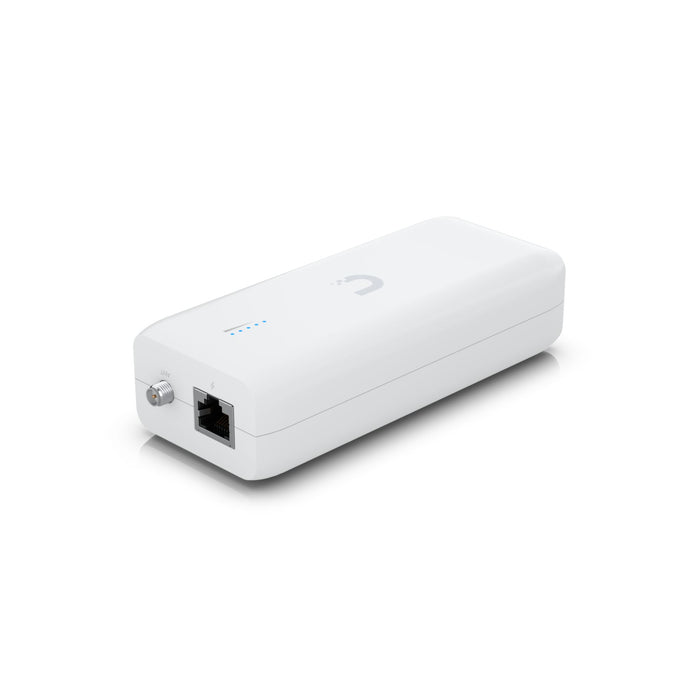

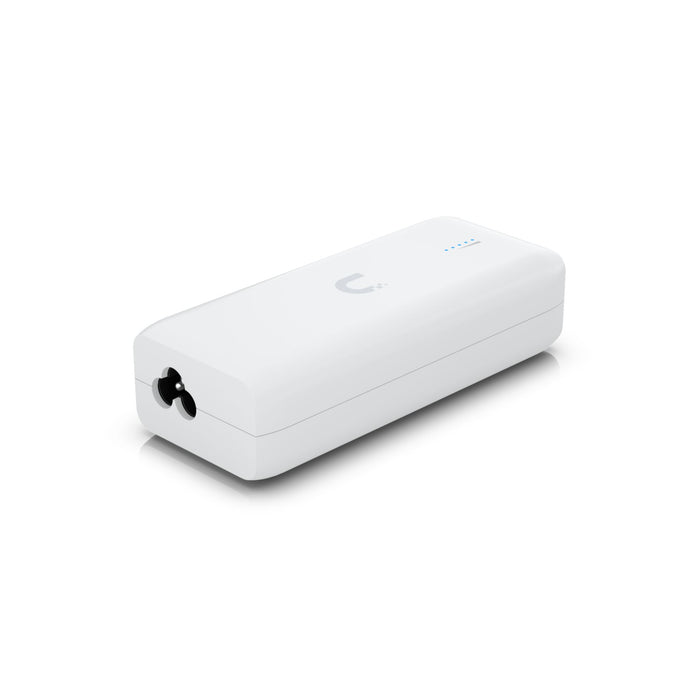

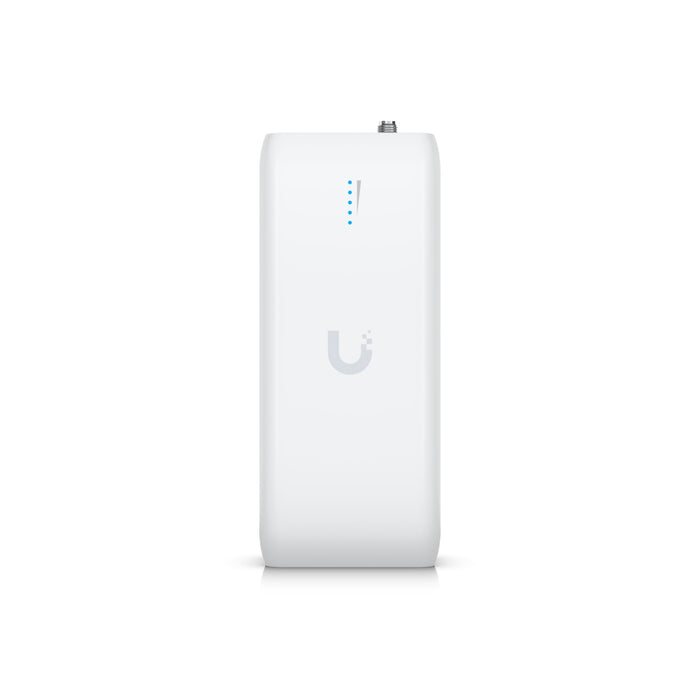

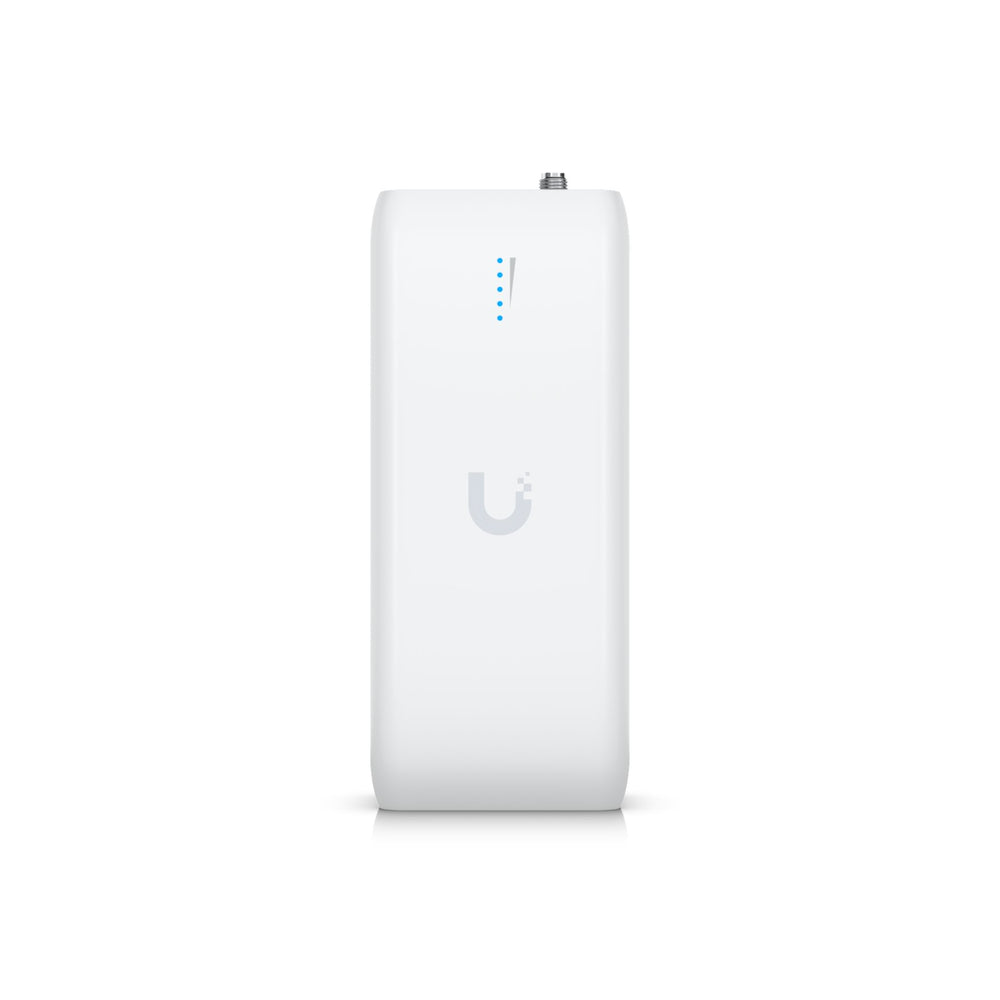

The Ubiquiti Device Bridge is a user-friendly wireless bridging PoE adapter made for easy connectivity with integrated UniFi WiFi Auto-Link. Featuring one GbE LAN port, it offers a maximum of 15W of PoE for connecting multiple devices. Operating on the 5 GHz band, the Device Bridge delivers impressive throughput speeds up to 867 Mbps, suitable for demanding applications.
It is designed to work with UniFi Protect PoE cameras, Talk phones, and a variety of IoT devices through an Ethernet connection. Please note that UniFi Consoles and access points require the latest software updates for optimal performance.
Tech Specs
| Device Specifications | |
|---|---|
| Dimensions | 130 x 55 x 34 mm (5.1 x 2.2 x 1.3") |
| WiFi Standard | WiFi 5 |
| Spatial Streams | 2 |
| Mounting Locations | Wall, table |
| Mounting | Wall (Included) |
| Power Method | 100—240V AC, 0.45A Max., 50/60 Hz |
| Performance | |
| MIMO | 5 GHz: 2 x 2 |
| Max. Data Rate | 5 GHz: 866.7 Mbps (BW80) |
| Antenna Gain | 5 GHz: Internal: 5 dBi External omni: 4 dBi, 360° x 30° |
| Max. TX Power | 5 GHz: 21 dBm |
| Supported Data Rates | 802.11ac (WiFi 5): 6.5 Mbps to 866.7 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80) 802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| Wireless Security | WPA2 AES |
| Hardware | |
| Max. Power Consumption | 25W (AC input) 10W (Excluding PoE output) |
| Supported Voltage Range | 100—240V AC |
| Networking Interface | (1) GbE RJ45 port |
| Antennas | (1) Internal antenna (1) RP-SMA connector for external omni-antenna |
| Management | WiFi |
| Channel Bandwidth | 20/40/80 (MHz) |
| Weight | 200 g (7.1 oz) |
| Enclosure Material | Polycarbonate |
| Mount Material | Polycarbonate |
| Button | (1) Factory-reset |
| LEDs | System: (4) Blue: signal (1) White/blue: indicator |
| NDAA Compliant | ✓ |
| Certifications | CE, FCC, IC |
| Operating Frequency | US/CA: U-NII-1 5150 - 5250 MHz U-NII-2A 5250 - 5350 MHz U-NII-2C 5470 - 5725 MHz U-NII-3 5725 - 5850 MHz Worldwide: 5150 - 5875 MHz |
| Ambient Operating Temperature | -10 to 40° C (14 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
FAQs
Q: What is the Ubiquiti UDB and what is it used for?
A: The UDB is a compact wireless bridge designed to extend network connectivity by wirelessly linking devices over the 5 GHz band, ideal for connecting UniFi Protect cameras, Talk phones, and other IoT devices.
Q: What are the key features of the UDB?
A: The UDB offers plug-and-play setup, 5 GHz wireless bridging, PoE output for powering connected devices, and integrated UniFi WiFi Auto-Link for seamless integration into UniFi networks.
Q: How is the UDB powered and connected?
A: The UDB is powered via 100–240V AC input and provides passive PoE output through its Gigabit Ethernet port, simplifying deployment and reducing cable clutter.
Q: What is the maximum throughput of the UDB?
A: The UDB supports a maximum data rate of 867 Mbps on the 5 GHz band, ensuring reliable and high-speed wireless connections.
Q: How is the UDB managed?
A: The UDB is managed through the UniFi Network application, allowing for centralized configuration, monitoring, and firmware updates.
