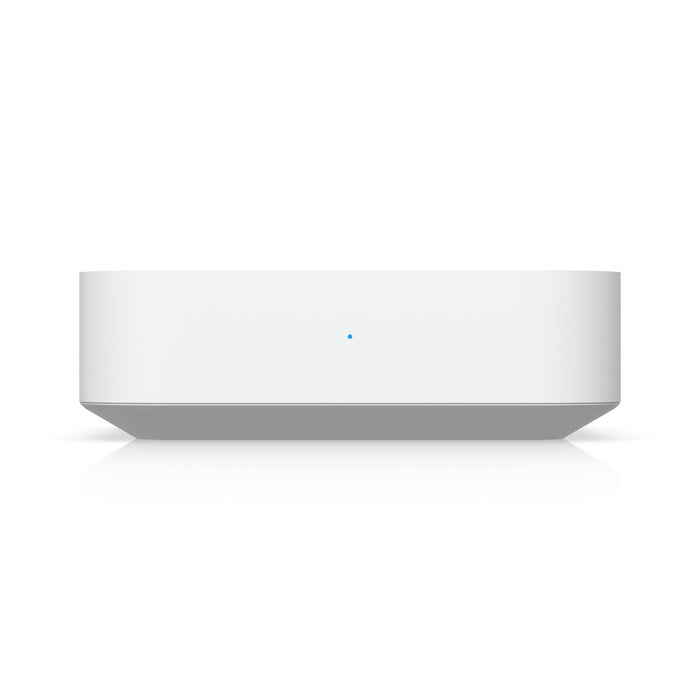

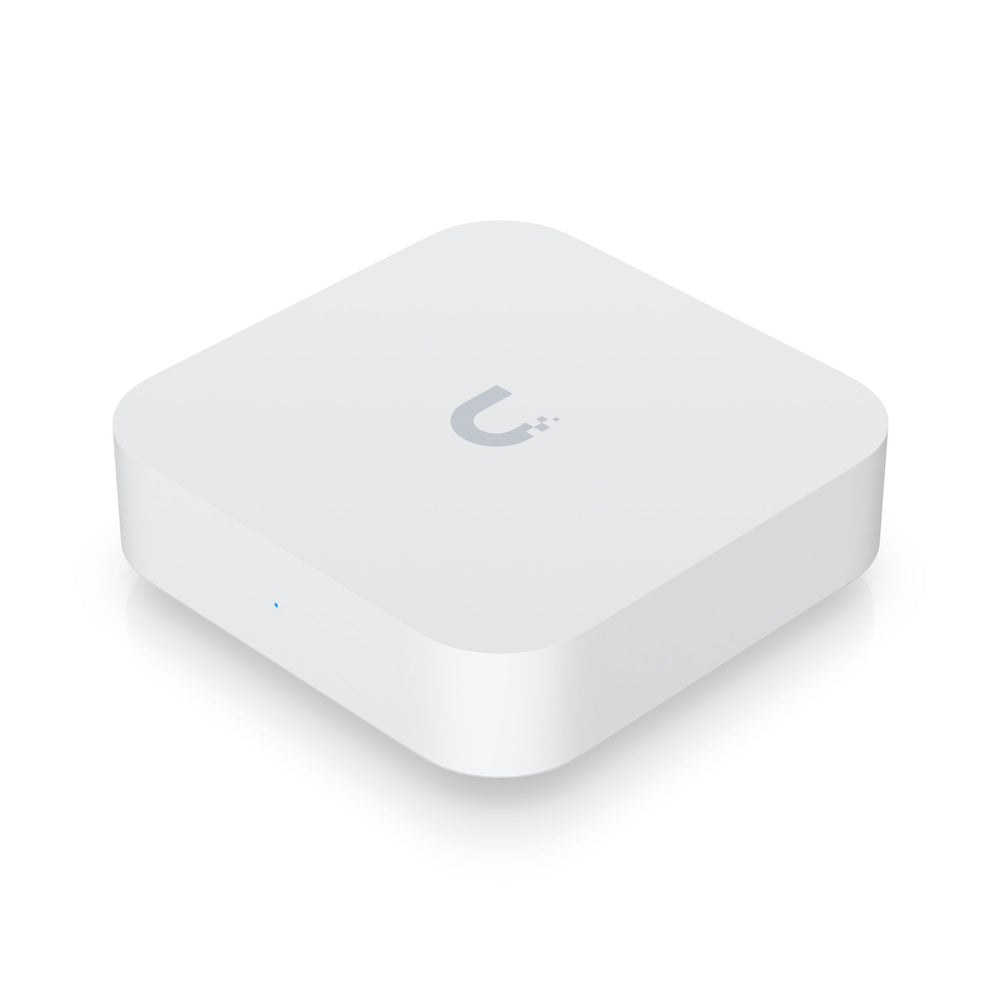

Ubiquiti UniFi Gateway Lite

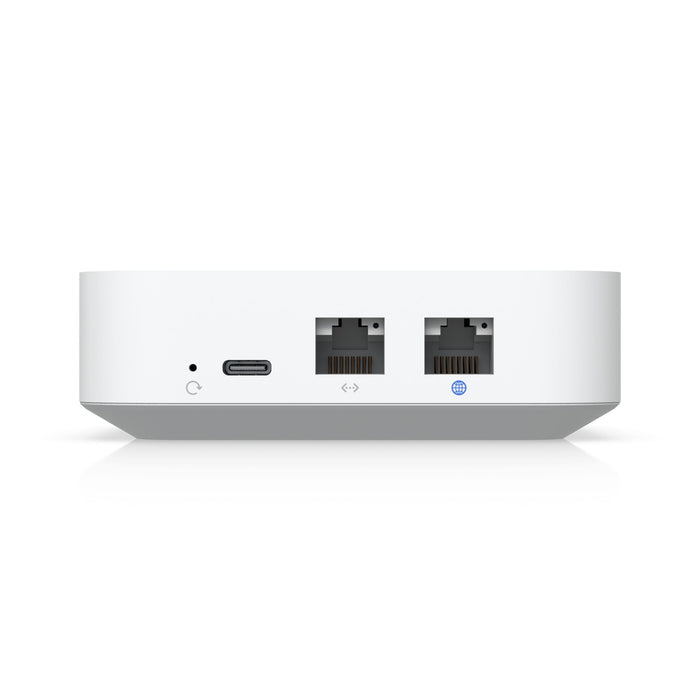

Enhance your network capabilities with the UniFi Gateway Lite, a compact and highly efficient gateway featuring advanced routing and security options. See up to ten times the routing performance compared to the USG with IPS/IDS, QoS, and Smart Queues. Easily manage this device with a CloudKey, Official UniFi Hosting, or UniFi Network Server. This gateway includes (1) GbE WAN port, (1) GbE LAN port, and a compact USB-C powered design with included adapter. Manage it seamlessly with UniFi Network 8.0.7 and later.
Any EU products are supplied with the appropriate UK power method at no extra cost.
Tech Specs
Click here for the Ubiquiti UniFi Gateway Lite datasheet.
| Device Specifications | |
|---|---|
| Overview | |
| Dimensions | 98 x 98 x 30 mm (3.9 x 3.9 x 1.2") |
| Max. WAN Port Count | 1 |
| Default WAN Ports | (1) GbE RJ45 |
| Port Layout | 1 GbE RJ45 2 (1G/100M/10M) |
| IDS/IPS Throughput | 1 Gbps |
| Form Factor | Compact desktop |
| Security | |
| Stateful Firewall | ✓ |
| Application-Aware Layer 7 Firewall | ✓ |
| DPI & Traffic Identification | ✓ |
| Zone-Based Firewall Advanced Filtering | ✓ (Regions, Domains, Apps) |
| Content Filtering | ✓ |
| Intrusion Prevention (IPS/IDS) | ✓ |
| Ad Blocking | ✓ |
| VPN & SD-WAN | |
| License-Free SD-WAN | ✓ |
| Site-to-Site VPN | Site Magic ✓ |
| IPsec | ✓ |
| OpenVPN | ✓ |
| VPN Server | Teleport Zero-Configuration VPN ✓ WireGuard ✓ OpenVPN ✓ L2TP ✓ |
| VPN Client | OpenVPN ✓ WireGuard ✓ |
| Networking | |
| Dynamic Routing | OSPF ✓ |
| Advanced QoS | ✓ |
| Multicast DNS (mDNS) | ✓ |
| Advanced NAT | ✓ (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT) |
| Integrated RADIUS Server | ✓ |
| RADIUS over TLS (RadSec) | ✓ |
| Additional Internet Failover | ✓ (with UniFi LTE Backup) |
| Internet Quality & Outage Reporting | ✓ |
| Policy-based WAN & VPN Routing | ✓ |
| Customizable DHCP Server | ✓ |
| IPv6 ISP Support | ✓ |
| Hardware | |
| Max. Power Consumption | 3.83W |
| Power Method | USB type C (5V DC/3A) |
| Power Supply | USB type C (5V DC/3A) (Adapter included) |
| Supported Voltage Range | 100—240V AC |
| Processor | Dual-core ARM® Cortex®-A53 at 1 GHz |
| System Memory | 1 GB |
| Weight | 320 g (11.3 oz) |
| Enclosure Material | Polycarbonate |
| Management | Ethernet Bluetooth |
| LEDs | Ethernet ✓ |
| Button | (1) Factory-reset |
| Ambient Operating Temperature | -10 to 40° C (14 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| NDAA Compliant | ✓ |
| Certifications | CE, FCC, IC, Anatel |
| Software | |
| Application Requirements | UniFi Network Version 8.3.32 and later |
FAQs
Q. What type of device is the Ubiquiti UXG-Lite?
A: The UXG-Lite is a compact UniFi gateway router that provides gigabit routing, firewall security, and centralised management through the UniFi Network platform.
Q. What performance capabilities does the UXG-Lite offer?
A: The UXG-Lite delivers gigabit routing performance with support for advanced features like IDS/IPS and deep packet inspection for secure, efficient networking.
Q. How does the UXG-Lite integrate with UniFi Network?
A: It is managed through the UniFi Network application, enabling centralised configuration, monitoring, and seamless integration with other UniFi devices.
Q. What networking and power options are available for the UXG-Lite?
A: The UXG-Lite has dual gigabit Ethernet ports for WAN and LAN and is powered via USB-C, offering flexible deployment options.
Q. What installation environments are ideal for the UXG-Lite?
A: The UXG-Lite is designed for small businesses, home offices, and prosumer environments that require secure, reliable, and manageable gateway performance.
