Ubiquiti IsoStation 5AC 5GHz CPE
The Ubiquiti IsoStation 5AC is a versatile device that features a shielded die-cast aluminum base and interchangeable horn antenna, allowing for minimal side lobes and a variety of deployment options. The standard 45° symmetrical horn can easily be switched out for a 30° symmetrical horn or a 60° or 90° asymmetrical horn using a single button release feature. This makes it simple to adjust or upgrade your network as needed.
Tech Specs
Click here for the Ubiquiti IsoStation 5AC 5GHz CPE datasheet.
| Device Specifications | |
|---|---|
| Mechanical | |
| Dimensions | Without horn: 131 x 131 x 65 mm (5.2 x 5.2 x 2.6") With horn: 174 x 174 x 150 mm (6.9 x 6.9 x 5.9") |
| Weight | Without horn: 408.2 g (0.9 lb) With horn: 725.7 g (1.6 lb) |

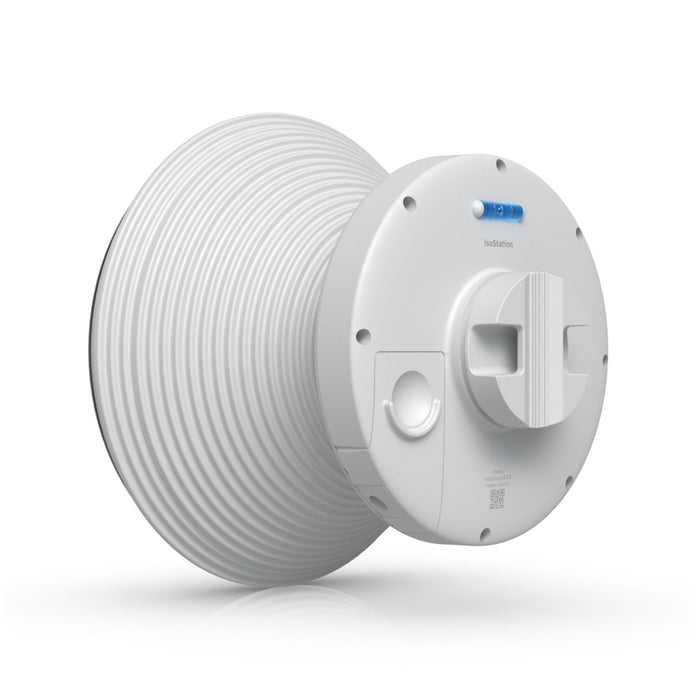

| Mounting | Pole mount kit (Included) |
| Wind Loading | 36 N at 200 km/h (8.09 lbf at 125 mph) |
| Wind Survivability | 200 km/h (125 mph) |
| Hardware | |

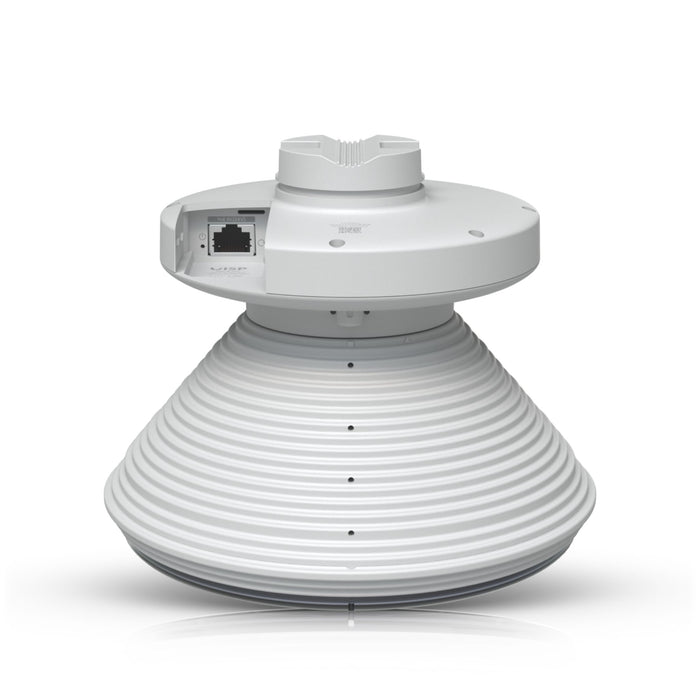

| Networking Interface | (1) GbE RJ45 port |
| Power Method | Passive PoE 2-pair (4, 5+; 7, 8 return) |
| Power Supply | 24V, 0.5A gigabit PoE adapter (Included) |
| Max. Power Consumption | 8.5W |
| Supported Voltage Range | 20—27V DC |
| LED | (1) Power |
| Ambient Operating Temperature | -40 to 70° C (-40 to 158° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| System | |
| Gain | 14 dBi |
| Beamwidth | 45° (Default horn) |
| Operating Frequency (MHz) | |
| Worldwide | 5150-5875 MHz |
| USA | U-NII-1: 5150-5250 MHz U-NII-2A: 5250-5350 MHz U-NII-2C: 5240-5725 MHz U-NII-3: 5725-5850 MHz |
| Management Radio (MHz) | |
| Worldwide | 2412 - 2472 MHz |
| US/CA | 2412 - 2462 MHz |
| NDAA Compliant | Yes |
FAQs
Q1: What is the Ubiquiti IS-5AC?
A1: The IS-5AC is a 5 GHz airMAX ac radio designed for outdoor use. It features a 14 dBi gain horn antenna and supports up to 450 Mbps real TCP/IP throughput, making it ideal for Point-to-Point (PtP) and Point-to-Multipoint (PtMP) deployments.
Q2: What are the key specifications of the IS-5AC?
A2:
-
Frequency Band: 5 GHz (5150–5875 MHz)
-
Gain: 14 dBi
-
Throughput: Up to 450 Mbps real TCP/IP
-
Beamwidth: 45° (default horn)
-
Power Supply: 24V, 0.5A Gigabit PoE Adapter (Included)
-
Power Consumption: Max 8.5W
-
Operating Temperature: -40°C to 70°C
-
Dimensions (with horn): 174 x 174 x 150 mm
-
Weight (with horn): 725.7 g
-
Mounting: Pole-mounting kit included
-
Certifications: CE, FCC, IC
Q3: How does the IS-5AC improve upon previous models?
A3: The IS-5AC features an all-metal, shielded radio base for enhanced durability and noise immunity. It also offers interchangeable horn antennas (30°, 60°, 90°) for tailored beam shaping, improving co-location performance without sacrificing gain.
Q4: What software features does the IS-5AC support?
A4: The IS-5AC supports Ubiquiti’s airMAX ac protocol, which utilizes TDMA technology to reduce latency and improve scalability. It also includes a dedicated Wi-Fi management radio for easy setup using the UISP mobile app.
Q5: How is the IS-5AC installed and powered?
A5: The IS-5AC is powered via 24V passive PoE and includes a pole-mounting kit for easy installation. Its lightweight design and integrated antenna simplify alignment and setup.
