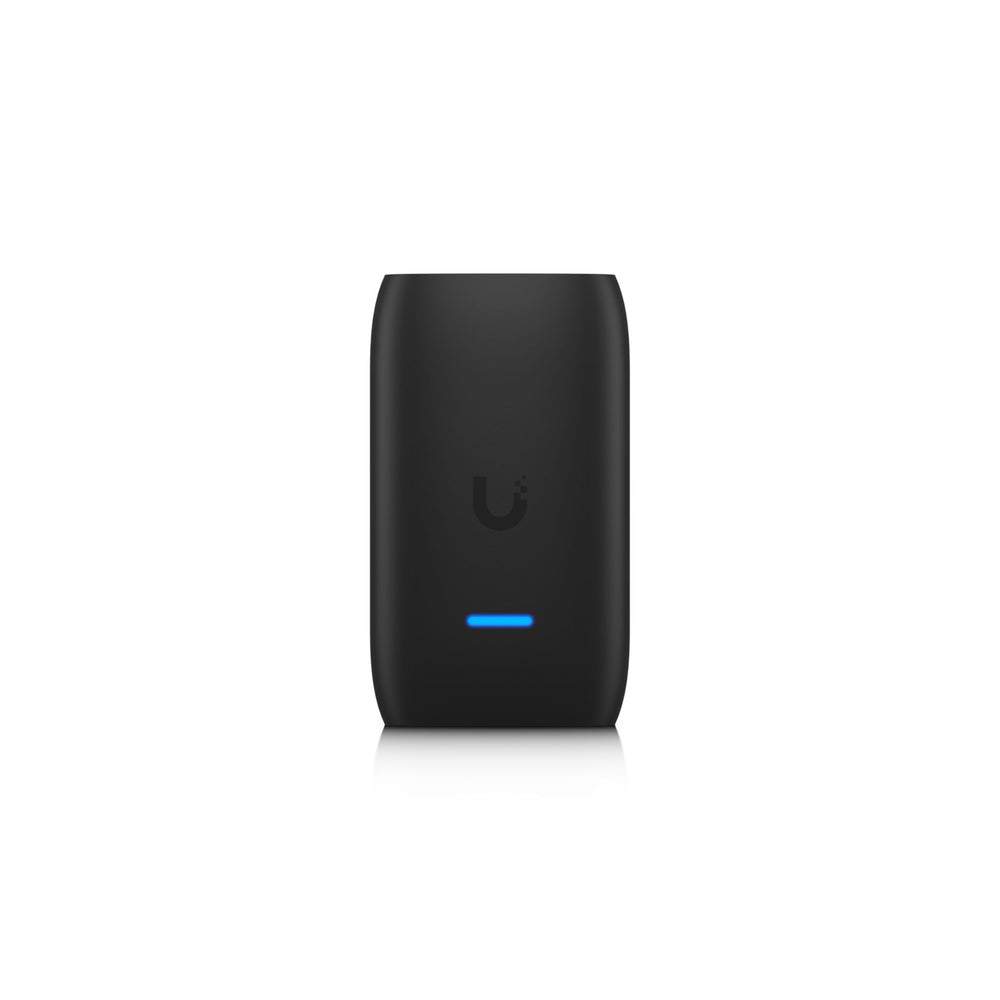

Ubiquiti UniFi Display Cast Lite
The Ubiquiti UniFi Display Cast is a compact digital signage player that enables smooth 1080p media playback on any HDMI-compatible display.
Designed for seamless integration with UniFi networks, it connects via WiFi using Auto-Link and supports HDMI CEC to automatically power displays on or off.
Powered by a USB-C adapter, it’s ideal for clean, simple installations in commercial and professional environments.
Note: HDMI cable not included. Protect camera streaming is not supported – use UniFi Protect Viewport for HDMI camera feeds.
Any EU products are supplied with the appropriate UK power method at no extra cost.
Tech Specs
View the Ubiquiti UniFi Display Cast Lite datasheet here.
| Device Specifications | |
|---|---|
| Overview | |
| Dimensions | Without mount: 90 x 52 x 31 mm (3.5 x 2.1 x 1.2") With mount: 92.1 x 56.3 x 40.8 mm (3.6 x 2.1 x 1.4") |
| Display Output | (1) HDMI port |
| Video Content Support | 480p / 720p / 1080p |
| UniFi Application Suite | Connect ✓ |
| Mechanical | |
| Weight | Without mount: 160 g (5.6 oz) With mount: 180 g (6.3 oz) |
| Pole Mount Diameter | 1~2" (25–50 mm) |
| Hardware | |
| Processor | Quad-Core Arm® Cortex®-A55, 1.9 GHz |
| Memory | Storage: 16 GB RAM: 2 GB |
| Power Method | (1) USB Type-C 5V DC, 1A |
| Max. Power Consumption | 5W |
| Connectivity | WiFi 2.4G, BW 20/40 MHz WiFi 5G, BW 20/40/80 MHz |
| WiFi Standards | 802.11 a/b/g/n/ac/ax |
| LEDs | System White/blue (Learn More) |
| Buttons | (1) Factory reset |
| Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
| Ambient Operating Humidity | 20 to 90% noncondensing |
| Certifications | CE, FCC, IC, Wi-Fi CERTIFIED UL 62368-1, CSA C22.2 No. 62368-1 |
| NDAA Compliant | ✓ |
| Software | |
| Management Application | UniFi Connect Web Version 3.17.0 and later UniFi Connect iOS™ and Android™ Version 2.26.0 and later |
FAQs
Q1. What is the Ubiquiti Display Cast Lite (UC-Cast-Lite) used for?
A. The Ubiquiti Display Cast Lite (UC-Cast-Lite) is a compact wireless presentation device that allows users to stream content from laptops, tablets, or smartphones directly to displays. It is ideal for classrooms, meeting rooms, and collaborative workspaces.
Q2. How does the UC-Cast-Lite integrate with UniFi networks?
A. The UC-Cast-Lite works seamlessly with UniFi networks, ensuring secure and high-performance wireless streaming. It can be managed via the UniFi Network application for monitoring, firmware updates, and device configuration.
Q3. What display and streaming capabilities does the UC-Cast-Lite provide?
A. The Ubiquiti Display Cast Lite (UC-Cast-Lite) supports HD video streaming, multiple simultaneous connections, and low-latency casting. It is compatible with Windows, macOS, Android, and iOS devices for versatile presentation options.
Q4. Is the UC-Cast-Lite suitable for professional and educational environments?
A. Yes. The UC-Cast-Lite is designed for reliable performance in classrooms, boardrooms, and training facilities, providing secure, lag-free wireless display capabilities that support collaborative work.
Q5. How is the UC-Cast-Lite powered and installed?
A. The Ubiquiti Display Cast Lite (UC-Cast-Lite) is powered via USB or standard AC adapters. Its compact form factor allows easy mounting behind displays, on walls, or on tables for flexible deployment.
