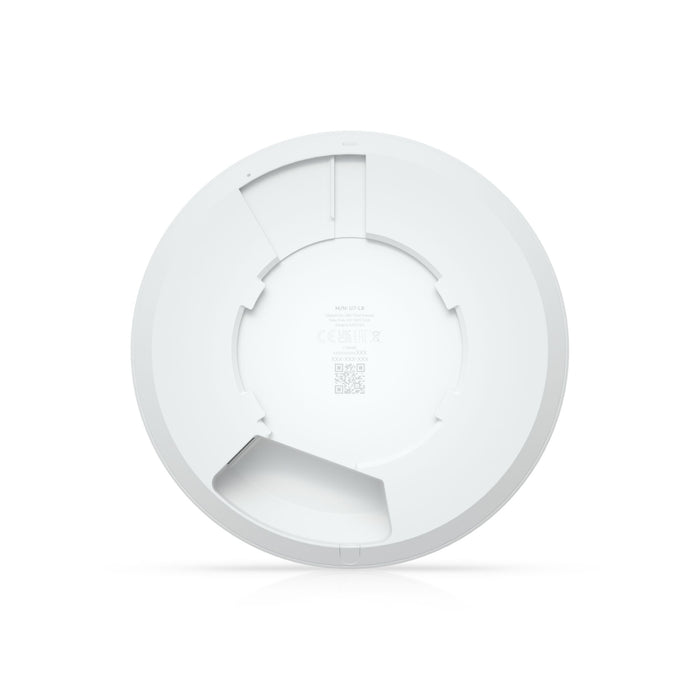

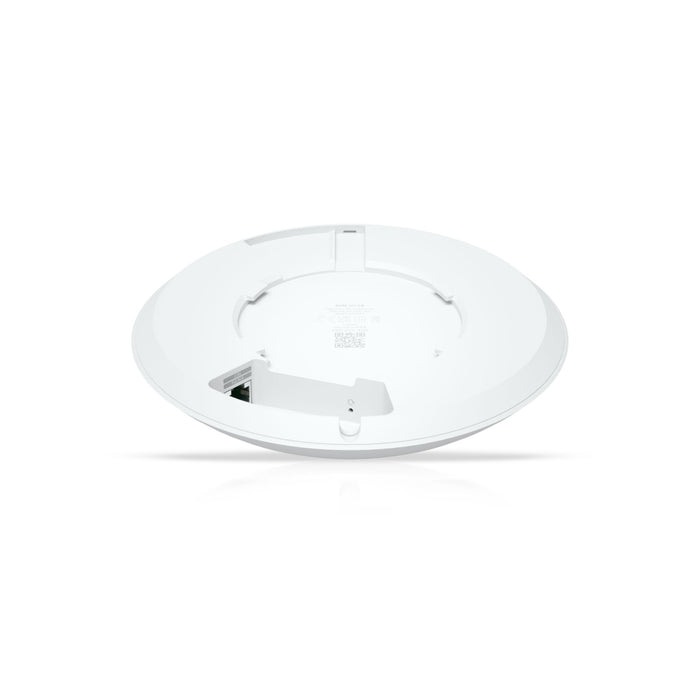

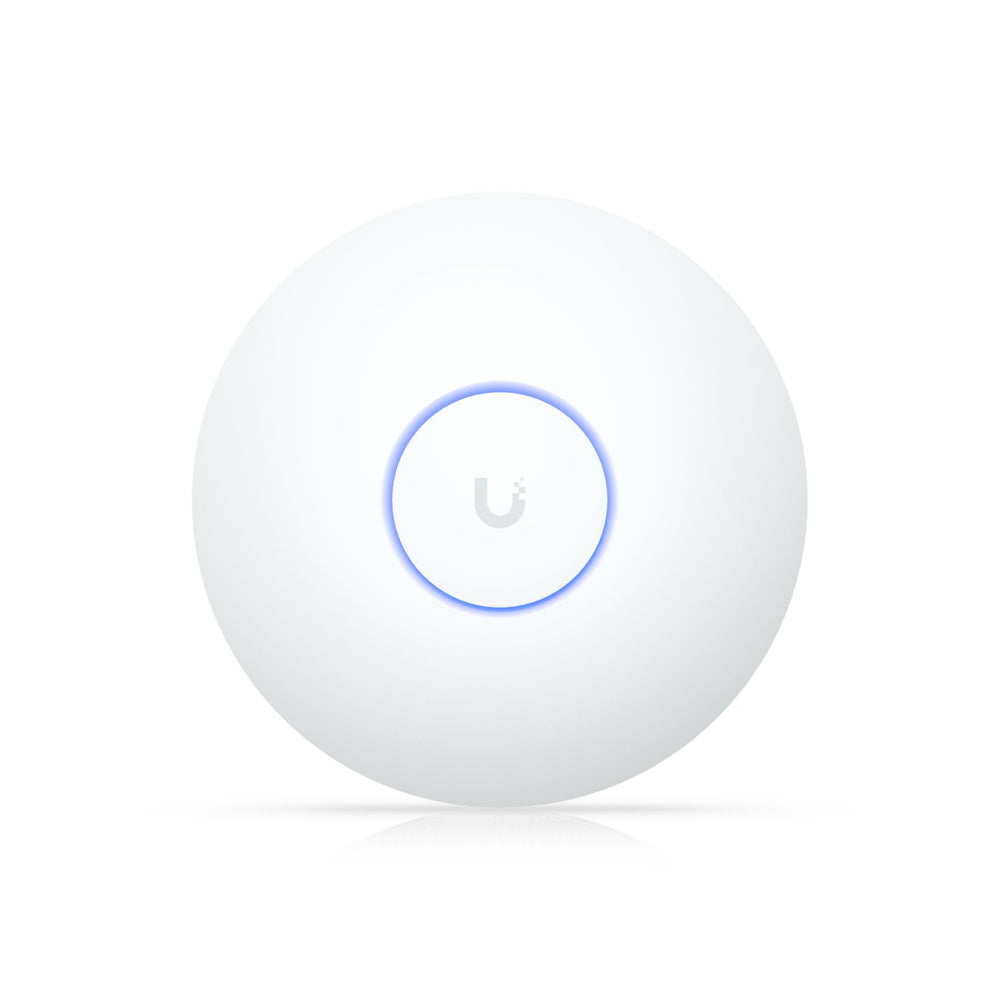

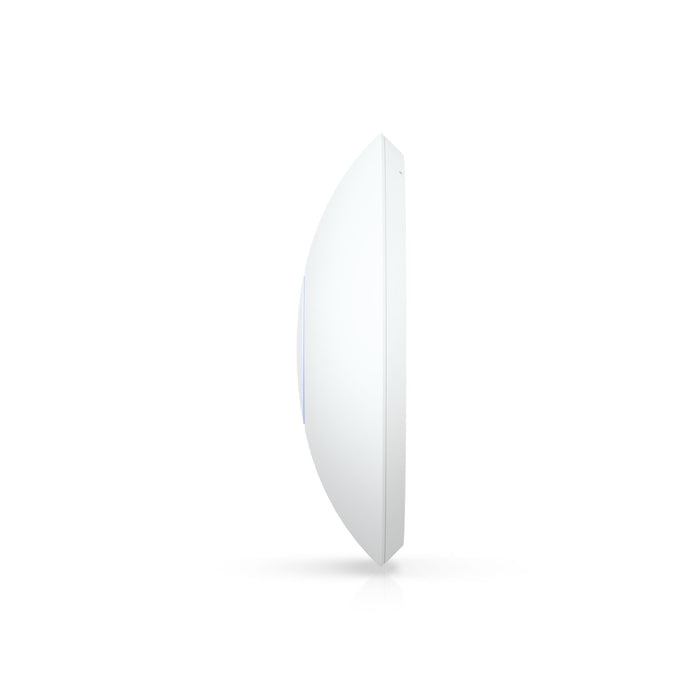

Ubiquiti UniFi U7 Long-Range
The Ubiquiti UniFi U7 Long-Range (U7-LR) is a ceiling-mounted WiFi 7 access point engineered for enterprise and campus-scale networks. Leveraging the latest 802.11be (WiFi 7) standard and equipped with five spatial streams, the U7-LR delivers exceptional range, speed, and capacity - ideal for high-density, high-demand environments.
With a combined wireless throughput of up to 4.9 Gbps (688 Mbps on 2.4 GHz and 4.3 Gbps on 5 GHz), it supports bandwidth-intensive applications and large client volumes with ease. Its long-range antenna design ensures broad signal propagation, while a 2.5 GbE uplink port enables reliable, high-speed backhaul.
The U7-LR integrates fully with the UniFi Network Controller, offering centralised management, real-time monitoring, and features like band steering, roaming optimisation, and traffic shaping. Powered by PoE, the device allows for clean and simple installation and is backward compatible with WiFi 6/6E and earlier devices, ensuring seamless network integration.
Compact and low-profile, the UniFi U7 Long-Range combines future-ready WiFi 7 performance with expansive coverage, making it ideal for modern business and institutional environments.
Tech Specs
Click here to view the Ubiquiti UniFi U7 Long-Range datasheet here.
| Device Specifications | |
|---|---|
| Overview | |
| Dimensions | Ø175.7 x 43 mm (Ø6.9 x 1.7") |
| WiFi Standard | WiFi 7 |
| Spatial Streams | 5 |
| Coverage Area | 160 m² (1,750 ft²) |
| Max. Client Count | 300+ |
| Uplink | 2.5 GbE |
| Mounting | Ceiling, Wall (Plastic Mounting Plate included) |
| Power Method | PoE |
| Performance | |
| MIMO | 5 GHz: 3 x 3 (DL/UL MU-MIMO) 2.4 GHz: 2 x 2 (DL/UL MU-MIMO) |
| Max. Data Rate | 5 GHz: 4.3 Gbps (BW160) 2.4 GHz: 688 Mbps (BW40) |
| Antenna Gain | 5 GHz: 6 dBi 2.4 GHz: 4 dBi |
| Max. TX Power | 5 GHz: 27 dBm 2.4 GHz: 26 dBm |
| Supported Data Rates | 802.11be (WiFi 7): 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2/3, EHT 20/40/80/160) 802.11ax (WiFi 6): 7.3 Mbps to 3.6 Gbps (MCS0 - MCS11 NSS1/2/3, HE 20/40/80/160) 802.11ac (WiFi 5): 6.5 Mbps to 2.6 Gbps (MCS0 - MCS9 NSS1/2/3, VHT 20/40/80/160) 802.11n: 6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40) |
| Features | |
| Wireless Meshing | ✓ |
| Band Steering | ✓ |
| 802.11v BSS Transition Management | ✓ |
| 802.11r Fast Roaming | ✓ |
| 802.11k Radio Resource Management (RRM) | ✓ |
| Advanced Radio Management | ✓ |
| Passpoint (Hotspot 2.0) | ✓ |
| Captive Hotspot Portal | Custom Branding Landing Page: ✓ Voucher Authentication: ✓ Payment-Based Authentication: ✓ External Portal Server Support: ✓ Password Authentication: ✓ |
| Guest Network Isolation | ✓ |
| Private Pre-Shared Key (PPSK) | ✓ |
| WiFi Speed Limiting | ✓ |
| Client Device Isolation | ✓ |
| WiFi Schedules | ✓ |
| RADIUS over TLS (RadSec) | ✓ |
| Dynamic RADIUS-assigned VLAN | ✓ |
| Hardware | |
| Max. Power Consumption | 14W |
| Supported Voltage Range | 42.5—57V DC |
| Networking Interface | (1) 2.5 GbE RJ45 port |
| Weight | 448 g (15.8 oz) |
| Management | Ethernet |
| Enclosure Material | Polycarbonate, aluminum alloy |
| Mount Material | Polycarbonate, galvanized steel (SGCC) |
| LEDs | System: White/Blue |
| Channel Bandwidth | HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160 (MHz) |
| NDAA Compliant | ✓ |
| Certifications | CE, FCC, IC |
| Ambient Operating Temperature | -30 to 50° C (-22 to 122° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Software | |
| Application Requirements | UniFi Network: Version 9.1.120 and later |
| Mobile App | iOS™ version 10.20.2 and later Android™ version 10.21.7 and later |
FAQs
Q: What is the Ubiquiti U7-LR and what is it designed for?
A: The U7-LR is a high-performance Wi-Fi 7 long-range access point with 6 spatial streams and up to 10.3 Gbps aggregate throughput, ideal for enterprise and high-density networks.
Q: What frequency bands does the U7-LR support?
A: It operates on 2.4 GHz, 5 GHz, and 6 GHz bands, leveraging Wi-Fi 7 features like 320 MHz channel width and Multi-Link Operation (MLO) for improved speed and reliability.
Q: How many concurrent users can the U7-LR handle?
A: With Wi-Fi 7 efficiency and advanced MU-MIMO, the U7-LR can handle hundreds of simultaneous client connections with minimal latency.
Q: How is the U7-LR powered and connected?
A: It features a 2.5 GbE RJ45 port and is powered via PoE+ (802.3at), simplifying deployment with a single cable for both power and data.
Q: How is the U7-LR managed?
A: The device is managed via the UniFi Network application, offering centralised configuration, performance monitoring, and integration with other UniFi devices.
