MikroTik RouterBOARD hAP ac2 in Tower Case
Please contact us for stocking information.

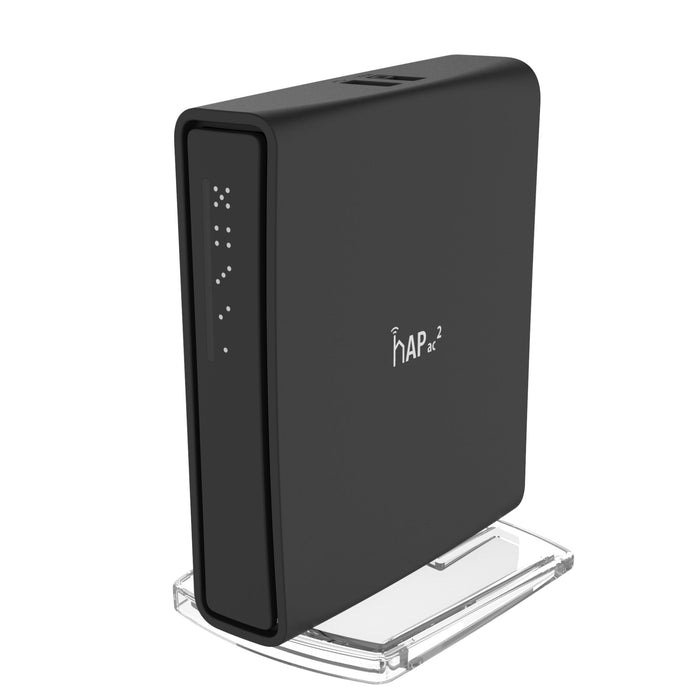

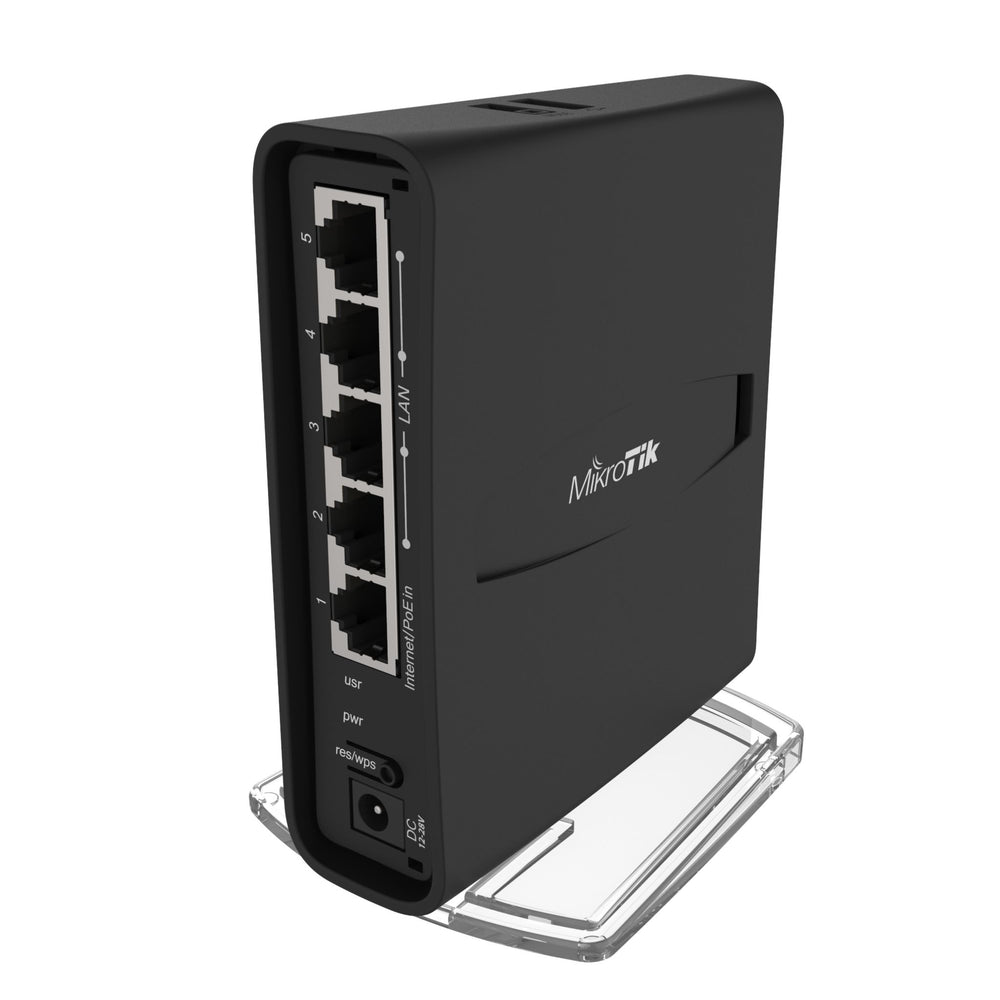

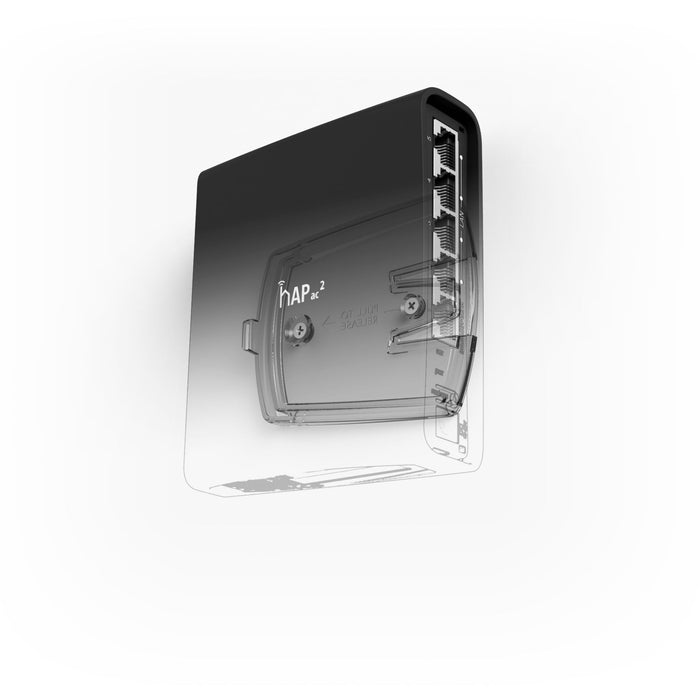

The hAP ac² from MikroTiks is a dual-concurrent Access Point that offers WiFi coverage for both 2.4 GHz and 5 GHz frequencies. With five 10/100/1000 Ethernet ports, this device provides Gigabit connections for all your wired devices. The included USB port allows for external storage or a 4G/LTE modem. This newly designed alternative to the hAP AC features a universal case that can be positioned either horizontally (desktop) or vertically (tower case). A wall mounting kit is also provided for secure installation.
Tech Specs
Click here for the RBD52G-5HacD2HnD-TC datasheet.
| Device Specifications | |
|---|---|
| Product code | RBD52G-5HacD2HnD-TC |
| Architecture | ARM 32bit |
| CPU | IPQ-4018 |
| CPU core count | 4 |
| CPU nominal frequency | 488-896 (auto) MHz |
| Switch chip model | IPQ-4018 |
| Dimensions | 34 x 119 x 98 mm |
| RouterOS license | 4 |
| Operating System | RouterOS |
| Size of RAM | 128 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 100'000 hours at 25°C |
| Tested ambient temperature | -40°C to 50°C |
| IPsec hardware acceleration | Yes |
| Suggested price | $79.00 |
| Wireless Capabilities | |
| 2.4 GHz Max data rate | 300 Mbit/s |
| 2.4 GHz number of chains | 2 |
| 2.4 GHz standards | 802.11b/g/n |
| Antenna gain dBi (2.4 GHz) | 2.5 |
| 2.4 GHz chip model | IPQ-4018 |
| 2.4 GHz generation | Wi-Fi 4 |
| 5 GHz Max data rate | 867 Mbit/s |
| 5 GHz number of chains | 2 |
| 5 GHz standards | 802.11a/n/ac |
| Antenna gain dBi (5 GHz) | 2.5 |
| 5 GHz chip model | IPQ-4018 |
| 5 GHz generation | Wi-Fi 5 |
| WiFi speed | AC1200 |
| Ethernet | |
| 10/100/1000 Ethernet ports | 5 |
| Peripherals | |
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB type A |
| Max USB current (A) | 1 |
| Powering | |
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 12-30 V |
| Max power consumption | 21 W Without attachments: 16 W |
| PoE in | Passive PoE Input Voltage: 18-28 V |
| Cooling type | Passive |
| Certification & Approvals | |
| Certification | CE, FCC, IC, EAC, ROHS |
| IP | IP20 |
| Other | |
| Mode button | Yes |
| Wireless Specifications – Detailed | |
| 2.4 GHz Transmit (dBm) / Receive Sensitivity | 1 MBit/s: 27 / -100 11 MBit/s: 27 / -94 6 MBit/s: 27 / -96 54 MBit/s: 24 / -78 MCS0: 27 / -96 MCS7: 23 / -73 |
| 5 GHz Transmit (dBm) / Receive Sensitivity | 6 MBit/s: 26 / -96 54 MBit/s: 22 / -80 MCS0: 26 / -96 MCS7: 21 / -75 MCS9: 19 / -70 |
FAQs
Q: What is the MikroTik RBD52G‑5HacD2HnD‑TC used for?
A: The RBD52G‑5HacD2HnD‑TC is a compact router designed for home and small office use. It offers dual‑band wireless on both 2.4 GHz and 5 GHz, five Gigabit Ethernet ports, and flexible PoE‑in support.
Q: What wireless standards and speeds does the RBD52G‑5HacD2HnD‑TC support?
A: It supports IEEE 802.11b/g/n on 2.4 GHz and IEEE 802.11a/n/ac on 5 GHz, offering dual‑chain MIMO and combined throughput up to approximately AC1200 class under optimal conditions.
Q: How is the RBD52G‑5HacD2HnD‑TC powered, and what networking ports does it have?
A: The device accepts PoE‑in (23–57 V) or standard 12 V DC input. It features five Gigabit Ethernet ports, with the fifth port also capable of PoE‑out to power another device.
Q: What hardware specifications and management features does the RBD52G‑5HacD2HnD‑TC include?
A: It has a dual‑core ARM CPU, 256 MB RAM, 16 MB flash storage, and comes with RouterOS Licence Level 4. It supports VLANs, advanced routing, hotspot, firewall and can be managed via WinBox or WebFig.
Q: Can the RBD52G‑5HacD2HnD‑TC be used in a managed network or mesh setup?
A: Yes, it can be integrated into MikroTik’s CAPsMAN or RouterOS‑based control environments, making it suitable for mesh setups, bridge/repeater modes, or as a gateway device in managed networks.
