Streamline your home internet connection with the Teltonika TCR100. This LTE-A Cat 6 router provides dual-band WiFi and two Ethernet ports, making it perfect for connecting multiple devices. The router also boasts easy setup with WiFi and WiFi Protected buttons, while still offering extensive customisation options for advanced users through RutOS.
Tech Specs
| Device Specifications | |
|---|---|
| Mobile | |
| Mobile module | 4G LTE Cat 6 up to 300 DL/50 UL Mbps; 3G up to 42 DL/5.76 UL Mbps |
| 3GPP Release | Release 11 |
| Status | IMSI, ICCID, operator, operator state, data connection state, network type, CA indicator, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, MNC |
| SMS | SMS status, SMS configuration, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP |
| USSD | Supports sending and reading Unstructured Supplementary Service Data messages |
| Block/Allow list | Operator block/allow list (by country or separate operators) |
| Multiple PDN | Possibility to use different PDNs for multiple network access and services |
| Band management | Band lock, Used band status display |
| SIM PIN code management | SIM PIN code management enables setting, changing, or disabling the SIM card's PIN |
| APN | Auto APN |
| Bridge | Direct connection (bridge) between mobile ISP and device on LAN |
| Passthrough | Router assigns its mobile WAN IP address to another device on LAN |
| Wireless | |
| Wireless mode | 802.11b/g/n/ac Wave 2 (Wi-Fi 5) up to 867 Mbps, Dual Band, MU-MIMO, 802.11r fast transition, Access Point (AP), Station (STA) |
| Wi-Fi security | WPA2-Enterprise: PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w PMF |
| SSID/ESSID | SSID stealth mode and access control based on MAC address |
| Wireless Connectivity Features | Wireless mesh (802.11s), fast roaming (802.11r), Relayd, BSS transition management (802.11v), radio resource measurement (802.11k) |
| Wireless MAC filter | Allowlist, blocklist |
| Wireless QR code generator | Once scanned, a user will automatically enter your network without needing to input login information |
| TravelMate | Forward Wi-Fi hotspot landing page to a subsequent connected device |
| Ethernet | |
| WAN | 1 x WAN port 10/100 Mbps, IEEE 802.3/802.3u/802.3az, auto MDI/MDIX |
| LAN | 1 x LAN port, 10/100 Mbps, IEEE 802.3/802.3u, auto MDI/MDIX crossover |
| Network | |
| Routing | Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing |
| Network protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, WOL, VXLAN |
| VoIP passthrough support | H.323 and SIP-alg NAT helpers for VoIP packet routing |
| Connection monitoring | Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection |
| Security | |
| Authentication | Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users, IP & login attempts block, time-based login blocking, built-in random password generator |
| Firewall | Preconfigured rules via WebUI, unlimited configuration via CLI, DMZ, NAT, NAT-T, NAT64 |
| Attack prevention | DDOS protection, port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL, FIN scan) |
| VLAN | Port and tag-based VLAN separation |
| Mobile quota control | Mobile data limit, customizable period, start time, warning limit, phone number |
| WEB filter | Blacklist for blocking unwanted websites, Whitelist for allowed sites only |
| Access control | Flexible control for SSH, Web UI, CLI, and Telnet |
| Certificate Manager | Create CA, server, client, Let's Encrypt, SCEP certificates |
| VPN | |
| OpenVPN | Multiple clients and server simultaneously, 27 encryption methods |
| IPsec | XFRM, IKEv1, IKEv2, 14 encryption methods (3DES, DES, AES128/192/256, AES-GCM, etc.) |
| GRE | GRE tunnel, GRE tunnel over IPsec support |
| PPTP/L2TP | Client/Server simultaneously, L2TPv3, L2TP over IPsec support |
| Stunnel | Adds TLS encryption to clients/servers without program changes |
| DMVPN | Phase 2 & 3, Dual Hub support for scalable IPsec VPNs |
| SSTP | SSTP client instance support |
| ZeroTier | ZeroTier VPN client support |
| WireGuard | WireGuard VPN client and server support |
| Tinc | Encryption, authentication, compression; client & server support |
| MQTT / MODBUS / IoT Platforms | |
| MQTT Gateway | Modbus MQTT Gateway: sending commands and receiving data from MODBUS Server through MQTT broker |
| MODBUS | Server & Client, TCP, custom registers, 8/16/32-bit INT/UINT/float, HEX, ASCII, multiple byte orders |
| DNP3 | Station, Outstation, TCP |
| DLMS/COSEM | Client, TCP |
| IoT Platforms | ThingWorx, Cumulocity, Azure IoT Hub, AWS IoT Core integration |
| System Characteristics | |
| CPU | Qualcomm MIPS 24kc, 650 MHz |
| RAM | 128 MB, DDR2 |
| FLASH storage | 16 MB, SPI Flash |
| Firmware / Configuration | |
| WEB UI / FOTA / RMS | HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, logs, firmware update notifications, configuration backup |
| Keep settings | Update FW without losing configuration |
| Factory settings reset | Restores all system settings, IP, PIN, user data to default |
| Operating system | RutOS (OpenWrt based Linux OS), Busybox shell, Lua, C, C++ |
| Development tools | SDK package with build environment, GPL customization, Package Manager |
| Power | |
| Connector | 4-pin industrial DC power socket |
| Input voltage range | 9–30 VDC, reverse polarity protection, surge protection >31 VDC 10µs max |
| Power consumption | 3.7 W average, 9.3 W max |
| Physical Interfaces | |

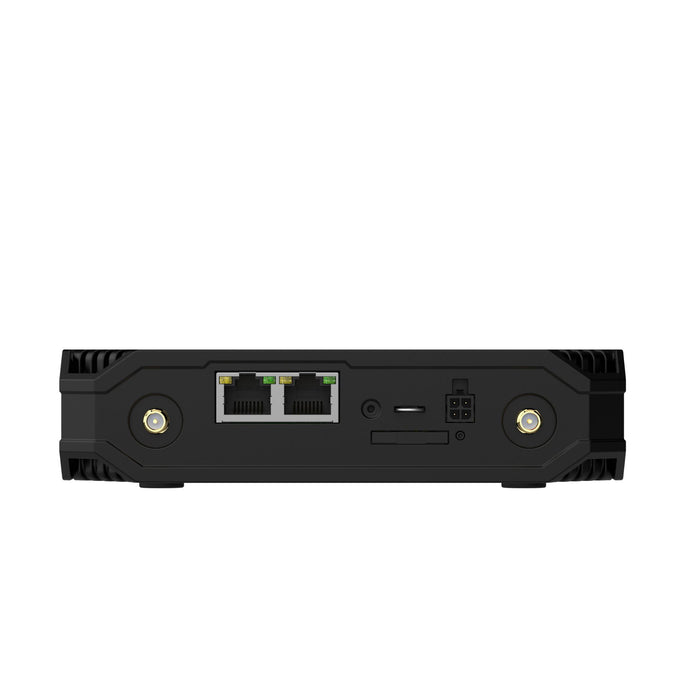

| Ethernet | 2 x RJ45 ports, 10/100 Mbps |
| Status LEDs | 1 x Internet, 1 x WiFi, 3 x Mobile strength, 2 x Ethernet status |
| SIM | 1 x SIM slot (Mini SIM 2FF), 1.8V/3V, external SIM holder, eSIM optional |

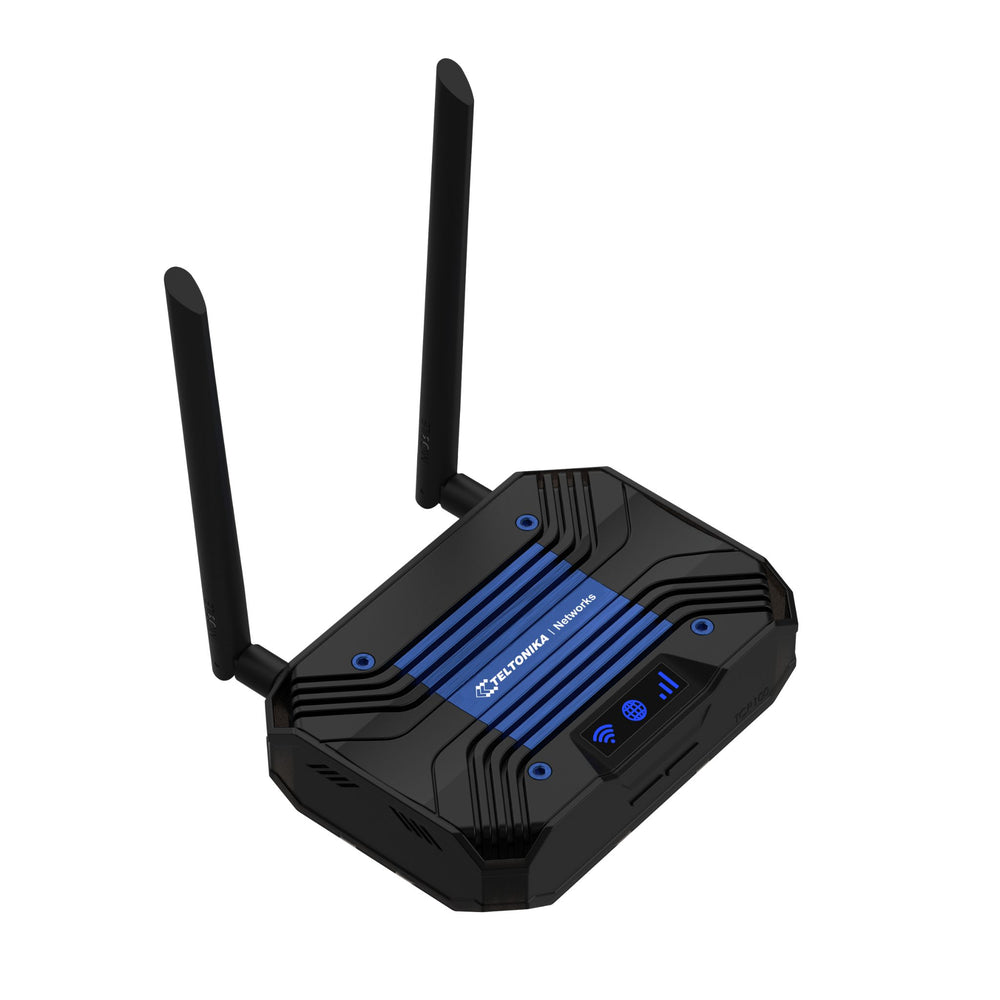

| Antennas | 2 x SMA LTE, 2 x Internal 2.4 GHz Wi-Fi, 1 x Internal 5 GHz Wi-Fi |
| Reset / Wi-Fi / WPS | Reboot/User default/Factory reset button, Wi-Fi enable/disable button, WPS activation button |
| Physical / Operating Environment | |
| Casing material | Plastic housing with aluminium screws and heatsink |
| Dimensions (W x H x D) | 150 x 37 x 105 mm |
| Weight | 376 g |
| Operating temperature | -40 °C to 75 °C |
| Operating humidity | 10% to 90% non-condensing |
FAQs
Q: What is the Teltonika TCR100 used for?
A: The Teltonika TCR100 is a 4G LTE router designed to provide reliable internet access for homes, small offices, and remote setups. It delivers stable wired and wireless connectivity through dual-band Wi-Fi and Gigabit Ethernet ports.
Q: How fast is the Teltonika TCR100?
A: The TCR100 supports 4G LTE Cat 6 with download speeds up to 300 Mbps and upload speeds up to 50 Mbps, ensuring smooth streaming, browsing, and remote work performance.
Q: Does the Teltonika TCR100 support dual-band Wi-Fi?
A: Yes, the TCR100 features dual-band Wi-Fi on 2.4 GHz and 5 GHz frequencies, providing flexibility and better performance for multiple connected devices.
Q: Can I manage the Teltonika TCR100 remotely?
A: Absolutely. The TCR100 can be monitored and configured remotely using Teltonika’s Remote Management System (RMS), allowing secure updates and diagnostics from anywhere.
Q: What SIM cards and networks does the Teltonika TCR100 support?
A: The TCR100 accepts standard mini SIM cards (2FF) and supports a wide range of 4G LTE and 3G frequency bands, making it compatible with most global mobile network operators.
