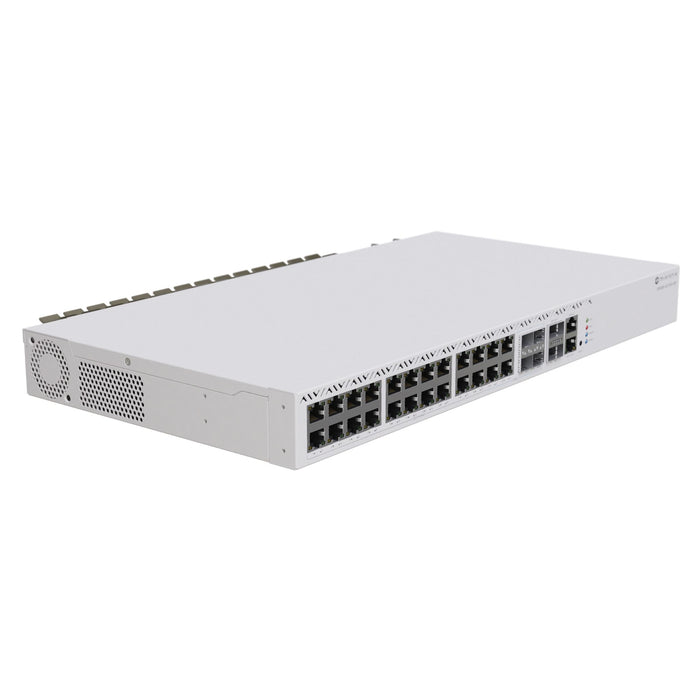

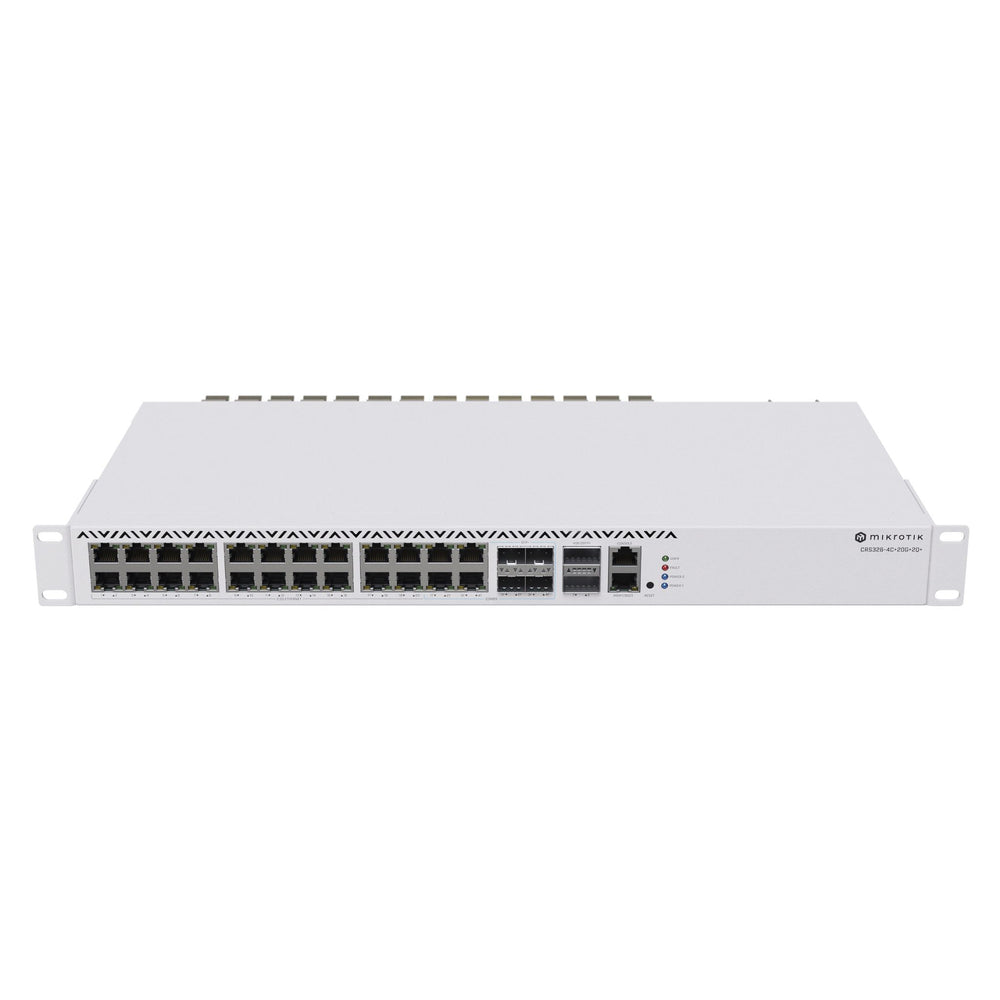

MikroTik CloudRouterSwitch 326-4C+20G+2Q+RM (RouterOS L6)
The CRS326 is an affordable solution designed to meet the demands of modern professional environments. With 20x 2.5 Gigabit Ethernet ports, 4x COMBO ports (which can function as additional 2.5 Gigabit Ethernet ports or 10G SFP+ interfaces), and 2x 40 Gigabit QSFP+ cages, this switch offers excellent port-density and ultra-fast fiber connectivity.
Powered by the Marvell Prestera switch-chip with a dedicated CPU, the CRS326 can handle various tasks seamlessly, including VLAN configuration, Jumbo frames, link aggregation, ACL rules, and even Layer3 routing.

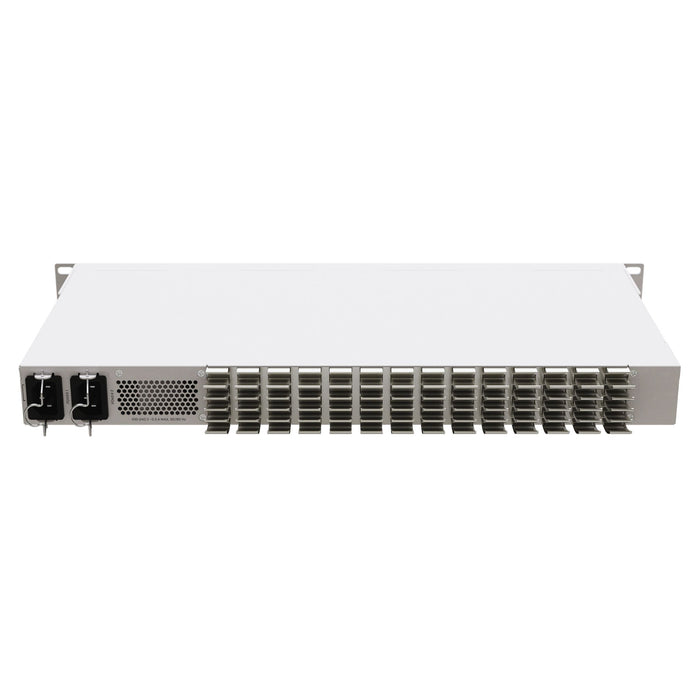

For added reliability, the CRS326 features dual-redundant power supplies and an extra 100 Mbps Ethernet port for management purposes. Additionally, it comes with everything needed for secure rackmount installation in a standard 19” rack. Future-proof your network with the CRS326.
Tech Specs
Click here for the CRS326-4C+20G+2Q+RM datasheet.
| Device Specifications | |
|---|---|
| Specifications | |
| Product code | CRS326-4C+20G+2Q+RM |
| Architecture | MIPSBE |
| CPU | QCA9531 |
| CPU core count | 1 |
| CPU nominal frequency | 650 MHz |
| Switch chip model | 98DX8332 |
| RouterOS license | 6 |
| Operating System | RouterOS v7 |
| Size of RAM | 128 MB |
| Storage size | 32 MB |
| Storage type | FLASH |
| MTBF | Approximately 200'000 hours at 25°C |
| Tested ambient temperature | -20°C to 60°C |
| Suggested price | $999.00 |
| Powering | |
| Number of AC inputs | 2 |
| AC input range | 100-240 V |
| Number of PSU slots | 2 |
| Frequency (Hz) | 50-60 |
| Max power consumption | 70 W |
| Max power consumption without attachments | 51 W |
| Cooling type | 2 fans |
| Ethernet | |
| 10/100 Ethernet ports | 1 |
| Number of 2.5G Ethernet ports | 20 |
| Number of Combo 10G Ethernet / SFP+ ports | 4* (2.5G ETH / 10G SFP+) |
| Fiber | |
| Number of 40G QSFP+ ports | 2 |
| Peripherals | |
| Serial console port | RJ45 |
| Other | |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| Certification & Approvals | |
| Certification | CE, EAC, ROHS |
| IP | 20 |
FAQs
Q: What is the MikroTik CRS326-4C+20G+2Q+RM?
A: The MikroTik CRS326-4C+20G+2Q+RM is a 1U rackmount managed switch with 20 SFP ports, 4 combo SFP/1GbE ports, and 2 QSFP+ 40GbE uplinks, designed for high-capacity, low-latency enterprise networks.
Q: What network speeds does the CRS326-4C+20G+2Q+RM support?
A: It supports 1GbE on the SFP and combo ports and 40GbE on the QSFP+ uplinks, providing high-speed connectivity for servers, storage systems, and core network links.
Q: Can the MikroTik CRS326-4C+20G+2Q+RM handle VLANs and advanced routing?
A: Yes, it runs RouterOS v7 or SwitchOS and supports Layer 3 routing, VLANs, link aggregation, QoS, and monitoring, allowing flexible and secure network management.
Q: How is the CRS326-4C+20G+2Q+RM powered and installed?
A: The switch uses 48–57V DC input power and a 1U rackmount form factor, making it suitable for server racks, data centers, or enterprise network cabinets.
Q: What management features does the MikroTik CRS326-4C+20G+2Q+RM provide?
A: It offers network monitoring, traffic shaping, firewall rules, spanning tree, and full RouterOS or SwitchOS management, giving complete control over high-speed network performance and security.
