MikroTik Gigabit Passive Ethernet Network PoE Injector

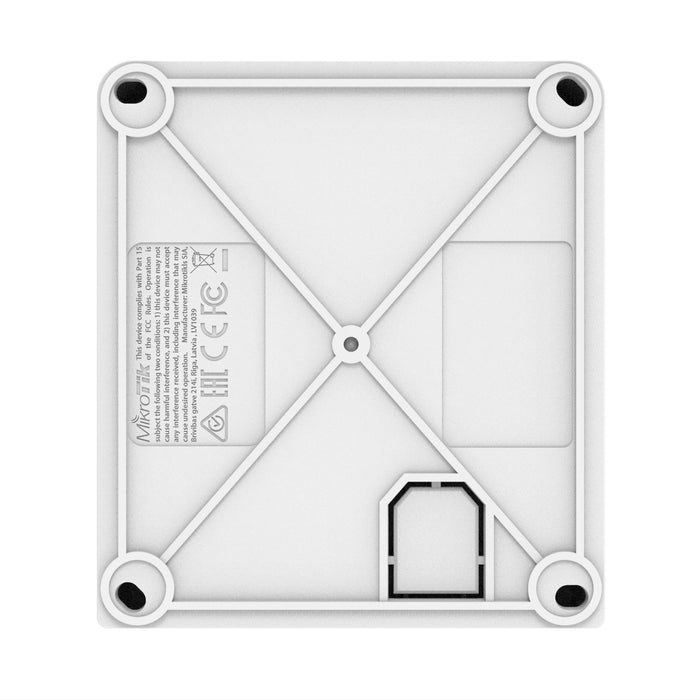

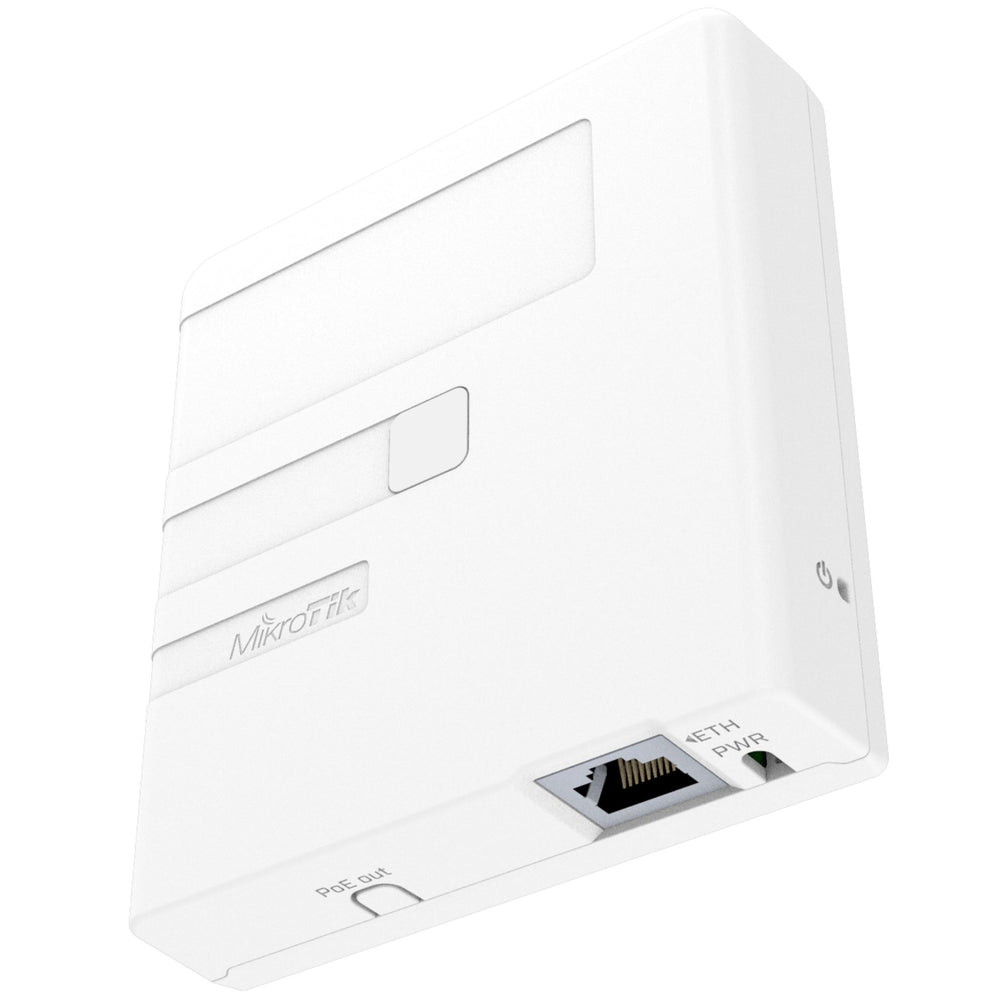

The MikroTik GPEN11 is an outdoor power injector designed to be wall-mounted, powered by 12-57V DC and providing passive PoE output. Its unique design allows for vertical cable installation or wall routing.
Tech Specs
| Device Specifications | |
|---|---|
| Specifications | |
| Product code | GPEN11 |
| Tested ambient temperature | -40..+70°C |
| Suggested price | $14.00 |
| Powering | |
| Number of DC inputs | 1 (DC jack) |
| DC jack input voltage | 12–57 V |
| Cooling type | Passive |
| PoE-out | |
| PoE-out ports | Ether2 |
| PoE out | Passive PoE |
| Low voltage PoE-Out current limit | 2 A |
| Max total out (A) | 2 A |
| Ethernet | |
| 10/100/1000 Ethernet ports | 2 |
| 1G Ethernet ports with PoE-out | 1 |
| Certification & Approvals | |
| Certification | CE, EAC, ROHS |
FAQs
Q1: What is the MikroTik GPEN11?
A: The GPEN11 is a wall-mountable passive PoE injector designed to power uplink devices in a Gigabit Passive Ethernet (GPEN) setup.
Q2: What power input range does the GPEN11 accept?
A: It supports a DC input voltage range from 12 V to 57 V.
Q3: How many Ethernet ports does the GPEN11 have, and which port provides PoE?
A: It has 2 × 10/100/1000 (Gigabit) Ethernet ports, and PoE is delivered out via the Ether2 port.
Q4: What is the maximum current available for PoE output?
A: The GPEN11 can supply up to 2 A on its PoE-output port.
Q5: What environmental conditions can the GPEN11 operate in?
A: It has been tested to work reliably between –40 °C and +70 °C, making it suitable for a wide range of indoor and sheltered conditions.
