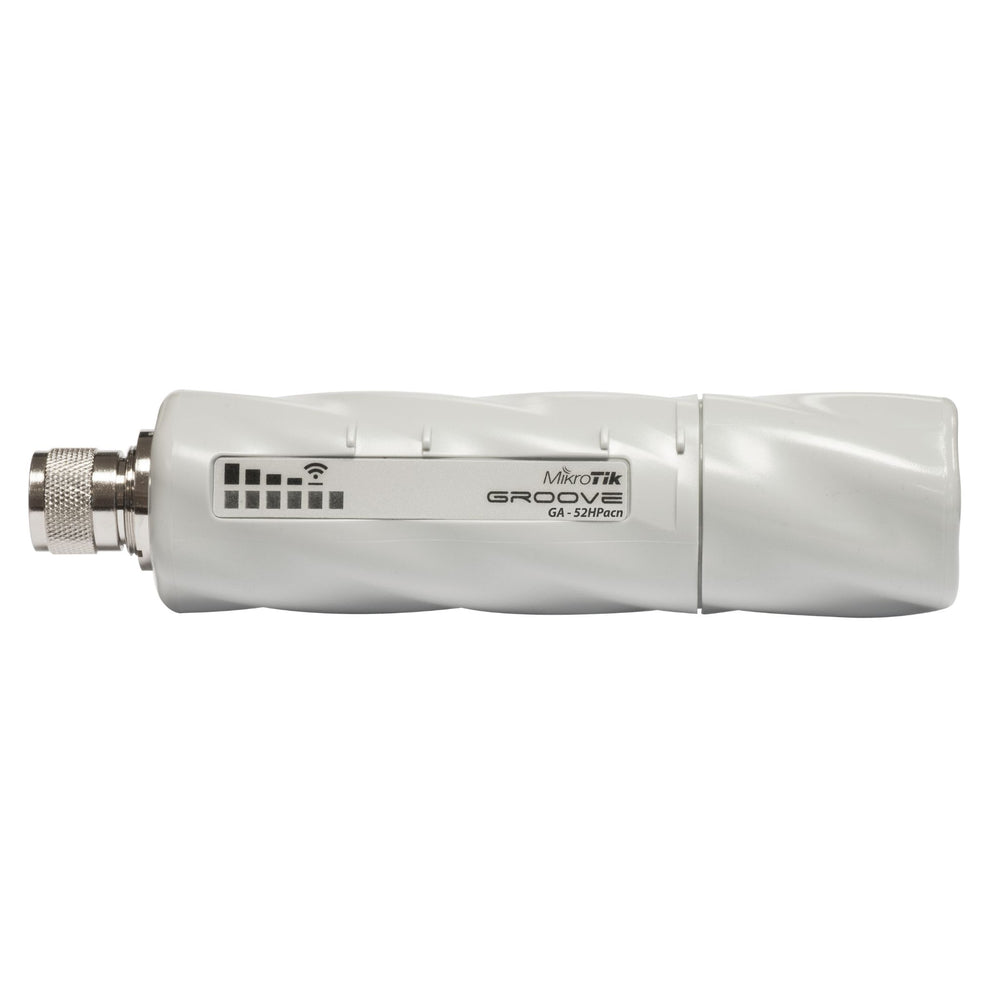

MikroTik Groove GA-52HPacn 2/5GHz Radio with Omni Antenna

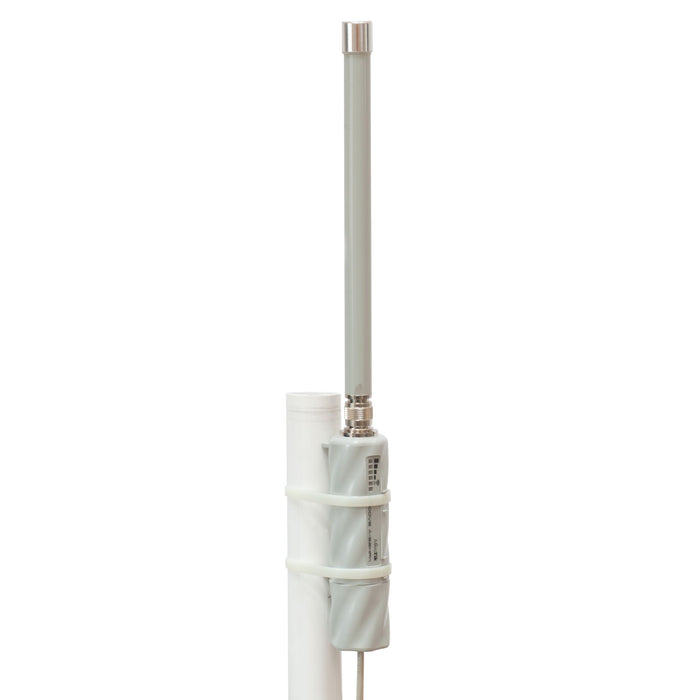

MikroTik's Groove A series radio features 802.11ac and a waterproof design. Choose between 2.4GHz or 5GHz with channel widths up to 80MHz. Comes with an n-type Dual Band Omni antenna with 6dBi at 2.4GHz and 8dBi at 5GHz or connect your own antenna. Can be used for CPE, PtP, or AP mode.
Tech Specs
Click here for the RBGrooveGA-52HPacn datasheet.
| Device Specifications | |
|---|---|
| General | |
| Product code | RBGrooveGA-52HPacn |
| Suggested price | $99.00 |
| Architecture | MIPSBE |
| CPU | QCA9556 |
| CPU core count | 1 |
| CPU nominal frequency | 720 MHz |
| Dimensions | 177 x 44 x 44 mm |
| RouterOS license | 4 |
| Operating System | RouterOS |
| Size of RAM | 64 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 100'000 hours at 25°C |
| Tested ambient temperature | -40°C to 70°C |
| Powering | |
| Number of DC inputs | 1 (PoE-IN) |
| Max power consumption | 5 W |
| PoE in | Passive PoE |
| Cooling type | Passive |
| PoE in input Voltage | 10-30 V |
| Wireless Specifications | |
| Max data rate (2.4/5 GHz) | 433 Mbit/s |
| Number of chains | 1 |
| Standards | 802.11b/g/n, 802.11a/n/ac |
| Antenna gain (dBi) | 6 |
| Chip model | QCA9889 |
| Generation | Wi-Fi 5 |
| Ethernet | |
| 10/100/1000 Ethernet ports | 1 |
| Other | |
| PCB temperature monitor | Yes |
| Voltage monitor | Yes |
| Beeper | Yes |
| Certification | CE, FCC, IC, EAC, ROHS |
| IP | IP55 |
FAQs
Q1: What is the MikroTik RBGrooveGA‑52HPacn designed for?
A: It’s a small, weather‑proof outdoor access point / CPE / backbone device running RouterOS, built for 2.4 GHz and 5 GHz wireless with a built‑in omni antenna.
Q2: What are the hardware specifications?
A: It has a 1 × 720 MHz CPU, 64 MB RAM, 16 MB Flash storage, single‑chain Wi‑Fi, and one Gigabit Ethernet port. Rated for –40 °C to +70 °C.
Q3: What wireless capabilities does the GrooveGA‑52HPacn support?
A: It supports 802.11a/b/g/n/ac on 2.4 GHz or 5 GHz, with up to 433 Mbps data rate (1×1 MIMO) and selectable channel widths (including 80 MHz).
Q4: How is the device powered?
A: It uses passive PoE-in, accepting 10–30 V on its DC input and consuming up to 5 W.
Q5: What comes included in the package?
A: The package includes the Groove unit, a 6 dBi omni antenna for 2.4 GHz (8 dBi for 5 GHz), a Gigabit PoE injector, a 24 V 0.38 A power adapter, and mounting loops.
