MikroTik LHGG LTE6 kit
Please contact us for stocking information.

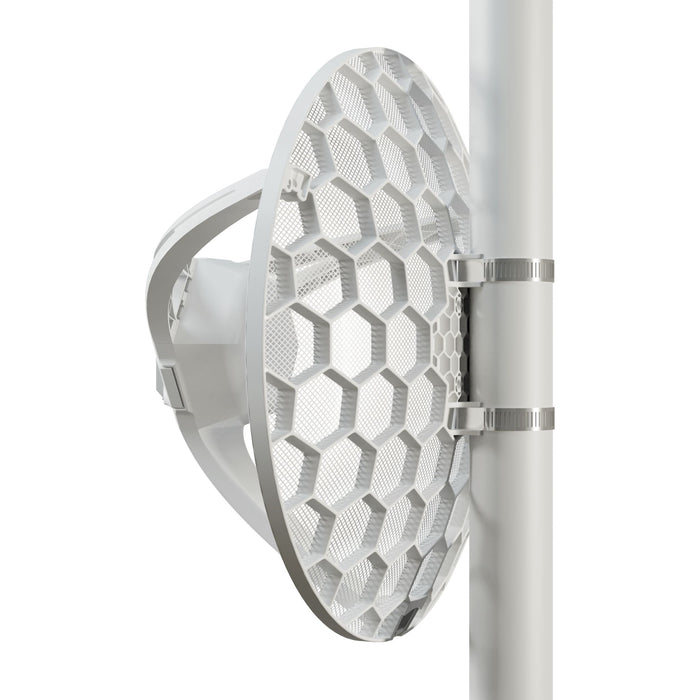

The LHGG LTE6 kit offers reliable internet as a last-mile solution with a 17 dBi antenna and Cat6 LTE modem. It can be easily mounted on a pole, mast, or roof for continuous connection. The updated version includes Gigabit Ethernet and a Cat6 LTE modem for improved performance at a lower cost. The sleek and weatherproof design can withstand harsh conditions, resulting in lower maintenance costs. The high-gain antenna supports various LTE bands, providing coverage worldwide.
Tech Specs
Click here for the MikroTik LHGG LTE6 kit datasheet.
| Device Specifications | |
|---|---|
| Specifications | |
| Product code | LHGGR&FG621-EA |
| Architecture | ARM 64bit |
| CPU | 88F3720 |
| CPU core count | 2 |
| CPU nominal frequency | 800 MHz |
| RouterOS license | 3 |
| Operating System | RouterOS v7 |
| Size of RAM | 256 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
| Suggested price | $179.00 |
| Powering | |
| Number of DC inputs | 1 (PoE-IN) |
| Max power consumption | 8 W |
| Max power consumption without attachments | 8 W |
| PoE in | 802.3af/at |
| Cooling type | Passive |
| PoE in input Voltage | 12-57 V |
| Mobile | |
| 3G Category | R8 (42.2Mbps Downlink, 11.2Mbps Uplink) |
| 3G bands | 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz) |
| LTE Category | 6 (300Mbit/s Downlink, 50Mbit/s Uplink) |
| MIMO DL | 2x2 |
| MIMO UL | 1x1 |
| LTE FDD bands | 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 28 (700MHz) |
| LTE TDD bands | 38 (2600MHz) / 40 (2300MHz) / 41 (2500MHz) |
| TAC | 86335904 |
| Ethernet | |
| 10/100/1000 Ethernet ports | 1 |
| Peripherals | |
| Number of SIM slots | 1 Modem (Micro SIM) |
| MiniPCI-e slots | 1 |
| Other | |
| Mode button | Yes |
| Certification & Approvals | |
| Certification | CE, EAC, ROHS |
| IP | 54 |
FAQs
Q: What is the MikroTik LHGGR & FG621-EA?
A: It’s a high-gain 17 dBi outdoor LTE-Cat 6 kit combining a parabolic LHG antenna with a built-in FG621-EA modem for reliable, long-range mobile internet.
Q: What LTE performance and bands does the LHGGR LTE6 kit support?
A: It supports LTE Category 6 with up to 300 Mb/s downlink and 50 Mb/s uplink, across FDD bands (1, 3, 5, 7, 8, 20, 28) and TDD bands (38, 40, 41).
Q: What ports and interfaces are available on the LHGGR & FG621-EA?

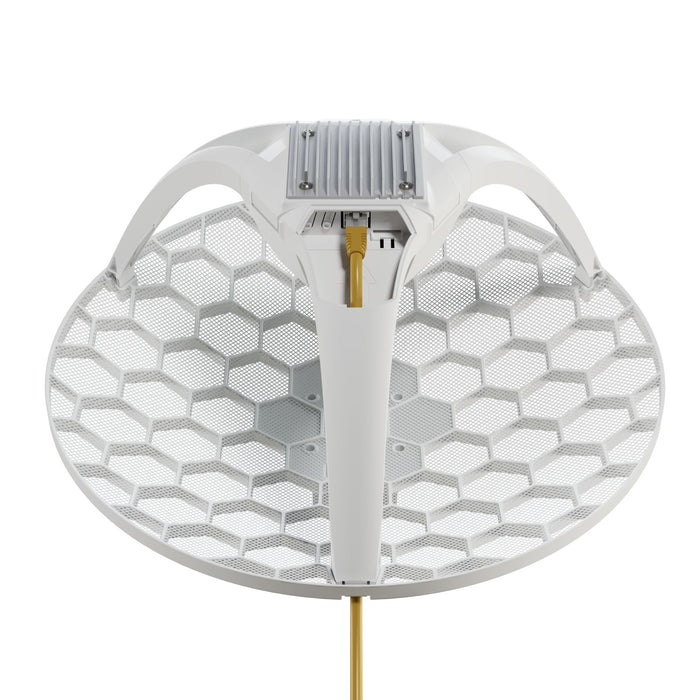

A: The device has one Gigabit Ethernet port (RJ-45), a micro-SIM slot, and a mini-PCIe slot for expansion.
Q: How is the MikroTik LHGGR LTE6 Kit powered?
A: It is powered via PoE (802.3af/at) using a single DC input and draws up to 8 W. Passive cooling helps maintain stable performance.
Q: How durable is this LTE antenna unit, and what are its environmental limits?
A: The unit has an IP54-rated weatherproof enclosure, and it is designed to operate from –40 °C to +70 °C, making it well-suited for harsh outdoor deployments.
Q: What software features does the LHGGR & FG621-EA provide?
A: It runs RouterOS v7 (License Level 3), enabling advanced routing, NAT, firewall, LTE signal monitoring, and more.
