MikroTik LtAP mini LTE kit (2024)
Please contact us for stocking information.

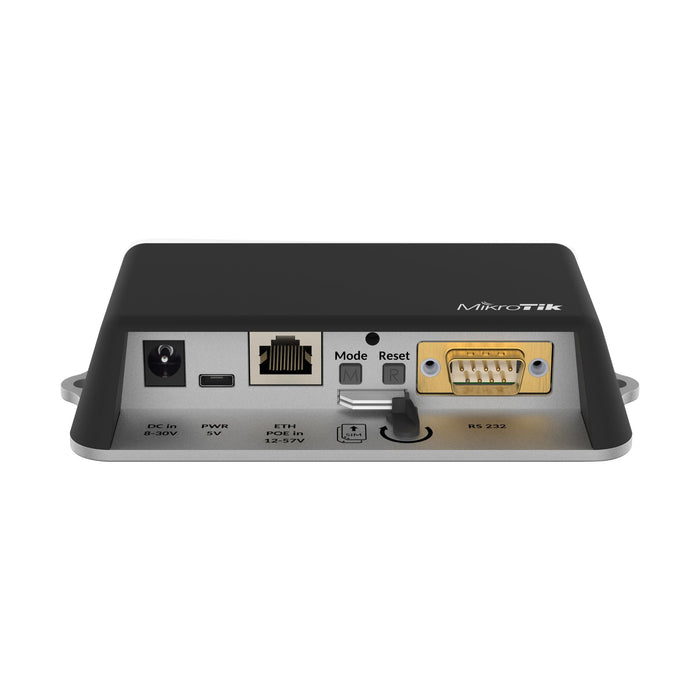

The MikroTik LtAP mini LTE kit is a highly efficient wireless access point developed for reliable internet connectivity on-the-go. It is built with a sturdy casing and a wall mounting kit, allowing for easy installation in any environment.
Equipped with two SIM slots, this device enables seamless switching between cellular providers and has integrated GPS support, making it ideal for tracking vehicles such as cars, buses, or trains. Its versatile connectivity options include an Ethernet port, a 2.4 GHz wireless radio, and an RS232 serial port for debugging. It can be powered through various methods, including a DC jack, passive PoE-in, or microUSB.
Users have even reported successful use of a portable power bank throughout the day. The new LTE card offers competitive pricing and supports popular LTE bands, including the B28 band. It features two internal antennas with u.FL connectors, allowing for the addition of external LTE antennas to improve coverage.
Tech Specs
Click here for the MikroTik LtAP mini LTE kit datasheet.
| Device Specifications | |
|---|---|
| Specifications | |
| Product code | RB912R-2nD-LTm&EC200A-EU |
| Architecture | MIPSBE |
| CPU | QCA9531 |
| CPU core count | 1 |
| CPU nominal frequency | 650 MHz |
| RouterOS license | 4 |
| Operating System | RouterOS v7 |
| Size of RAM | 64 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 100'000 hours at 25°C |
| Tested ambient temperature | -40°C to 70°C |
| Suggested price | $99.00 |
| Powering | |
| MicroUSB input Voltage | 5 V |
| Number of DC inputs | 3 (DC jack, MicroUSB, PoE-IN) |
| DC jack input Voltage | 8-30 V |
| Max power consumption | 8 W |
| PoE in | 802.3af/at |
| Cooling type | Passive |
| PoE in input Voltage | 12-57 V |
| Mobile | |
| 2G Category | Class12 |
| 2G bands | 8 (900MHz) / 3 (1800MHz) |
| 3G Category | R7 (21Mbps Downlink, 5.76Mbps Uplink) |
| 3G bands | 5 (850MHz) / 8 (900MHz) / 1 (2100MHz) |
| LTE Category | 4 (150Mbps Downlink, 50Mbps Uplink) |
| MIMO DL | 2x2 |
| MIMO UL | 1x1 |
| LTE FDD bands | 20 (800MHz) / 8 (900 MHz) / 3 (1800MHz) / 1 (2100MHz) / 7 (2600MHz) / 5 (850MHz) / 28 (700MHz) |
| LTE TDD bands | 40 (2300MHz) / 38 (2600MHz) / 41n (2500MHz) |
| TAC | 86314105 |
| Wireless specifications | |
| Wireless 2.4 GHz Max data rate | 300 Mbit/s |
| Wireless 2.4 GHz number of chains | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n |
| Antenna gain dBi for 2.4 GHz | 1.5 |
| Wireless 2.4 GHz chip model | QCA9531 |
| Wireless 2.4 GHz generation | Wi-Fi 4 |
| Ethernet | |
| 10/100 Ethernet ports | 1 |
| Peripherals | |
| Number of SIM slots | 2 Modem (Mini SIM) |
| MiniPCI-e slots | 1 |
| Serial console port | RS232 |
| Other | |
| Mode button | Yes |
| GNSS standards | GPS |
| GPS RF connector type | uUFL |
| Certification & Approvals | |
| Certification | CE, E-MARK, EAC, ROHS |
| IP | IP54 |
FAQs
Q: What is the MikroTik RB912R-2nD-LTm & EC200A-EU kit used for?
A: This kit is designed for mobile, vehicular or remote outdoor connectivity applications. It combines a 2.4 GHz wireless access point with built-in LTE cellular modem capabilities, GPS, and rugged weather-proof housing—ideal for moving vehicles, remote monitoring or IoT gateway use.
Q: What wireless and cellular standards does the RB912R-2nD-LTm & EC200A-EU support?
A: The device supports IEEE 802.11 b/g/n on the 2.4 GHz band (dual-chain), with up to ~300 Mbps wireless throughput. On the cellular side, it includes an LTE Cat 4 modem supporting multiple LTE bands, 3G and 2G fallback, giving versatile mobile connectivity.
Q: What ports, SIM and expansion features are included in the kit?
A: It offers one 10/100 Mbps Ethernet port for wired LAN access, two mini-SIM slots for cellular redundancy, one miniPCI-e slot for modem expansion, a Micro-USB port and an RS232 serial console. It also features built-in GPS for location tracking.
Q: How is the RB912R-2nD-LTm powered and what are the installation/cabling flexibility?
A: The kit supports multiple power input methods: passive or active PoE via Ethernet (12–57 V), DC jack input (8–30 V) and Micro-USB (5 V). It is built for outdoor use, with an IP-rated weather-proof enclosure and temperature operation from 40 °C to +70 °C.
Q: In what deployment scenarios is the RB912R-2nD-LTm & EC200A-EU ideal and how should it be mounted?
A: It is particularly suitable for installation on vehicles (cars, buses), outdoor cabinets or towers where mobile broadband and WiFi uplink or local coverage are needed. With its rugged build and GPS, it supports tracking, telematics, mobile hotspots, or remote site gateways. Mounting can be wall or pole style depending on environment.
