MikroTik MiniPCI-e 2G/3G/4G/LTE card
The R11e-LTE6 from MikroTik is an LTE CAT6 modem that delivers up to 300 Mbps downlink and 50 Mbps uplink data rate with 3G and 2G network fallback. CAT6 also features carrier aggregation and allows the device to use multiple bands at the same time. This miniPCIe form factor modem is designed for international bands. It can be used with any MikroTik products that have a miniPCIe slot (excluding RB800 and RB4011).
Compatible with mobile bands 1, 2, 3, 5, 7, 8, 12, 17, 20, 25, 26, 38, 39, 40 and 41n
Tech Specs
| Device Specifications | |
|---|---|
| General | |
| Product Code | R11e-LTE6 |
| Suggested Price | $109.00 |
| MTBF | Approximately 200,000 hours at 25°C |
| Tested Ambient Temperature | -30°C to 70°C |
| Powering | |
| Max Power Consumption | 5 W |
| Mobile | |
| 2G Category | Class12 |
| 2G Bands | 2 (1900MHz) 3 (1800MHz) 5 (850MHz) 8 (900MHz) |
| 3G Category | R7 (21Mbps Downlink, 5.76Mbps Uplink) R8 (42.2Mbps Downlink, 5.76Mbps Uplink) |
| 3G Bands | 1 (2100MHz) 2 (1900MHz) 5 (850MHz) 8 (900MHz) |
| LTE Category | 6 (300Mbit/s Downlink, 50Mbit/s Uplink) |
| LTE FDD Bands | 1 (2100MHz) 2 (1900MHz) 3 (1800MHz) 7 (2600MHz) 8 (900 MHz) 20 (800MHz) 5 (850MHz) 12 (700MHz) 17 (700MHz) 25 (1900MHz) 26 (850MHz) |
| LTE TDD Bands | 38 (2600MHz) 40 (2300MHz) 39 (1900MHz) 41n (2500MHz) |
| TAC | 35666210 |
| Certification & Approvals | |
| Certification | CE, FCC, IC, ROHS |
| IP | IP00 |
FAQs
Q1: What is the MikroTik R11e-LTE6 used for?
A: The R11e-LTE6 is a miniPCIe LTE Cat 6 modem module used to add high-speed mobile broadband to MikroTik devices with a miniPCIe slot. It enables 4G connectivity for primary or backup WAN links.
Q2: What data speeds does the R11e-LTE6 support?
A: As an LTE Category 6 modem, it supports up to 300 Mbps download and 50 Mbps upload, depending on network conditions and carrier support.
Q3: What frequency bands does the modem support?
A: It supports a wide selection of LTE FDD and TDD bands commonly used worldwide, along with 3G and 2G fallback, allowing deployment in many regions and network environments.
Q4: What hardware interfaces and antenna connections does it use?

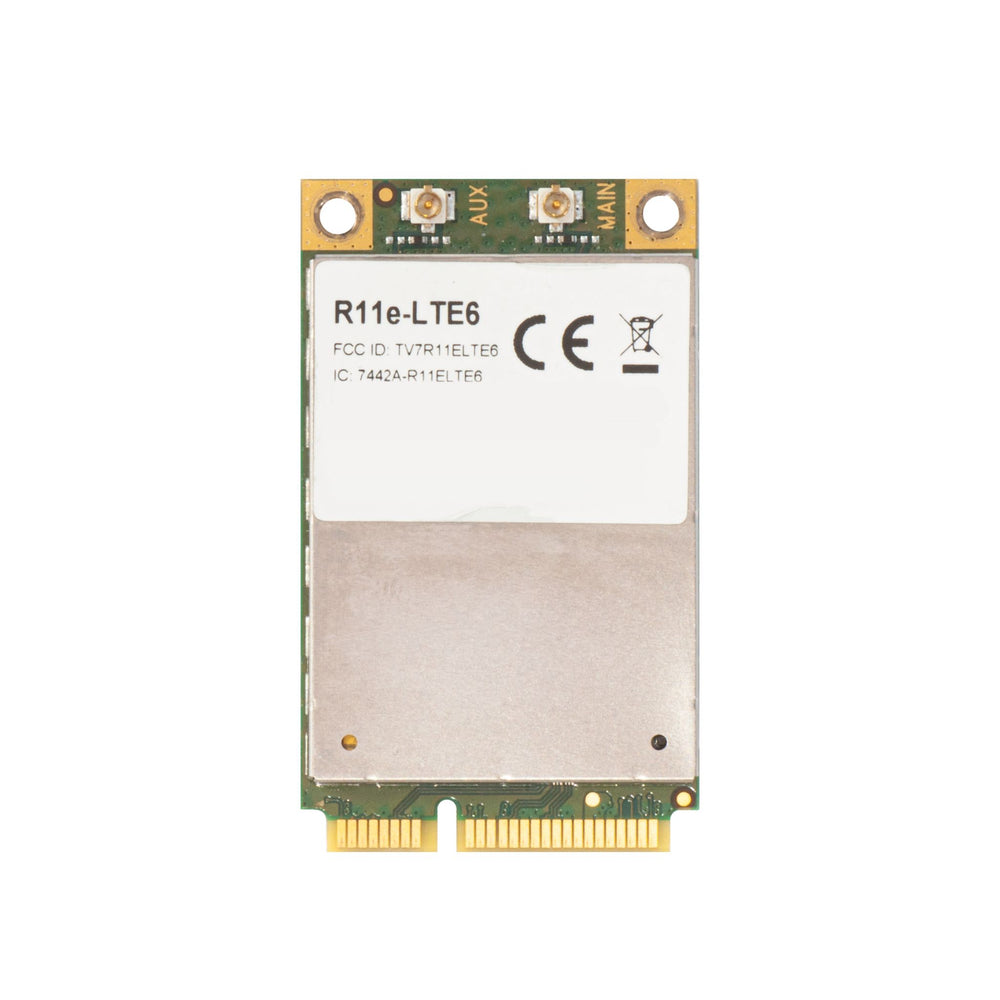

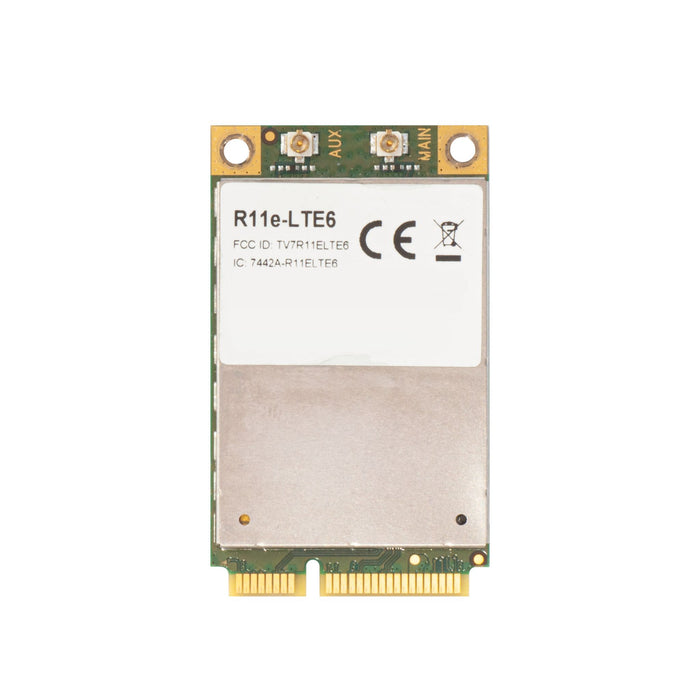

A: The card uses a standard miniPCIe interface and includes two U.FL antenna connectors for MIMO LTE operation. These are typically connected to external LTE antennas for better signal strength.
Q5: What are the power and operating requirements?
A: The R11e-LTE6 has low power consumption (around 5 W) and is rated for wide operating temperatures, making it suitable for both indoor and rugged outdoor devices that support miniPCIe modems.
