MikroTik NetBox 5 ax
Please contact us for stocking information.

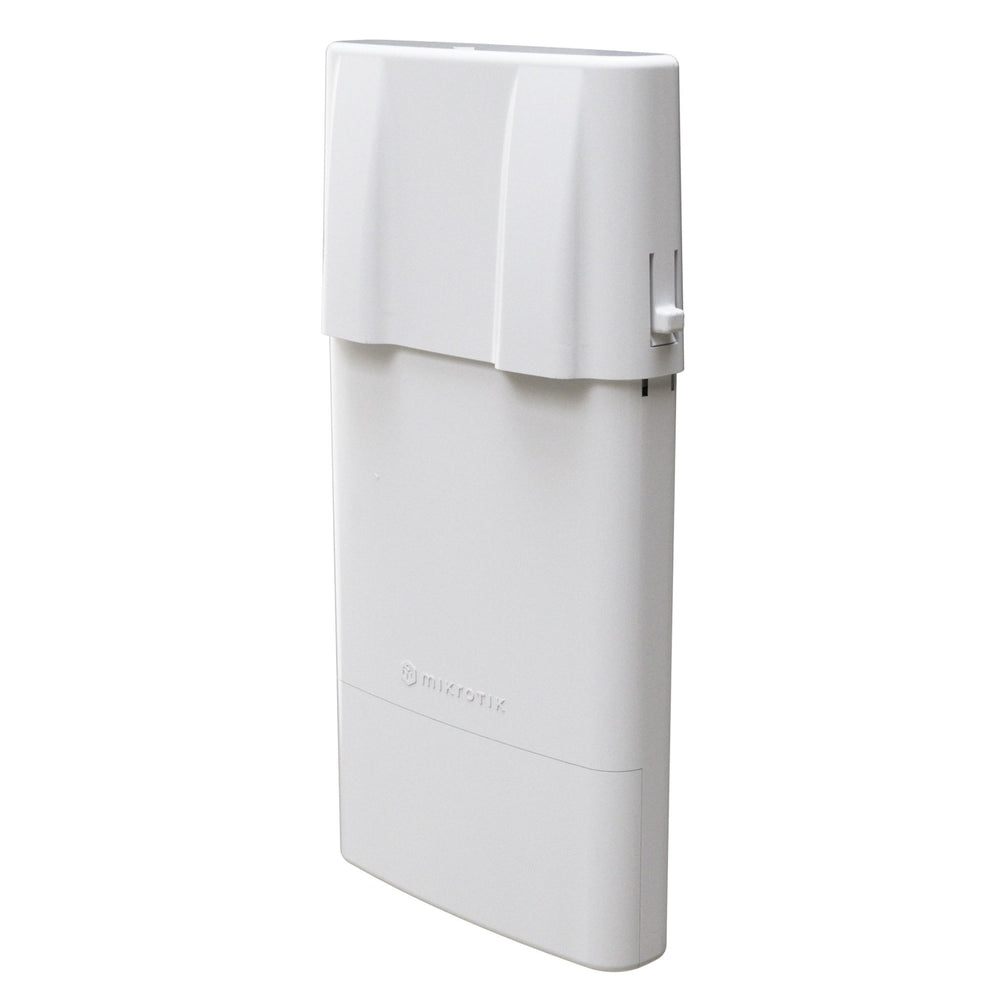

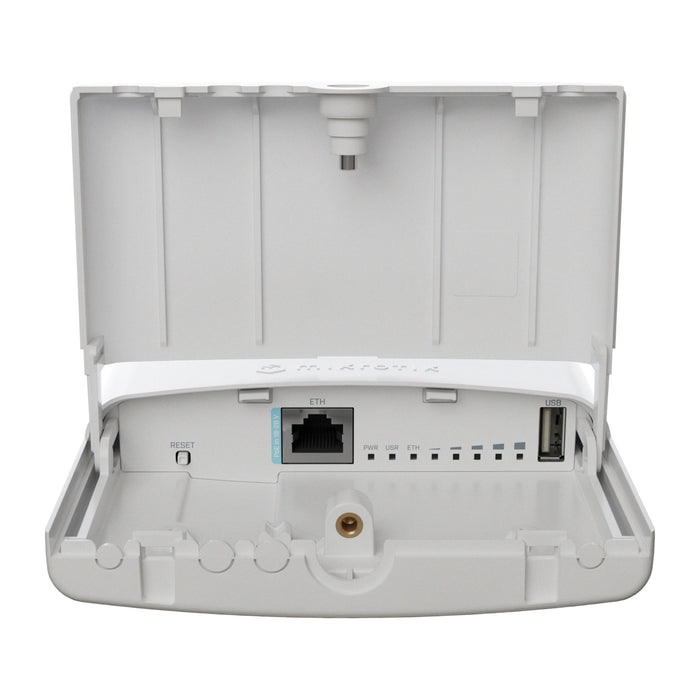

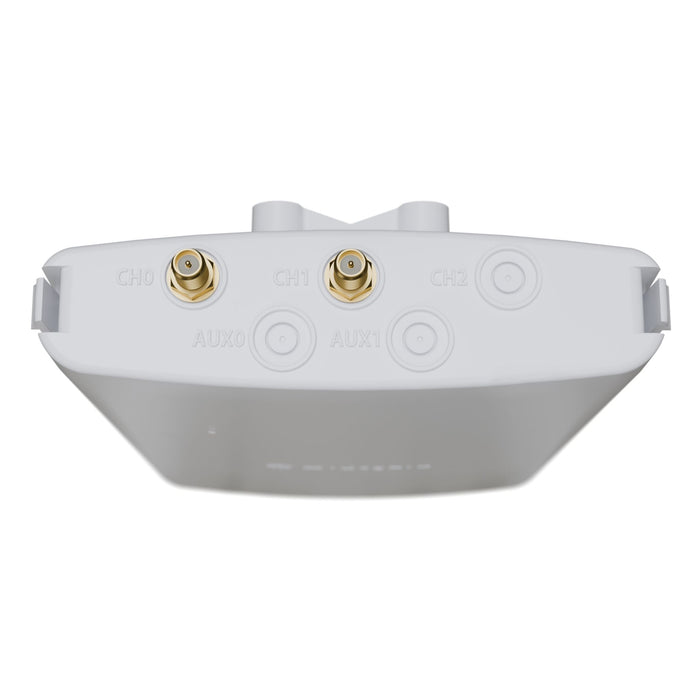

Powerful outdoor device with dual-chain functionality and multiple roles: AP/CPE/Point-to-point. Comes with a strong 5GHz WiFi 6 radio and SMA connectors. Includes a modern dual-core Qualcomm Maple CPU, 256MB RAM, USB port, and Gigabit Ethernet port with PoE-in. Durable and weatherproof outdoor enclosure.
Click here for the MikroTik NetBox 5 ax datasheet.
Tech Specs
| Device Specifications | |
|---|---|
| Specifications | |
| Product code | L11UG-5HaxD-NB |
| Architecture | ARM |
| CPU | IPQ-5010 |
| CPU core count | 2 |
| CPU nominal frequency | 800 MHz |
| RouterOS license | 4 |
| Operating System | RouterOS v7 |
| Size of RAM | 256 MB |
| Storage size | 128 MB |
| Storage type | NAND |
| MTBF | Approximately 200,000 hours at 25°C |
| Tested ambient temperature | -40°C to 70°C |
| Suggested price | $109.00 |
| Powering | |
| Number of DC inputs | 1 (PoE-IN) |
| Max power consumption | 15 W |
| Max power consumption without attachments | 6 W |
| PoE in | Passive PoE |
| Cooling type | Passive |
| PoE in input voltage | 18–28 V |
| Wireless Specifications | |
| Wireless 5 GHz Max data rate | 2400 Mbit/s |
| Wireless 5 GHz number of chains | 2 |
| Wireless 5 GHz standards | 802.11a/n/ac/ax |
| Wireless 5 GHz chip model | QCN-6102 |
| Wireless 5 GHz generation | Wi-Fi 6 |
| Ethernet | |
| 10/100/1000 Ethernet ports | 1 |
| Peripherals | |
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB type A |
| Max USB current | 1.5 A |
| Other | |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| Beeper | Yes |
| Certification & Approvals | |
| Certification | CE, FCC, IC, EAC, ROHS |
| IP | 54 |
| Wireless Transmit & Receive Sensitivity (5 GHz) | |
| 6MBit/s: Transmit 28 dBm / Receive -96 dBm 54MBit/s: Transmit 26 dBm / Receive -80 dBm MCS0: Transmit 28 dBm / Receive -96 dBm MCS7: Transmit 25 dBm / Receive -75 dBm MCS9: Transmit 23 dBm / Receive -70 dBm MCS11: Transmit 20 dBm / Receive -67 dBm |
|
FAQs
Q: What is the MikroTik L11UG‑5HaxD‑NB used for?
A: The L11UG‑5HaxD‑NB is an outdoor CPE or access point designed for long‑range 5 GHz wireless links. It supports WiFi 6 and is ideal for point‑to‑point or point‑to‑multipoint deployments in outdoor environments.
Q: What wireless standards and speeds does the L11UG‑5HaxD‑NB support?
A: It supports IEEE 802.11a/n/ac/ax on the 5 GHz band with dual‑chain MIMO and offers maximum data rates up to approximately 2400 Mbps under optimal conditions.
Q: How is the L11UG‑5HaxD‑NB powered and what are its hardware features?
A: The device accepts passive PoE‑in (18–28 V) and a DC jack input (12–28 V). It includes one Gigabit Ethernet port, one USB‑A port, 256 MB RAM, 128 MB NAND storage, and is built to run on RouterOS v7 with licence level 4.
Q: What are the environmental and mounting specifications of the L11UG‑5HaxD‑NB?
A: It is built for outdoor use with an operating temperature range from –40 °C to +70 °C. It features a weatherproof enclosure, MMCX (or RP‑SMA depending on variant) antenna connectors, and supports mounting on poles or DIN rails.
Q: Can the L11UG‑5HaxD‑NB be integrated into managed wireless networks?
A: Yes — it supports advanced network management via RouterOS and can be used for custom‑build outdoor AP or CPE setups. It is suitable for engineering long‑range links, outdoor WiFi expansion, or IoT edge deployments.
