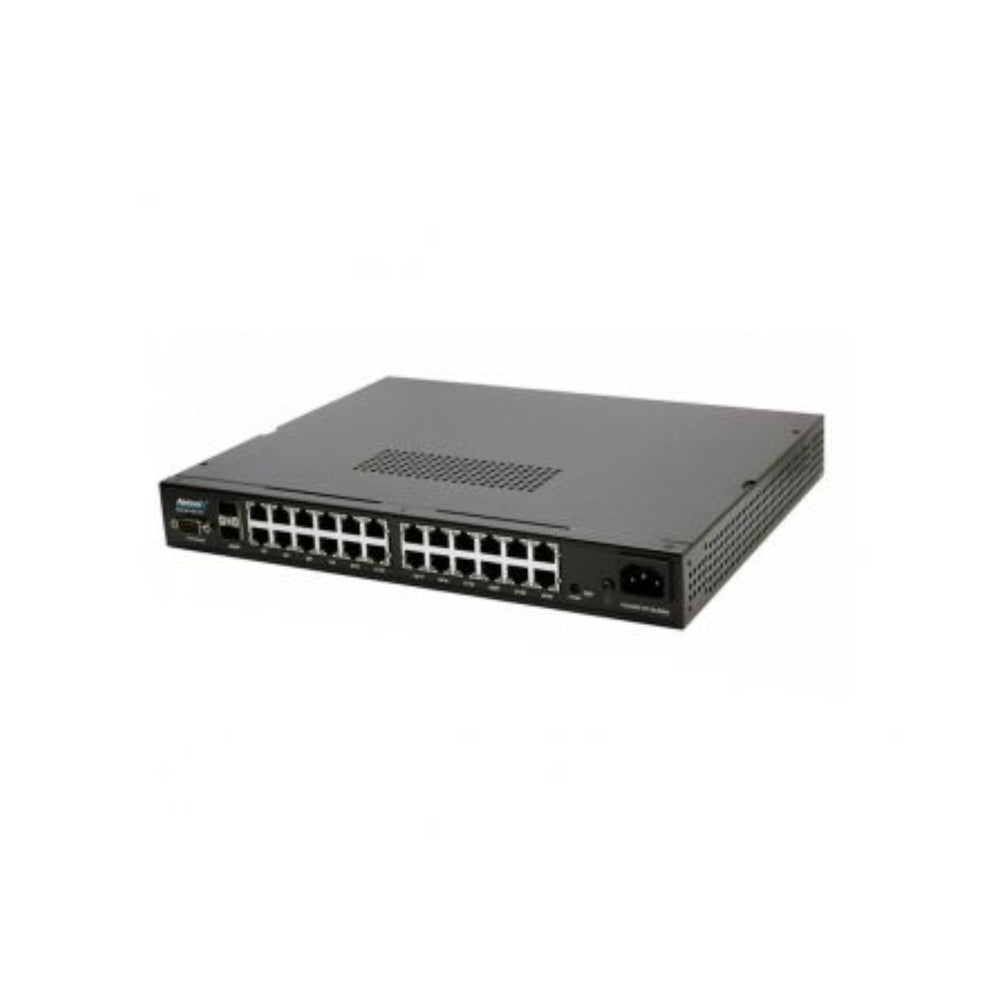

Netonix 26 Port Gigabit WISP Switch | No Current Sensor
The Netonix WS-26-400-AC-NCS is a 26-port WISP switch engineered specifically for the wireless ISP industry, offering a rugged chassis and an extended operating temperature range for reliable performance in harsh environments. Designed with simplicity and power in mind, it features an intuitive user interface that delivers the essential software functionality WISPs need to manage and scale their networks effectively.
Ideal for tower or network edge deployments, the WS-26-400-AC-NCS ensures seamless integration into outdoor and indoor setups. An optional rack mount kit is available for flexible installation in rack-based systems.
Built for durability, scalability, and performance, the Netonix WS-26-400-AC-NCS is a trusted choice for demanding WISP networks.
Please note: This model has no current sensor
Tech Specs
| Device Specifications | |
|---|---|
| Manufactured / Assembled | North America |
| Standard 19” rack mount / Desktop / Wall mount | YES |
| Dimensions (W x D x H) | 343 mm x 273 mm x 44 mm |
| Weight | <4 kg |
| Power Input | 210-230 & 110-120 VAC |
| Chassis Earth Ground Lug | YES |
| Max. Power Consumption | 400 Watts |
| Intelligent Forced Air Cooling With Fan RPM Monitoring | YES |
| Switch Core and PHYs | Vitesse |
| Processor | MIPS 24K 416 MHz |
| System Memory | 128 MB |
| Flash Storage | 16 MB |
| Total Non-Blocking Line Rate | 26 Gbps |
| Certifications | CE, FCC, IC |
| Operating Temperature | -25 to 55°C (-13 to 131° F) |
| Operating Humidity | 5 to 95% Non-Condensing |
| Console Port | RS-232 |
| Ethernet Ports | 24 x 10/100/1000 Ethernet Ports 2 x SFP Ports |
| Passive POE Configured Per Port via UI / CLI | 24V 0.75A pins 4,5(+) 7,8(-) 48V 0.75A pins 4,5(+) 7,8(-) 24VH 1.5A pins 1,2,4,5(+) 3,6,7,8(-) 48VH 1.5A pins 1,2,4,5(+) 3,6,7,8(-) |
| POE Out Voltage Range | 50 VDC / 24 VDC |
| Passive POE Current Sensors Per Port | YES |
| ESD Rating | 24 kV Air / 24 kV Contact |
FAQs
Q1: What is the Netonix WS‑26‑400‑AC‑NCS and what is it used for?
A: The Netonix WS‑26‑400‑AC‑NCS is a managed 26‑port Gigabit PoE switch designed to deliver high‑speed data and up to 400 W of PoE power across multiple network devices. It’s ideal for enterprise, wireless ISP (WISP), surveillance, and high‑density PoE deployments.
Q2: How many PoE ports does the WS‑26‑400‑AC‑NCS have and what power budget does it support?
A: This switch provides twenty‑six Gigabit Ethernet ports with PoE capability, backed by a 400 W total PoE budget, enabling flexible power distribution for a large number of PoE‑powered devices such as wireless access points, IP cameras, and VoIP phones.
Q3: What power source does the WS‑26‑400‑AC‑NCS require?
A: The WS‑26‑400‑AC‑NCS is powered from AC mains, making it suitable for network closets, server rooms, or rack installations where stable AC power is readily available.
Q4: What managed networking features are available on the WS‑26‑400‑AC‑NCS?
A: This switch includes managed features such as VLAN support, Quality of Service (QoS) traffic prioritisation, SNMP monitoring, and detailed configuration options to help optimise network performance and control across large network topologies.
Q5: What physical and operational features make the WS‑26‑400‑AC‑NCS suitable for professional networks?
A: It features a rugged chassis, status LEDs for link, activity, and PoE power, and support for standard rack‑mount installations. These qualities make the WS‑26‑400‑AC‑NCS dependable for enterprise, WISP, and demanding PoE network environments.
