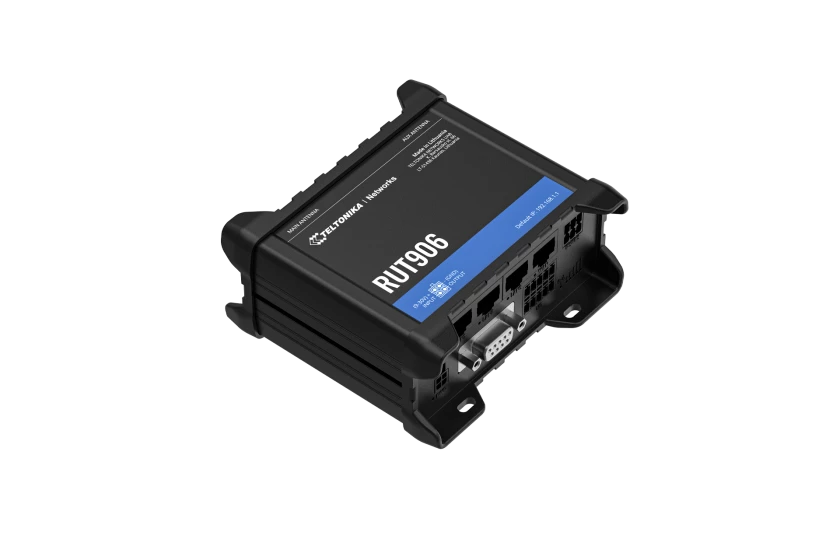

Teltonika RUT906
by Teltonika
Sold out
Excl. VAT:
£142.37
Incl. VAT:
£170.84
SKU RUT906-UK
Please contact us for stocking information.
The RUT906 is a cellular 4G router designed for industrial IoT applications. It includes support for RS232 and RS485 serial interfaces, as well as MQTT, BACnet, I/Os, and Ethernet. In addition, this router features GNSS and failsafe capabilities, such as Dual SIM, auto-failover, and backup WAN, to ensure reliable connectivity.
Tech Specs
Click here for the Teltonika RUT906 datasheet.
| Device Specifications | |
|---|---|
| Mobile | |
| Mobile module | 4G LTE Cat 4 up to 150 DL/50 UL Mbps; 3G up to 21 DL/5.76 UL Mbps; 2G up to 236.8 DL/236.8 UL kbps |
| 3GPP Release | Release 9 |
| Status | IMSI, ICCID, operator, operator state, data connection state, network type, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, MNC |
| SMS | SMS status, SMS configuration, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP |
| USSD | Supports sending and reading Unstructured Supplementary Service Data messages |
| Block/Allow list | Operator block/allow list (by country or separate operators) |
| Band management | Band lock, Used band status display |
| SIM idle protection service | Router can periodically switch to unused SIM to prevent block |
| SIM PIN code management | Set, change, or disable SIM PIN |
| APN | Auto APN |
| Bridge | Direct connection (bridge) between mobile ISP and device on LAN |
| Passthrough | Router assigns mobile WAN IP address to another device on LAN |
| Wireless | |
| Wireless mode | 802.11b/g/n (Wi-Fi 4), Access Point (AP), Station (STA) |
| Wi-Fi security | WPA2-Enterprise: PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w Protected Management Frames (PMF) |
| SSID/ESSID | SSID stealth mode and access control based on MAC address |
| Wi-Fi users | Up to 100 simultaneous connections |
| Wireless Connectivity Features | Wireless mesh (802.11s), fast roaming (802.11r), Relayd, BSS transition management (802.11v), radio resource measurement (802.11k) |
| Wireless MAC filter | Allowlist, blocklist |
| Wireless QR code generator | Once scanned, a user will automatically enter your network without login |
| TravelMate | Forward Wi-Fi hotspot landing page to a subsequent connected device |
| Ethernet | |
| WAN | 1 x WAN port 10/100 Mbps, IEEE 802.3, 802.3u, 802.3az standards, supports auto MDI/MDIX |
| LAN | 3 x LAN ports, 10/100 Mbps, IEEE 802.3, 802.3u standards, supports auto MDI/MDIX |
| Network | |
| Routing | Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing |
| Network protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On LAN (WOL), VXLAN |
| VoIP passthrough support | H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets |
| Connection monitoring | Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection |
| Firewall | Port forward, traffic rules, custom rules, TTL target customisation |
| Firewall status page | View all Firewall statistics, rules, and rule counters |
| Port management | View device ports, enable/disable, auto-configuration, change transmission speed, etc. |
| Network topology | Visual representation of connected devices |
| Hotspot | Captive portal, internal/external Radius server, Radius MAC authentication, SMS authorisation, SSO authentication, landing page, walled garden, user scripts, URL parameters, user groups, individual/group limitations, 9 default themes, upload/download customised themes |
| DHCP | Static/dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards |
| QoS / Smart Queue Management (SQM) | Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e |
| DDNS | Supported >77 service providers, others configurable manually |
| DNS over HTTPS | DNS queries routed over HTTPS for secure resolution |
| Network backup | Wi-Fi WAN, Mobile, VRRP, Wired; all can be used for automatic Failover |
| Load balancing | Balance Internet traffic over multiple WAN connections |
| SSHFS | Mount remote file system via SSH protocol |
| Traffic Management | Real-time monitoring, wireless signal charts, traffic usage history |
| Port Mirroring | Mirroring network traffic on Ethernet ports for monitoring and analysis |
| Security | |
| Authentication | Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator |
| Firewall | Preconfigured rules enabled via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T, NAT64 |
| Attack prevention | DDOS prevention (SYN flood, SSH, HTTP/HTTPS attacks), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL, FIN scan) |
| VLAN | Port and tag-based VLAN separation |
| Mobile quota control | Mobile data limit, customizable period, start time, warning limit, phone number |
| WEB filter | Block list for unwanted websites, allow list for permitted sites only |
| Access control | Flexible access control of SSH, Web interface, CLI, Telnet |
| Certificate Manager | Create CA, server, client, Let's Encrypt, SCEP certificates |
| VPN | |
| OpenVPN | Multiple clients and server simultaneously, 27 encryption methods |
| OpenVPN Encryption | DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256 |
| IPsec | XFRM, IKEv1, IKEv2; 14 encryption methods (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16) |
| GRE | GRE tunnel, GRE tunnel over IPsec support |
| PPTP, L2TP | Client/Server instances simultaneously, L2TPv3, L2TP over IPsec support |
| Stunnel | Proxy for TLS encryption without program changes |
| DMVPN | Scalable IPsec VPNs, Phase 2 & 3, Dual Hub support |
| SSTP | SSTP client instance support |
| ZeroTier | VPN client support |
| WireGuard | VPN client and server support |
| Tinc | Encryption, authentication, compression; client and server support |
| BacNET | |
| Supported connection types | RS485, TCP |
| Supported modes | Router |
| OPC UA | |
| Supported modes | Client, Server |
| Supported connection types | TCP |
| MQTT Gateway | |
| Modbus MQTT Gateway | Send commands and receive data from MODBUS server via MQTT broker |
| MODBUS | |
| Supported modes | Server, Client |
| Supported connection types | RTU (RS232, RS485), TCP, USB |
| Custom registers | MODBUS TCP custom register block requests, read/write to file inside router, extend MODBUS TCP Client functionality |
| Supported data formats | 8-bit: INT, UINT; 16-bit: INT, UINT (MSB/LSB first); 32-bit: float, INT, UINT (ABCD, DCBA, CDAB, BADC), HEX, ASCII |
| Data to Server | |
| Protocol | HTTP(S), MQTT, Azure MQTT |
| Data to server | Extract parameters from multiple sources/protocols, send to single server; custom LUA scripting supported |
| DNP3 | |
| Supported modes | Station, Outstation |
| Supported connection types | RS232, RS485, TCP, USB |
| DLMS/COSEM | |
| DLMS Support | Standard protocol for utility meter data exchange |
| Supported modes | Client |
| Supported connection types | RS232, RS485, TCP |
| API | |
| Teltonika Networks Web API | Beta support; configurable endpoints to retrieve/change data. Documentation: developers.teltonika-networks.com |
| Monitoring & Management | |
| WEB UI | HTTP/HTTPS, status, configuration, firmware update, CLI, troubleshoot, event/system/kernel logs, Internet status |
| FOTA | Firmware update from server, automatic notification |
| SSH | SSH (v1, v2) |
| SMS | SMS status, SMS configuration |
| Call | Reboot, Status, Mobile/Wi-Fi on/off, Output on/off, answer/hang-up with timer |
| TR-069 | OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem |
| MQTT | MQTT Broker, MQTT publisher |
| SNMP | SNMP (v1, v2, v3), SNMP Trap, Brute force protection |
| JSON-RPC | Management API over HTTP/HTTPS |
| RMS | Teltonika Remote Management System |
| IoT Platforms | |
| ThingWorx | Monitors WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type |
| Cumulocity - Cloud of Things | Monitors Device Model, Revision, Serial Number, WAN Type/IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength; supports reboot & firmware upgrade |
| Azure IoT Hub | Configurable with Data to Server, Direct method support, Plug & Play integration with Device Provisioning Service |
| AWS IoT Core | Interact with AWS cloud platform; Jobs Support: call device API via AWS Jobs |
| System Characteristics | |
| CPU | Mediatek, 580 MHz, MIPS 24KEc |
| RAM | 128 MB, DDR2 |
| FLASH storage | 16 MB, SPI Flash |
| Firmware / Configuration | |
| WEB UI | Update FW from file, check FW on server, configuration profiles, configuration backup |
| FOTA | Update FW |
| RMS | Update FW/configuration for multiple devices at once |
| Keep settings | Update FW without losing current configuration |
| Factory settings reset | Full factory reset restores all system settings including IP, PIN, user data |
| Firmware Customisation | |
| Operating system | RutOS (OpenWrt based Linux OS) |
| Supported languages | Busybox shell, Lua, C, C++, Python, Java (via Package Manager) |
| Development tools | SDK package with build environment |
| GPL customization | Custom branded firmware & web page application by changing colours, logos, elements |
| Package Manager | Install additional software on the device |
| Location Tracking | |
| GNSS | GPS. (GLONASS, BeiDou, Galileo, QZSS - under development) |
| Coordinates | GNSS coordinates via WebUI, SMS, TAVL, RMS |
| NMEA | NMEA 0183 |
| NTRIP | NTRIP protocol (Networked Transport of RTCM via Internet Protocol) |
| Server software | Supported server software: TAVL, RMS |
| Geofencing | Configurable multiple geofence zones |
| Serial | |
| RS232 | DB9 connector, RTS/CTS flow control, 300–115200 baud rate |
| RS485 | Full Duplex (4 wires) & Half Duplex (2 wires), 300–230400 baud rate |
| Serial functions | Console, Serial over IP, Modem |
| USB | |
| Data rate | USB 2.0 |
| Applications | Samba share, USB-to-serial |
| External devices | Connect HDD, flash drive, additional modem, printer, USB-serial adapter |
| Storage formats | FAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4 |
| Input/Output | |
| Input | 1x digital dry input (0–3 V), 1x digital galvanically isolated input (0–30 V), 1x analog input (0–24 V, 4–20 mA capability), 1x Digital non-isolated input (0–5 V low, 8–30 V high) |
| Output | 1x digital open collector (30 V, 250 mA), 1x SPST relay (40 V, 4 A), 1x digital open collector (30 V, 300 mA) |
| Events | Email, RMS, SMS |
| I/O juggler | Set I/O conditions to initiate event |
| SD Card | |
| Physical size | Micro SD (internal) |
| Applications | Samba share, Storage Memory Expansion, DLNA |
| Capacity | Up to 2 TB |
| Storage formats | FAT32, NTFS, ext2, ext3, ext4 |
| Power | |
| Connector | 4-pin industrial DC power socket |
| Input voltage range | 9–30 VDC, reverse polarity protection, surge protection >31 VDC 10µs max |
| PoE (passive) | Passive PoE over spare pairs; power via LAN1, not IEEE802.3af/at/bt compatible; Mode B, 9–30 VDC |
| Power consumption | < 2 W idle, < 7 W Max |
| Physical | |
| Ethernet | 4 x RJ45 ports, 10/100 Mbps |
| I/O’s | 2 x Inputs, 2 x Outputs on 10-pin industrial socket; 1 x Digital input & 1 x Digital output on 4-pin power connector |
| Status LEDs | 1 x Bi-color connection, 5 x Mobile strength, 4 x ETH status, 1 x Power |
| SIM | 2 x SIM slots (Mini SIM - 2FF, 1.8 V/3 V), external SIM holders, eSIM optional |
| Antennas | 2 x SMA LTE, 2 x RP-SMA Wi-Fi, 1 x SMA GNSS |
| USB | 1 x USB A for external devices |
| RS232 | 1 x DB9 socket |
| RS485 | 1 x 6-pin industrial socket |
| Reset | Reboot/User default/Factory reset button |
| Operating Environment | |
| Operating temperature | -40 °C to 75 °C |
| Operating humidity | 10% to 90% non-condensing |
| Ingress Protection Rating | IP30 |
| Regulatory & Type Approvals | |
| Regulatory | CE, UKCA, RCM, CB, E-mark |
| EMC Emissions & Immunity | EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 61000-3-3:2013+A1:2019+A2:2021, EN IEC 61000-3-2:2019+A1:2021, EN 301 489-1 V2.2.3, EN 301 489-17 V3.2.4, EN 301 489-19 V2.2.0, EN 301 489-52 V1.2.1 |
| ESD | EN 61000-4-2:2009 |
| Radiated Immunity | EN IEC 61000-4-3:2020 |
| EFT | EN 61000-4-4:2012 |
| CS | EN 61000-4-6:2014 |
| DIP | EN IEC 61000-4-11:2020 |
| Safety Standards | CE: EN 62311, CB: IEC 62368-1:2018 |
| RF Standards | EN 301 908-1; EN 301 908-2; EN 301 908-13; EN 300 328 |
FAQs
Q1: What is the Teltonika RUT906 and what is it used for?
A: The Teltonika RUT906 is an industrial cellular router that delivers reliable 4G/LTE connectivity with integrated Wi‑Fi and GPS, designed for secure remote access, IoT applications, and network deployments in industrial and mobile environments.
Q2: What cellular and wireless technologies does the Teltonika RUT906 support?
A: The RUT906 supports 4G/LTE mobile data with fallback to 3G and 2G, and includes a Wi‑Fi access point for local wireless connectivity, enabling seamless wired, cellular, and Wi‑Fi network access for devices.
Q3: How many Ethernet ports does the Teltonika RUT906 have and what are they used for?
A: This router includes multiple Ethernet ports that can be configured for WAN and LAN use, providing robust wired network connectivity alongside wireless and cellular interfaces for local devices and network segments.
Q4: What security and routing features does the Teltonika RUT906 offer?
A: The RUT906 supports essential network security and routing features, such as firewall controls, VLAN support, VPN protocols for encrypted connections, and options for remote management to help secure and manage traffic.
Q5: What physical and environmental features make the Teltonika RUT906 suitable for industrial use?
A: The RUT906 features a rugged housing, DIN‑rail, wall, or surface mounting options, and LED indicators for network and power status. It is built to operate reliably in demanding industrial, mobile, and outdoor environments.
