Teltonika RUTM56
Please contact us for stocking information.

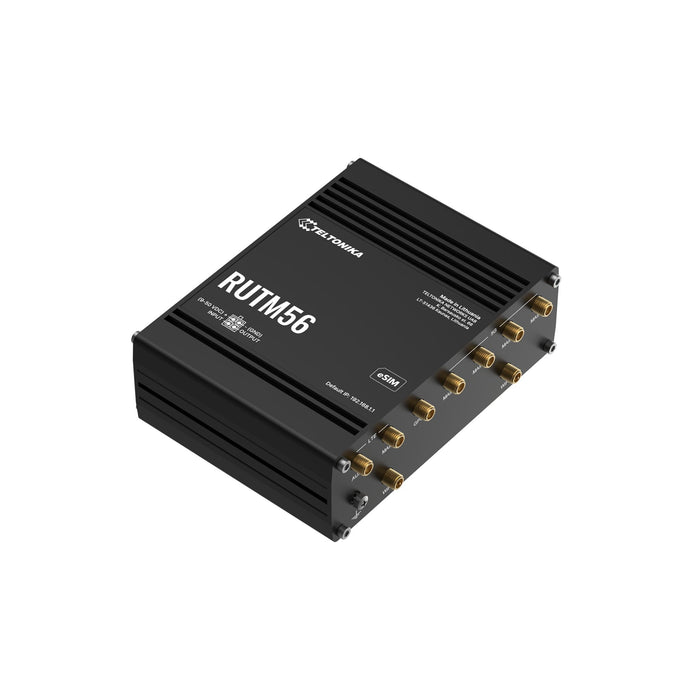

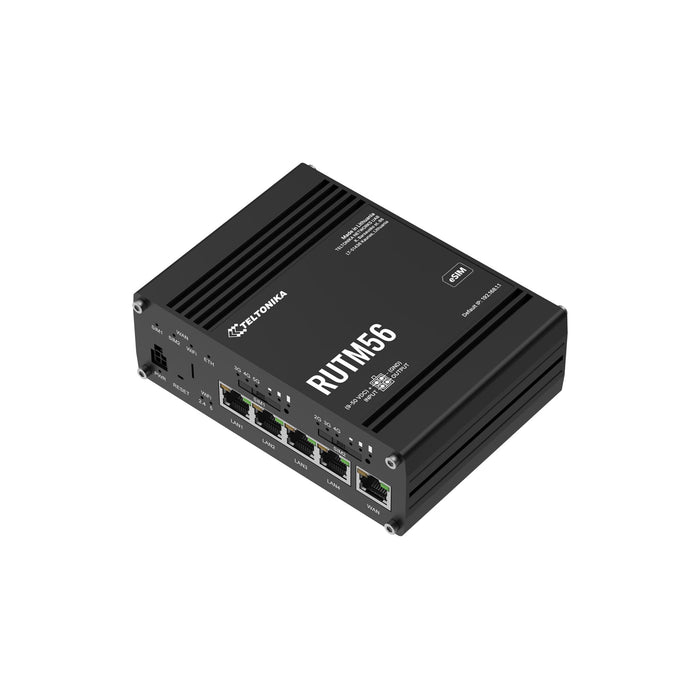

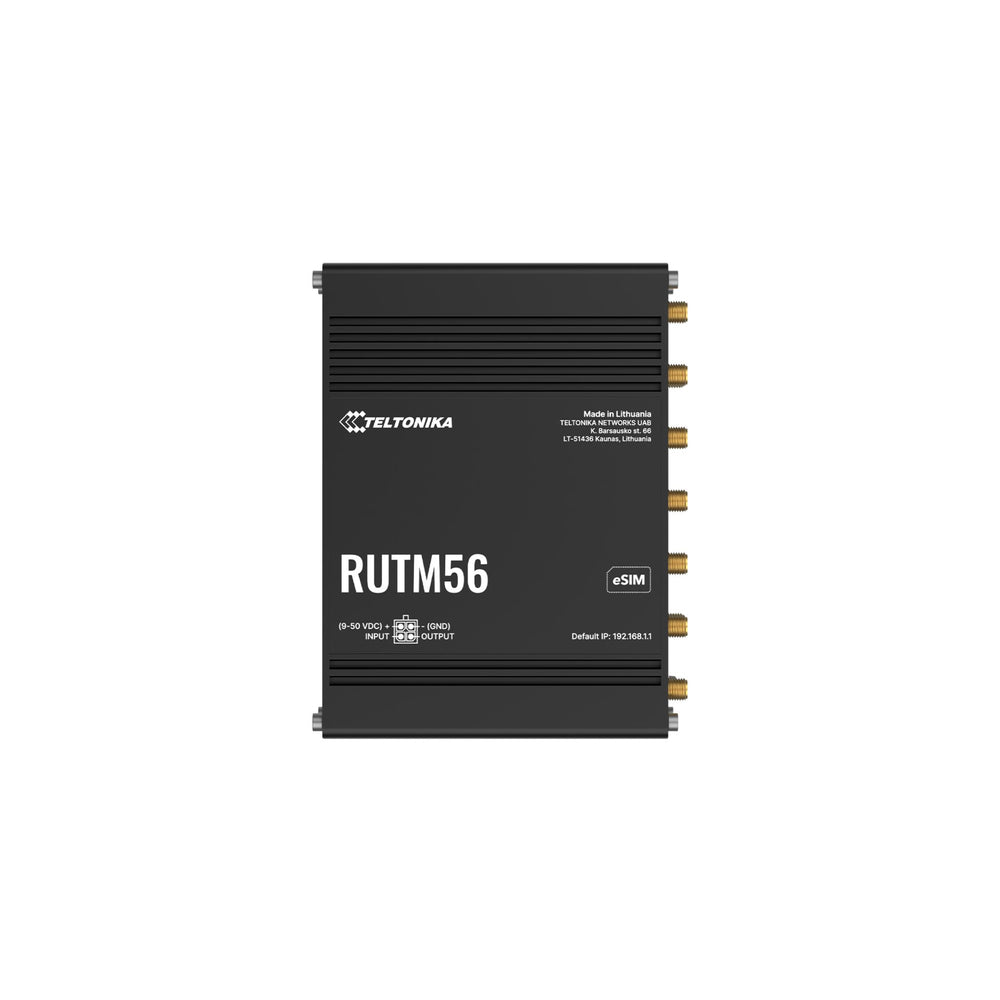

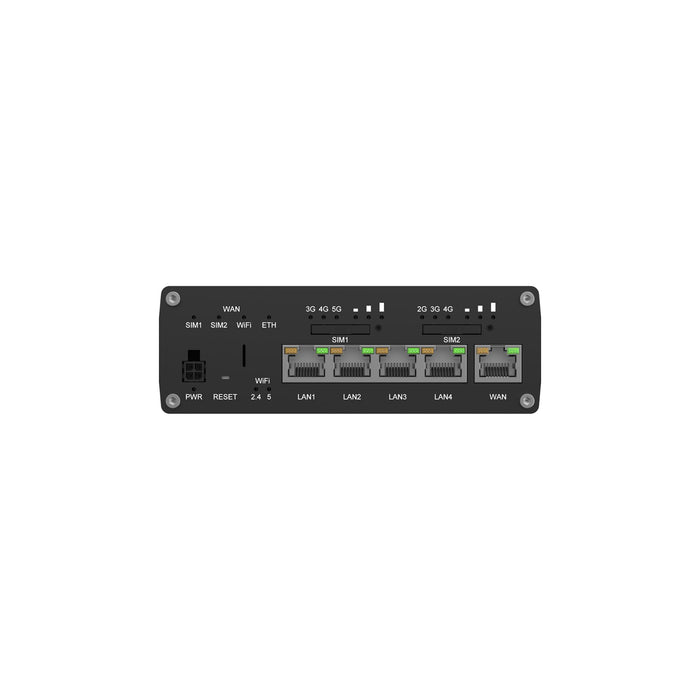

Teltonika RUTM56 – Dual Modem 5G and 4G Industrial Router with SIM and eSIM
The Teltonika RUTM56 is a future-proof dual modem industrial router designed to deliver continuous connectivity across both next-generation and legacy mobile networks. By combining an integrated 5G modem with a secondary 4G Cat 4 modem, it ensures uninterrupted operation with seamless fallback to 3G and 2G networks, making it ideal for deployments where network availability and resilience are critical.
Built for reliability and flexibility, the RUTM56 supports dual SIM and eSIM with intelligent auto-failover, backup WAN, and advanced switching scenarios. Load balancing across mobile and wired connections helps optimise throughput and stability, while integrated WiFi 5 and five Gigabit Ethernet ports provide robust local connectivity for industrial equipment, edge devices, and on-site networks.
Running RutOS, Teltonika’s industrial-grade operating system, the RUTM56 supports a wide range of industrial protocols and secure VPN technologies, simplifying complex IoT and industrial networking setups. Designed as a true plug-and-play solution, it enables rapid deployment straight out of the box, reducing configuration time and eliminating the complexity and risk of multi-device network architectures.
Tech Specs
View the Teltonika RUTM56 datasheet here.
| Device Specifications | |
|---|---|
| Ethernet | (4) RJ45 ports, 10/100/1000 Mbps |
| I/O | (1) Digital dry input (1) Digital galvanically isolated input (1) Analog input (1) Isolated open collector output (1) SPST relay output |
| Status LEDs | (3) Mobile connection type (3) Mobile connection strength (6) LAN status (1) Power |
| SIM | (2) Mini SIM (2FF) slots 1.8 V / 3 V Internal SIM holders |
| Antennas | (4) SMA for Mobile (2) RP-SMA for WiFi (1) SMA for GNSS |
| USB | (1) USB Type-A port for external devices |
| RS232 | (2) pins in 16-pin terminal block |
| RS485 | (2) pins in 16-pin terminal block |
| Reset | Reboot / User default reset / Factory reset button |
| Power Connector | (1) 3-pin power connector |
| Casing Material | Anodised aluminium housing and panels |
| Dimensions (W x H x D) | 132 x 44.2 x 95 mm |
| Weight | 430 g |
| Mounting Options | DIN rail Wall mount Flat surface (Additional kit required) |
| Operating Temperature | -40°C to 75°C |
| Operating Humidity | 10% to 90% non-condensing |
| Ingress Protection Rating | IP30 |
