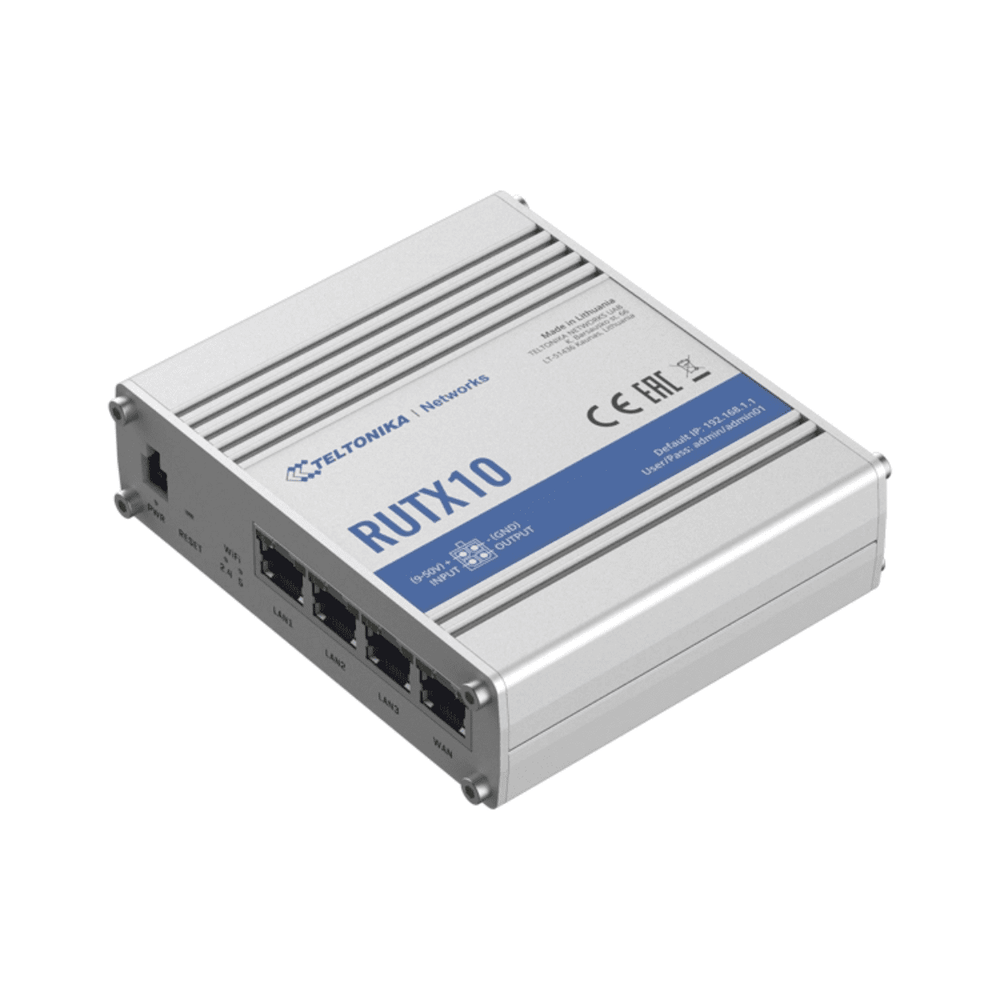

Teltonika RUTX10
by Teltonika
Sold out
Excl. VAT:
£95.99
Incl. VAT:
£115.19
SKU RUTX10-UK
Please contact us for stocking information.
The RUTX10, a Teltonika Enterprise router, efficiently utilises 802.11ac Wave2 technology with dual-band WiFi capabilities. Ideal for Small office or Public sector purposes, it features a Bluetooth LE module for short range communication and 4x Gigabit Ethernet ports. The RUTX10 can be remotely managed through Teltonikas RMS Remote Management System, showcasing the impressive synergy between its hardware and software for exceptional performance in Enterprise solutions.
Tech Specs
Click here for the Teltonika RUTX10 datasheet.
| Device Specifications | |
|---|---|
| Wireless | |
| Wireless mode | 802.11b/g/n/ac Wave 2 (Wi-Fi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO) 802.11r fast transition, Access Point (AP), Station (STA) |
| Wi-Fi security | WPA2-Enterprise: PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates Disable auto-reconnect, 802.11w Protected Management Frames (PMF) |
| SSID/ESSID | SSID stealth mode and access control based on MAC address |
| Wi-Fi users | Up to 150 simultaneous connections |
| Wireless Connectivity Features | Wireless mesh (802.11s), fast roaming (802.11r), Relayd, BSS transition management (802.11v), radio resource measurement (802.11k) |
| Wireless MAC filter | Allowlist, blocklist |
| Wireless QR code generator | Once scanned, a user will automatically enter your network without needing to input login information |
| TravelMate | Forward Wi-Fi hotspot landing page to a subsequent connected device |
| Bluetooth | |
| Bluetooth | Bluetooth 5.0, Bluetooth low energy (LE) for short range communication |
| Ethernet | |
| WAN | 1 x WAN port 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards Supports auto MDI/MDIX crossover |
| LAN | 3 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards Supports auto MDI/MDIX crossover |
| Network | |
| Routing | Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing |
| Network protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN |
| VoIP passthrough support | H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets |
| Connection monitoring | Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection |
| Firewall | Port forward, traffic rules, custom rules, TTL target customisation |
| Firewall status page | View all your Firewall statistics, rules, and rule counters |
| Port management | View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and more |
| Network topology | Visual representation of your network, showing which devices are connected to which other devices |
| Hotspot | |
| Hotspot | Captive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorisation, SSO authentication, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customisable themes and optionality to upload and download customised hotspot themes |
| DHCP | Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards |
| QoS / Smart Queue Management (SQM) | |
| SQM | Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e |
| DDNS | |
| DDNS | Supported >77 service providers, others can be configured manually |
| DNS over HTTPS | |
| DoH | DNS over HTTPS proxy enables secure DNS resolution by routing DNS queries over HTTPS |
| Network Backup & Load Balancing | |
| Network backup | Wi-Fi WAN, VRRP, Wired options, each of which can be used as an automatic Failover |
| Load balancing | Balance Internet traffic over multiple WAN connections |
| SSHFS & VRF | |
| SSHFS | Possibility to mount remote file system via SSH protocol |
| VRF support | Initial virtual routing and forwarding (VRF) support |
| Traffic Management | |
| Traffic Monitoring | Real-time monitoring, wireless signal charts, traffic usage history |
| Security | |
| Certificate Manager | Certificate creation tool allows to create CA, server, client, let's encrypt, SCEP certificates |
| 802.1x | Port-based network access control client |
| Authentication | Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator |
| Firewall | Preconfigured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T, NAT64 |
| Attack prevention | DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks) |
| VLAN | Port and tag-based VLAN separation |
| WEB filter | Block list for blocking unwanted websites, allow list for specifying allowed sites only |
| Access control | Flexible access control of SSH, Web interface, CLI and Telnet |
| TPM | Identification and authentication module, TPM 2.0 standard |
| VPN | |
| OpenVPN | Multiple clients and a server can run simultaneously, 27 encryption methods |
| OpenVPN Encryption | DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256 |
| IPsec | XFRM, IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16) |
| GRE | GRE tunnel, GRE tunnel over IPsec support |
| PPTP, L2TP | Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support |
| Stunnel | Proxy designed to add TLS encryption functionality to existing clients and servers without changes in the program code |
| DMVPN | Method of building scalable IPsec VPNs, Phase 2 and Phase 3 and Dual Hub support |
| SSTP | SSTP client instance support |
| ZeroTier | ZeroTier VPN client support |
| WireGuard | WireGuard VPN client and server support |
| Tinc | Tinc offers encryption, authentication and compression in its tunnels. Client and server support. |
| Tailscale | Tailscale offers speed, stability, and simplicity over traditional VPNs. Encrypted point-to-point connections using WireGuard protocol |
| OPC UA | |
| Supported modes | Client, Server |
| Supported connection types | TCP |
| MQTT Gateway | |
| Modbus MQTT Gateway | Allows sending commands and receiving data from MODBUS Server through MQTT broker |
| MODBUS | |
| Supported modes | Server, Client |
| Supported connection types | TCP, USB |
| Custom registers | MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Client functionality |
| Supported data formats | 8-bit: INT, UINT 16-bit: INT, UINT (MSB or LSB first) 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC) HEX, ASCII |
| Data to Server Protocol | HTTP(S), MQTT, Azure MQTT |
| Data to server | Extract parameters from multiple sources and different protocols, send to a single server; Custom LUA scripting supported |
| DNP3 | |
| Supported modes | Station, Outstation |
| Supported connection | TCP, USB |
| DLMS/COSEM | |
| DLMS Support | DLMS - standard protocol for utility meter data exchange |
| Supported modes | Client |
| Supported connection types | TCP, USB |
| API | |
| Teltonika Networks Web API | Beta support; configurable API endpoints to retrieve or change data. Documentation: Teltonika Developers |
| Monitoring & Management | |
| WEB UI | HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update notifications, system log, kernel log, Internet status |
| FOTA | Firmware update from server, automatic notification |
| SSH | SSH (v1, v2) |
| TR-069 | OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem |
| MQTT | MQTT Broker, MQTT publisher |
| SNMP | SNMP (v1, v2, v3), SNMP Trap, Brute force protection |
| JSON-RPC | Management API over HTTP/HTTPS |
| RMS | Teltonika Remote Management System (RMS) |
| IoT Platforms | |
| ThingWorx | Allows monitoring of WAN Type, WAN IP |
| Cumulocity - Cloud of Things | Allows monitoring of Device Model, Revision and Serial Number, WAN Type and IP. Has reboot and firmware upgrade actions |
| Azure IoT Hub | Can be configured with Data to Server to send all available parameters to the cloud. Supports Direct method calls via RutOS API. Plug and Play integration with Device Provisioning Service for zero-touch provisioning |
| System Characteristics | |
| CPU | Quad-core ARM Cortex A7, 717 MHz |
| RAM | 256 MB, DDR3 |
| FLASH storage | 256 MB, SPI Flash |
| Firmware / Configuration | |
| WEB UI | Update firmware from file, check firmware on server, configuration profiles, configuration backup |
| FOTA | Update firmware |
| RMS | Update firmware/configuration for multiple devices at once |
| Keep settings | Update firmware without losing current configuration |
| Factory settings reset | Full factory reset restores all system settings, including IP address, PIN, and user data to default manufacturer configuration |
| Firmware Customisation | Operating system: RutOS (OpenWrt based Linux OS) Supported languages: Busybox shell, Lua, C, C++, Python, Java in Package Manager Development tools: SDK package with build environment GPL customization: Create custom branded firmware and web page application Package Manager: Service to install additional software |
| Location Tracking | |
| NTRIP | NTRIP protocol (Networked Transport of RTCM via Internet Protocol) |
| USB | |
| Data rate | USB 2.0 |
| Applications | Samba share, USB-to-serial |
| External devices | External HDD, flash drive, additional modem, printer, USB-serial adapter |
| Storage formats | FAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4 |
| Input / Output (I/O) | |
| Input | 1 x Digital Input, 0-6 V detected as logic low, 8-30 V detected as logic high |
| Output | 1 x Digital Output, Open collector output, max 30 V, 300 mA |
| Events | Email, RMS |
| I/O juggler | Set certain I/O conditions to initiate events |
| Power | |
| Connector | 4-pin industrial DC power socket |
| Input voltage range | 9 - 50 VDC, reverse polarity protection, voltage surge/transient protection |
| PoE (passive) | Power via LAN1 port, Mode B, 9 - 50 VDC, not compatible with IEEE802.3af/at/bt |
| Power consumption | 9 W Max |
| Physical Interfaces & Antennas | |
| Ethernet | 4 x RJ45 ports, 10/100/1000 Mbps |
| I/O’s | 1 x Digital Input, 1 x Digital Output on 4-pin power connector |
| Status LEDs | 8 x LAN status LEDs, 1 x Power LED, 2 x 2.4G and 5G Wi-Fi LEDs |
| Power | 1 x 4-pin power connector |
| Antennas | 2 x RP-SMA for Wi-Fi, 1 x RP-SMA for Bluetooth |
| USB | 1 x USB A port for external devices |
| Reset | Reboot/User default reset/Factory reset button |
| Other | 1 x Grounding screw |
| Physical Specification | |
| Casing material | Aluminium housing |
| Dimensions (W x H x D) | 115 x 32.2 x 95.2 mm |
| Weight | 355 g |
| Mounting options | DIN rail, wall mount, flat surface (all require additional kit) |
| Operating Environment | |
| Operating temperature | -40 °C to 75 °C |
| Operating humidity | 10% to 90% non-condensing |
| Ingress Protection Rating | IP30 |
| Regulatory & Type Approvals | |
| Regulatory | CE, UKCA, FCC, EAC, UCRF, CITC, ICASA, ANRT, FCC, IC, NOM, UL/CSA Safety, Anatel, Giteki, CB, IC (ISED), RCM |
| EMC Emissions & Immunity | ESD: EN 61000-4-2:2009 CE/UKCA: EN 55032, EN 55035, EN IEC 61000-3-2/3-3, EN 301 489-1/3/17 FCC/ISED(IC): 47 CFR Part 15 Subpart B, ICES-003 RCM: AS/NZS CISPR 32 |
| Radiated Immunity | EN IEC 61000-4-3:2006+A1:2008+A2:2010, EN IEC 61000-4-3:2020 |
| EFT / Surge / CS / DIP / RF | EFT: EN 61000-4-4:2012 Surge Immunity: EN 61000-4-5:2014+A1:2017 CS: EN 61000-4-6:2014 DIP: EN 61000-4-11:2004, EN 61000-4-11:2020 RF Standards: CE/UKCA: EN 300 328, EN 301 893, EN 300 440; RCM: AS/NZS 4268:2017+A1:2021; FCC: 47 CFR Part 15 Subpart C/E; IC: RSS-247, RSS-Gen |
| Safety | CE: EN IEC 62368-1:2020+A11:2020, EN IEC 62311:2020 CB: IEC 62368-1:2018 RCM: AS/NZS 62368.1:2022 |
| RF Exposure | FCC: 47 CFR - § 2.1091, KDB 447498 D04 Interim General RF Exposure Guidance v01 IC (ISED): RSS-102 Issue 6 (December 2023) |
FAQs
Q1: What is the Teltonika RUTX10 and what is it used for?
A: The Teltonika RUTX10 is an industrial wired and wireless router designed for high‑performance networking. It combines wired connectivity, dual‑band Wi‑Fi, Bluetooth and advanced routing features to support secure enterprise and industrial network infrastructures.
Q2: How many Ethernet ports does the Teltonika RUTX10 have and what speeds do they support?
A: The RUTX10 features 4 x Gigabit Ethernet ports, which deliver robust 10/100/1000 Mbps wired network connectivity and support up to 128 port‑ or tag‑based VLANs for flexible traffic segmentation.
Q3: What wireless capabilities are included in the Teltonika RUTX10?
A: This device includes dual‑band Wi‑Fi (802.11ac Wave 2) with MU‑MIMO for high‑speed wireless access and Bluetooth LE connectivity, enabling both Wi‑Fi clients and Bluetooth‑based device interactions.
Q4: What advanced networking and security features does the Teltonika RUTX10 support?
A: The RUTX10 supports a wide range of VPN protocols (such as OpenVPN, IPsec, PPTP, L2TP and DMVPN), VLANs, firewall capabilities, and remote management, making it suitable for secure and complex network topologies.
Q5: What physical and operational features make the Teltonika RUTX10 suitable for industrial use?
A: The RUTX10 has a rugged aluminium housing, supports DIN‑rail, wall or flat surface mounting, operates across a wide temperature range (approx. –40 °C to +75 °C), and includes versatile power options for reliable performance in demanding environments.
