Tycon Systems DC PoE Injector, 10-15VDC IN, 56V 35W GigE 802.3at PoE OUT - TP-DCDC-1248GD-HP
Please contact us for stocking information.

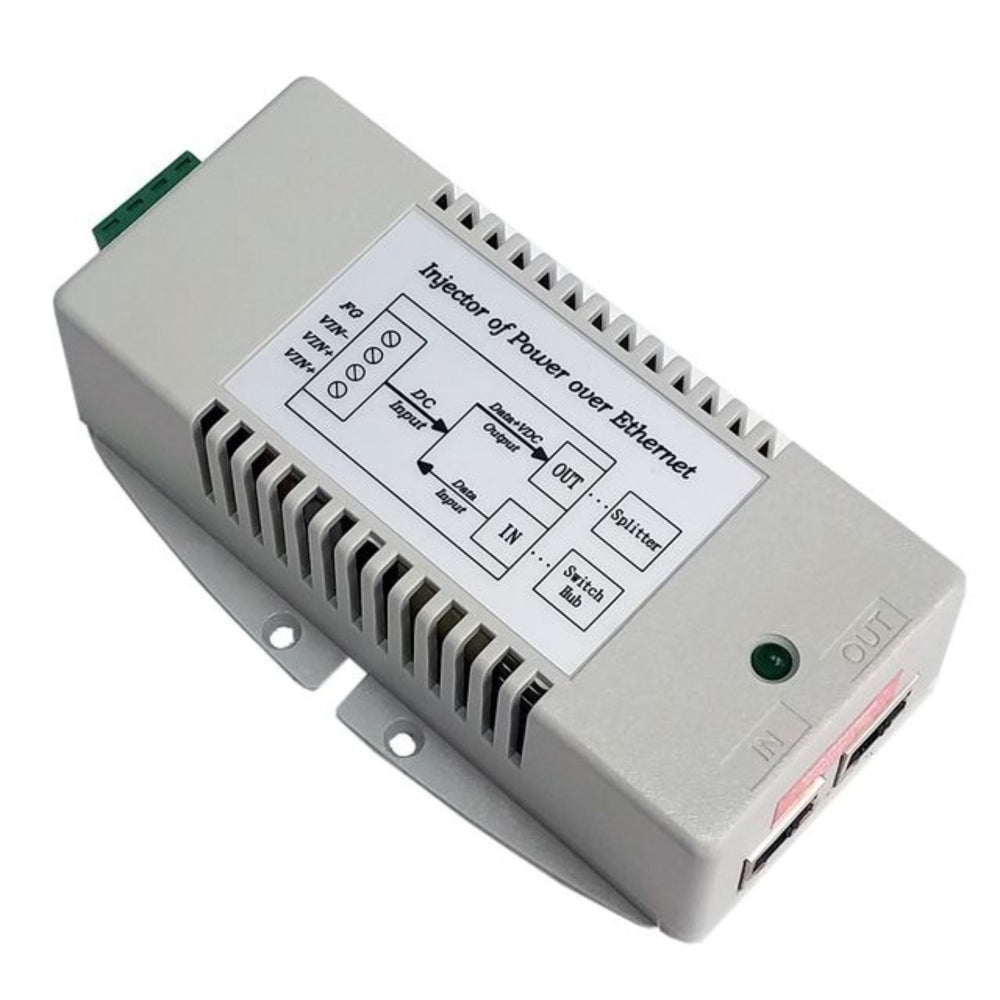

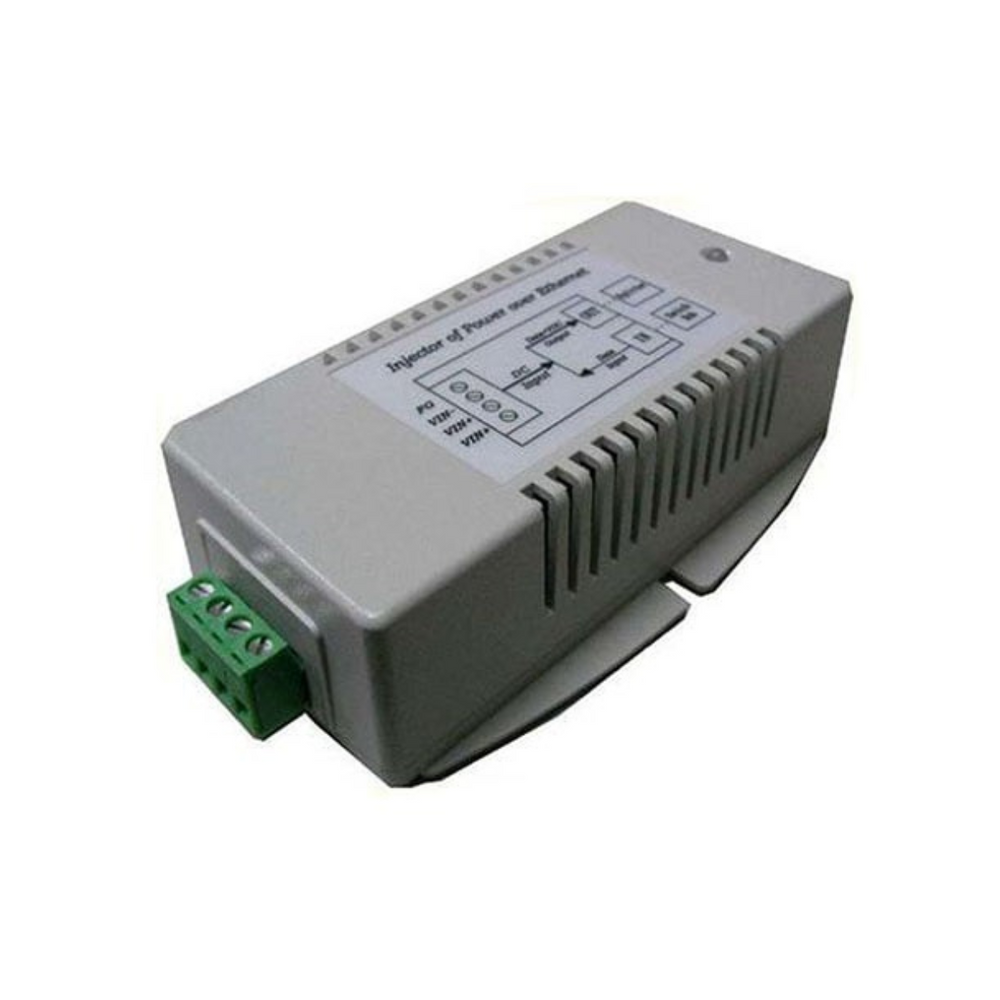

The TP-DCDC-1248GD-HP from Tycon Power is a cost-effective, efficient solution for powering devices with IEEE802.3af and IEEE802.3at POE from a 12VDC source, like a battery or vehicle. It has a built-in POE injector and regulated/protected output voltage. It can connect to 2 power sources, such as a primary and backup, and comes in a metal enclosure for industrial applications.
Tech Specs
Click here for the Tycon Power TP-DCDC-1248GD-HP datasheet.
| Device Specifications | |
|---|---|
| Tycon DC PoE Injector 56V 35W | |
| DC Input Voltage | 10VDC – 15VDC |

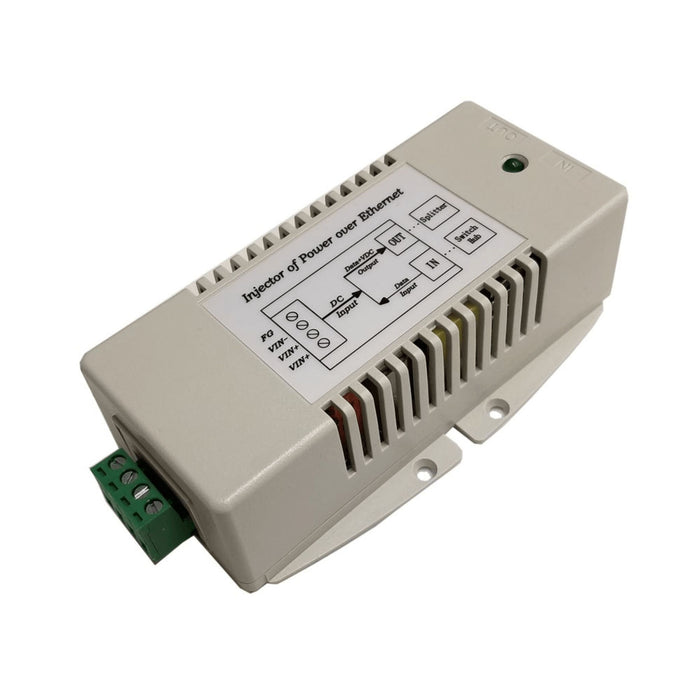

| DC Input Connector | Removable screw-type compression wire terminal (12 AWG max) |
| DC Output Voltage | 56V (802.3af/at) |

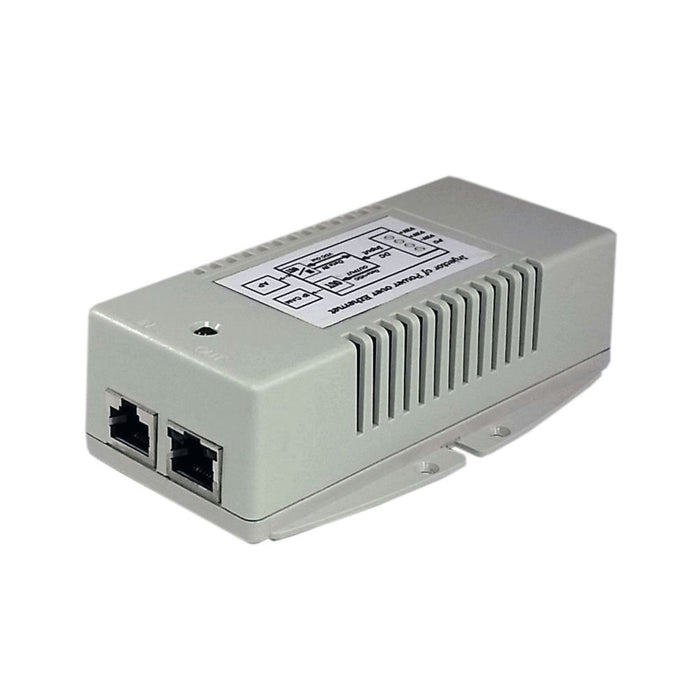

| Data In & Data/PoE Output Connector | RJ45 (Shielded) |
| Output Current (Max) | 0.625 A |
| Output Power (Max) | 35 W |
| Self Consumption Power | 1 W |
| Efficiency (Min) | 75% |
| Line Regulation | 1% |
| Load Regulation | 5% |
| Ripple | 1% |
| Noise | 1% |
| EMC Standards | FCC Class B, EN55022 Class B |
| Safety Standards | IEC 62368-1, EN 62368-1, AS/NZS 62368.1 |
| Operating Temperature | -40 to +70°C (-40 to +158°F) |
| Operating Humidity | 5% – 90% Non-Condensing |
| Storage Temperature | -40 to +80°C (-40 to +176°F) |
| MTBF | 106,924 hours |
| Dimensions (L × W × H) | 125 x 75 x 38 mm (4.9 x 3 x 1.5”) |
| Weight | 300 g (10.6 oz) |
FAQs
Q1: What is the Tycon TP‑DCDC1248GD‑HP PoE Injector and what is it used for?
A: The Tycon TP‑DCDC1248GD‑HP is a DC‑powered PoE injector that converts a 10–15 V DC input into 56 V DC Power over Ethernet output compliant with 802.3at (PoE+). It supplies both power and data to compatible network devices over a single Ethernet cable.
Q2: What power output does the TP‑DCDC1248GD‑HP deliver?
A: This PoE injector provides up to 35 W of power over Ethernet, making it suitable for high‑power PoE+ devices such as advanced wireless access points, PTZ cameras, and other demanding network equipment.
Q3: What input voltage range does the TP‑DCDC1248GD‑HP support?
A: The injector accepts a 10–15 V DC input, allowing it to be used with low‑voltage DC systems such as vehicle power, battery banks, and 12 V power supplies without needing additional converters.
Q4: How is the Tycon TP‑DCDC1248GD‑HP installed and powered?
A: The device connects directly to a DC power source via secure connectors or terminal blocks. It then delivers PoE power and Ethernet data together over a single cable to the connected PoE device, simplifying installations in DC‑powered environments.
Q5: What applications is the TP‑DCDC1248GD‑HP PoE Injector suitable for?
A: It is ideal for mobile, transportation, industrial, and outdoor network deployments where low‑voltage DC power is available and high‑power PoE+ delivery is required for robust network devices.
