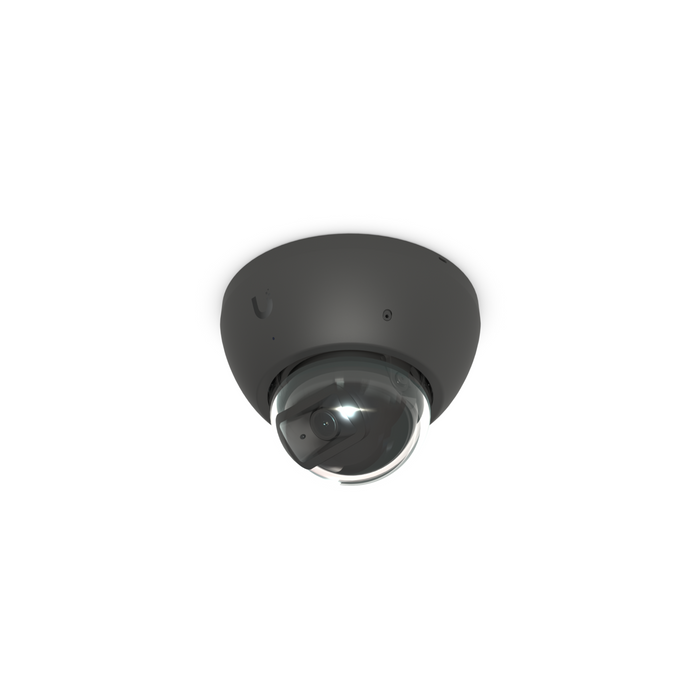

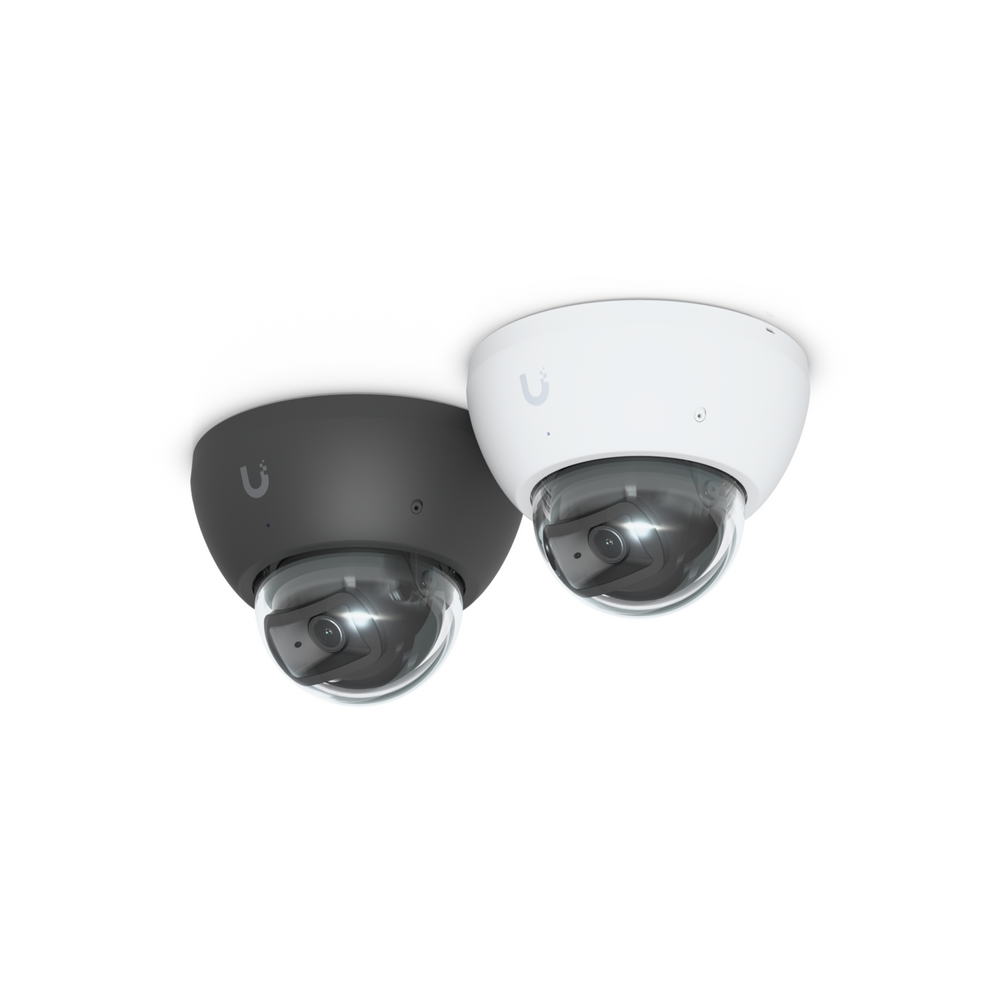

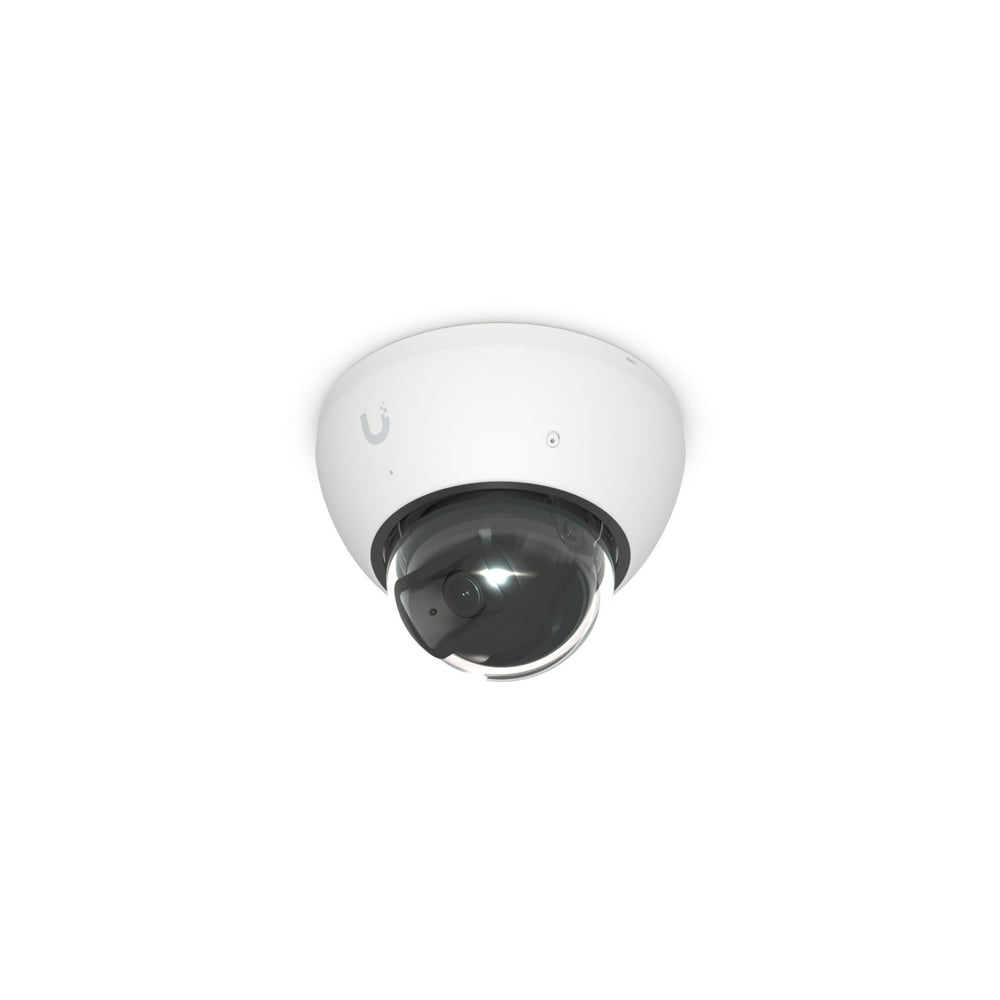

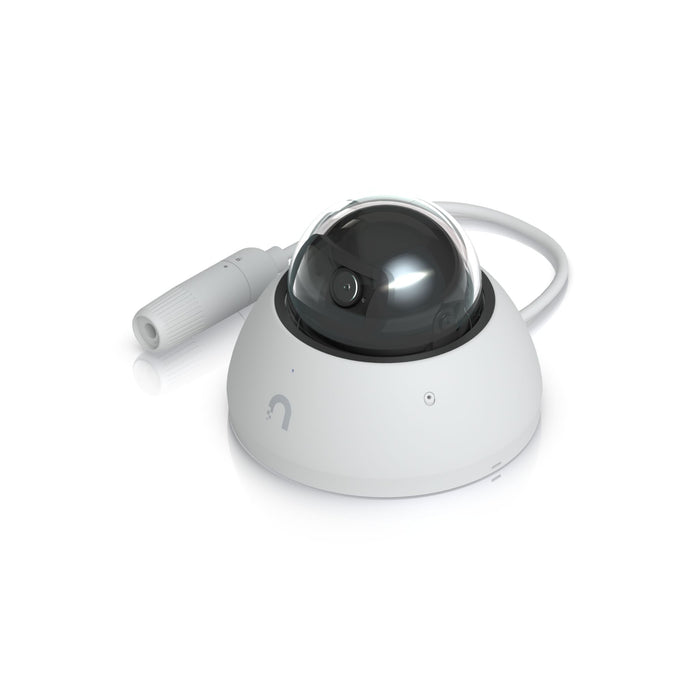

The Ubiquiti AI Dome is a vandal-proof, all-weather 4K PoE dome camera designed for superior surveillance performance. Featuring 4K (8MP) resolution and an ultra-wide 109.9° viewing angle, it captures crystal-clear footage. With 40m (131ft) IR night vision, it ensures reliable operation in low-light conditions.
Equipped with advanced AI capabilities for face and license plate recognition, it enhances security monitoring. The integrated microphone enables audio recording, while microSD card support allows for local edge recording (minimum 64 GB required). Powered via PoE, it's ideal for outdoor installations and built to endure the elements.
Tech Specs
Click here to view the Ubiquiti AI Dome datasheet
| Device Specifications | |
|---|---|
| Overview | |
| Dimensions | Ø118 x 90.8 mm (Ø4.6 x 5.5") |
| IR Night Vision | 40 m (131 ft) |
| Face Recognition | ✓ |
| License Plate Recognition | ✓ |
| Smart Detections | People, Vehicles, Animals ✓ |
| Resolution | 4K |
| Field of View | H: 109.9°, V: 56.7°, D: 134.1° |
| Audio | Microphone |
| Weatherproofing | IP66 |
| Tamper Resistance | IK10 |
| Mounting | Arm, ceiling, pendant, wall mount, junction box |
| Performance | |
| Networking Interface | GbE RJ45 port |
| Video Image Settings | Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay, HDR |
| Max. Frame Rate | 30 FPS |
| Resolution | 8MP 3840 x 2160 (16:9) |
| Optics Sensor | 1/1.8" 8MP |
| Lens | Fixed focal length |
| Night Mode | Built-in IR LED illumination and IR cut filter |
| Hardware | |
| Max. Power Consumption | 10W |
| Supported Voltage Range | 42.5—57V DC |
| Power Method | PoE |
| Processor | Quad-core Arm® Cortex®-A53 based chip |
| Weight | 700 g (1.5 lb) |
| Enclosure Material | Aluminum alloy, polycarbonate |
| Mount Material | Surface mount: polycarbonate |
| Expansion Slot | MicroSD Card |
| Button | (1) Factory-reset |
| Cable | |
| Cable Connector Type | RJ45 |
| Cable Diameter | 4.5 mm (0.2") |
| Cable Length | 30 cm (1 ft) |
| Jacket Material | Thermoplastic elastomer |
| Jacket Enclosure Dimensions | Ø20 x 70.6 mm (0.8 x 2.8") |
| Jacket Enclosure Material | Thermoplastic elastomer, polycarbonate, silicone rubber |
| Environmental | |
| Ambient Operating Temperature | -30 to 50° C (-22 to 122° F) |
| Ambient Operating Humidity | 0 to 90% noncondensing |
| NDAA Compliant | ✓ |
| Certifications | CE, FCC, IC |
FAQs
Q. What type of camera is the Ubiquiti UVC-AI-Dome?
A: The UVC-AI-Dome is a professional dome-style surveillance camera with AI-powered analytics, suitable for both indoor and outdoor monitoring.
Q. What AI features does the UVC-AI-Dome include?
A: It offers AI-based person and vehicle detection, motion alerts, and smart notifications to reduce false positives and enhance security monitoring.
Q. What resolutions and video formats does the UVC-AI-Dome support?
A: The camera supports up to 4K resolution and H.264/H.265 encoding, delivering high-quality video with efficient storage and bandwidth usage.
Q. How does the Ubiquiti UVC-AI-Dome integrate with UniFi Protect?
A: The UVC-AI-Dome integrates seamlessly with UniFi Protect, enabling live viewing, playback, and AI-driven analytics directly through the platform.
Q. What networking and power options are available for the UVC-AI-Dome?
A: The camera uses Gigabit Ethernet with PoE (Power over Ethernet), allowing both power and data transmission through a single cable for easy installation.
