Ubiquiti UniFi AI Theta Hub
Please contact us for stocking information.
Experience enhanced AI capabilities with the AI Theta Hub, the perfect remote processing hub for all AI Theta deployments. Easily connect any AI Theta Lens and Audio module with (1) video and (1) audio port. Plus, with support for both Standard and Professional Lenses, you can take advantage of advanced AI features such as people detection and license plate recognition*. Track your device's status and configure settings easily with the 0.96inch color display. And with PoE compatibility, you can easily connect and power your hub. Upgrade your system with the optional AI Theta Audio module for two-way audio. (*License plate recognition only available with Long-Distance and Wide-Angle lenses).
Tech Specs
| Device Specifications | |
|---|---|
| Overview | |
| Dimensions | 140 x 70 x 38 mm (5.5 x 2.8 x 1.5”) |
| Mounting | Wall, ceiling mount (Included) |
| Performance | |

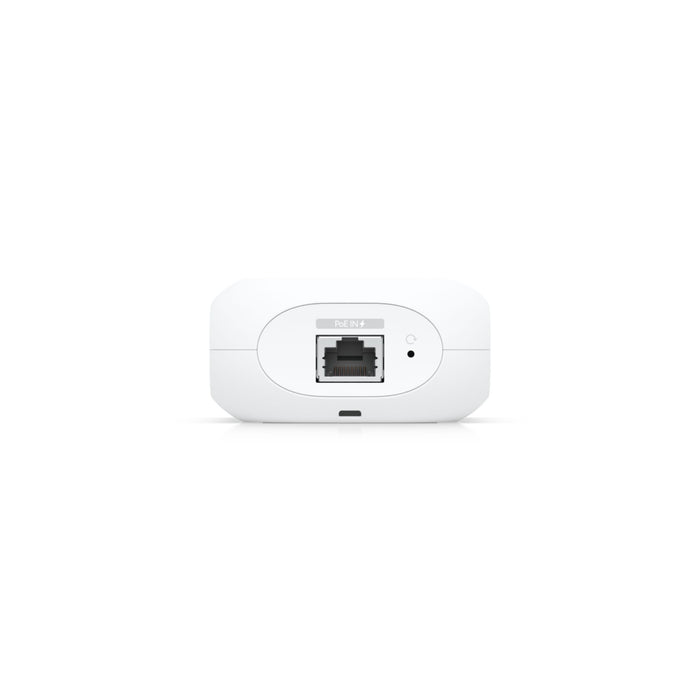

| Networking Interface | GbE RJ45 port Theta audio port Theta lens port |
| Video | Image Settings: Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay |
| Hardware | |
| Processor | Quad-core Arm® Cortex®-A53 based chip |
| Enclosure Material | Aluminum alloy |
| Mounting Material | Aluminum alloy |
| Weight | UVC-AI-Theta-Hub: 330 g (11.6 oz) UVC-AI-Theta-Hub Mount: 35 g (1.2 oz) |
| Power Method | PoE |
| Supported Voltage Range | 37—57V DC |
| Max. Power Consumption | 12.5W |
| Power Output | 5V DC, 1A per port |

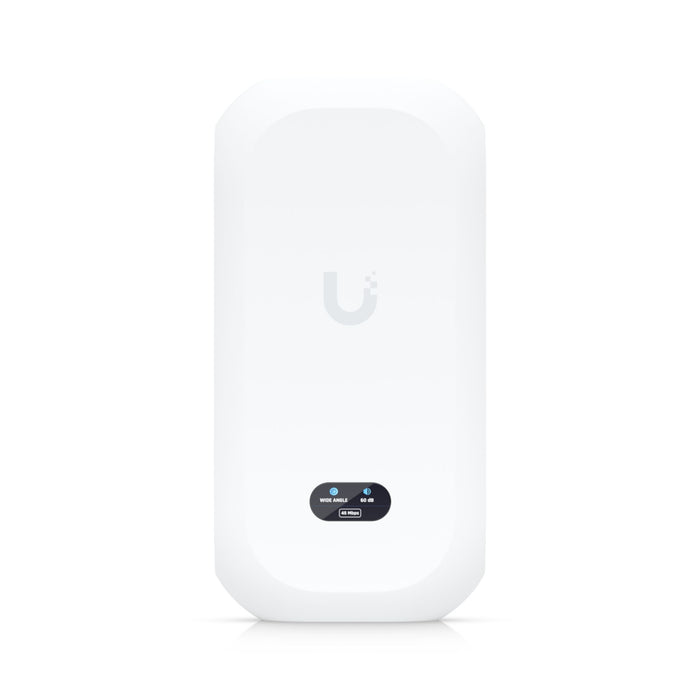

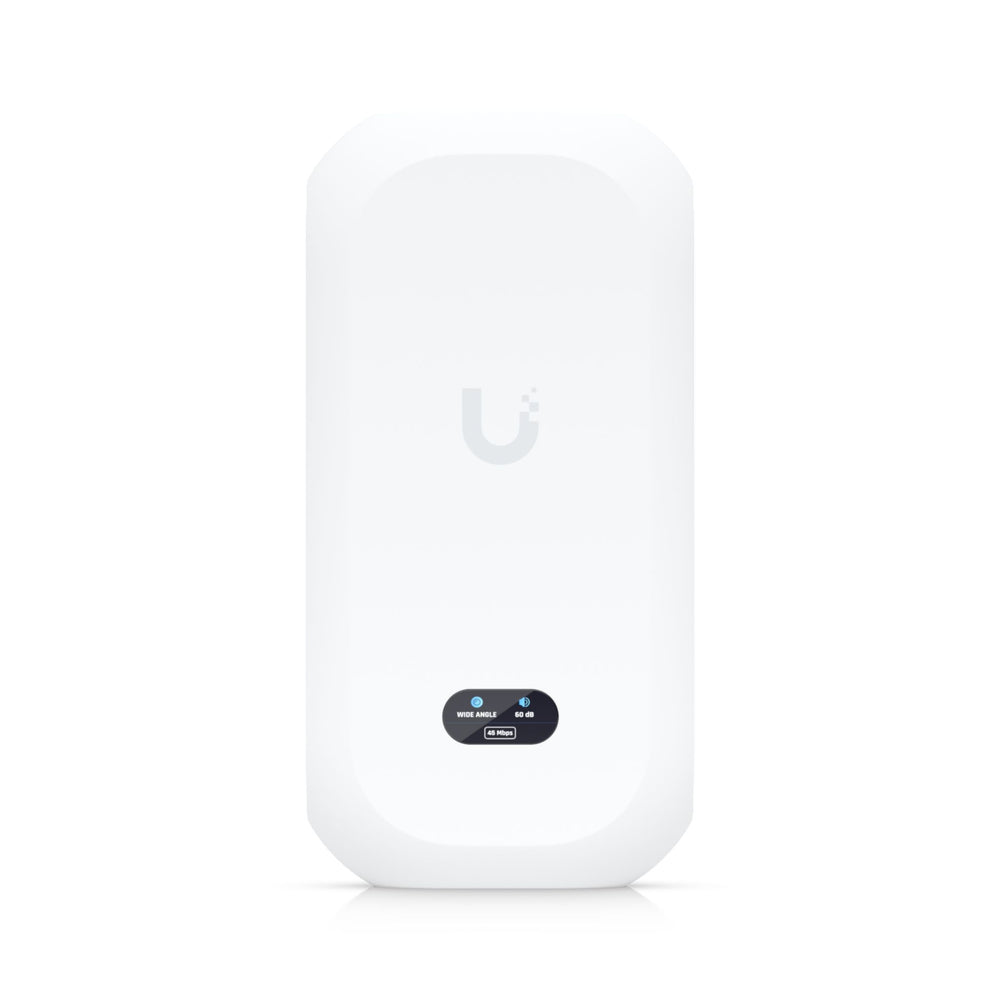

| LCM Display | 0.96" display |
| Button | (1) Factory-reset |
| Ambient Operating Temperature | -20 to 40° C (-4 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| NDAA Compliant | ✓ |
| Certifications | FCC, IC, CE |
FAQs
Q: What is the Ubiquiti UVC-AI-Theta-Hub?
A: The UVC-AI-Theta-Hub is a compact, PoE-powered processing unit designed for UniFi AI Theta deployments. It connects to AI Theta lenses and optional audio modules, enabling advanced AI features such as people detection and license plate recognition.
Q: What are the key features of the UVC-AI-Theta-Hub?
A: Key features include:
-
AI Capabilities: Detect people, read license plates (with Long-Distance and Wide-Angle lenses), and more.
-
Connectivity: One video port and one audio port for lens and audio module connections.
-
Display: 0.96" color display for device status and configuration.
-
Power: Powered via Power over Ethernet (PoE), supporting 37–57V DC.
-
Mounting: Suitable for wall or ceiling mounting.
Q: What are the physical specifications of the UVC-AI-Theta-Hub?
A: The hub measures 140 x 70 x 38 mm (5.5 x 2.8 x 1.5 inches) and weighs 330 g (11.6 oz). Its enclosure is made of aluminum alloy, ensuring durability.
Q: How is the UVC-AI-Theta-Hub powered and managed?
A: The hub is powered via PoE, with a supported voltage range of 37–57V DC. It is managed through the UniFi Protect application, available on both desktop and mobile platforms, allowing for remote monitoring and configuration.
Q: What certifications does the UVC-AI-Theta-Hub have?
A: The UVC-AI-Theta-Hub is certified with FCC, IC, and CE standards, ensuring compliance with international regulations and quality standards.
Resources
AI Theta Hub Installation Guide
