Ubiquiti Door Lock Relay Cable

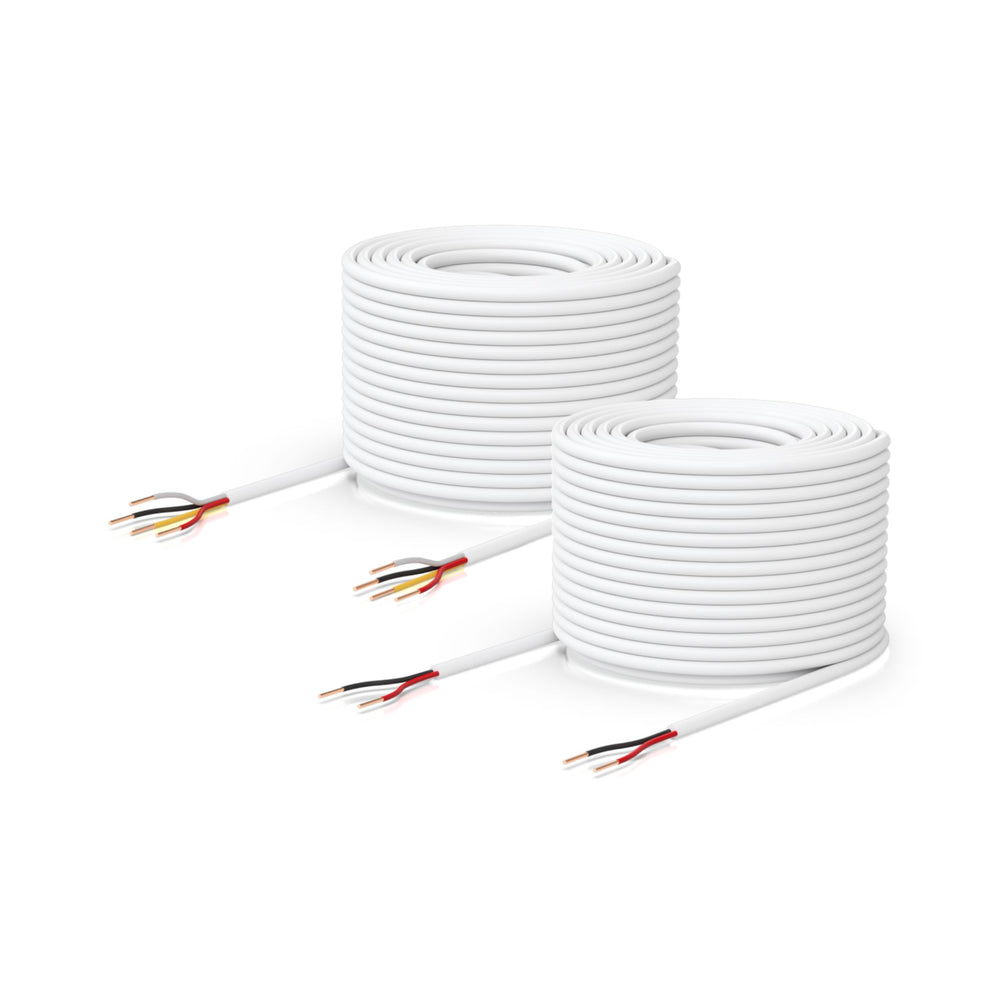

The Ubiquiti Door Lock Relay Cable is a 152.4m (500ft) plenum-rated, low-voltage cable designed for seamless integration with UniFi Access Hub systems. Available in 1-pair or 2-pair configurations, it enables secure connectivity for electric or magnetic locks and optional door position sensors. The 1-pair cable includes (2) 18 AWG conductors, while the 2-pair cable adds (2) 22 AWG conductors for enhanced functionality. Ideal for professional access control installations.
Tech Specs
| Device Specifications | |
|---|---|
| Overview | |
| Length | 152.4 m (500 ft) |
| Material | Conductor: Solid bare copper Jacket: Thermoplastic elastomer (TPE) Insulation: Semi-rigid polyvinyl chloride (SR-PVC) |
| Insulation | UACC-Cable-DoorLockRelay-2P: black/red (18AWG), amber/white (22AWG) UACC-Cable-DoorLockRelay-1P: black/red (18AWG) |
| Current Rating | 18AWG: 2A for 500 ft length 22AWG: 1A for 500 ft length |
| Flame Rating | VW-1 |
| Conductor Wire Gauge | UACC-Cable-DoorLockRelay-2P: 18/22 AWG UACC-Cable-DoorLockRelay-1P: 18 AWG |
| Weight | UACC-Cable-DoorLockRelay-2P: 5.6 kg (12.3 lb) UACC-Cable-DoorLockRelay-1P: 4.58 kg (10.1 lb) |
| Cable | |
| Jacket Outer Diameter | UACC-Cable-DoorLockRelay-2P: 4.5 mm (0.18") UACC-Cable-DoorLockRelay-1P: 4.2 mm (0.17") |
| Jacket Color | White |
| Bend Radius | UACC-Cable-DoorLockRelay-2P: 56 mm (2.2") UACC-Cable-DoorLockRelay-1P: 33 mm (1.3") |
| Pulling Tension | UACC-Cable-DoorLockRelay-2P: 24.2 kgf UACC-Cable-DoorLockRelay-1P: 16.4 kgf |
| Conductor DCR | UACC-Cable-DoorLockRelay-2P: 23.2 ohm/km (18AWG), 59.4 ohm/km (22AWG) UACC-Cable-DoorLockRelay-1P: 23.2 ohm/km (18AWG) |
| Supported Voltage Range | 36V DC |
| Number of Conductors | UACC-Cable-DoorLockRelay-2P: 4 UACC-Cable-DoorLockRelay-1P: 2 |
| Ambient Storage Temperature | -45 to 65° C (-40 to 149° F) |
| Ambient Operating Temperature | -45 to 65° C (-40 to 149° F) |
FAQs
Q1: What is the Ubiquiti UACC-Cable-DoorLockRelay?
A1: The Ubiquiti UACC-Cable-DoorLockRelay is a 500-foot (152.4 m) spool of low-voltage cable designed to connect electric/magnetic locks and door position sensors to UniFi Access Hubs. It is available in two configurations:
-

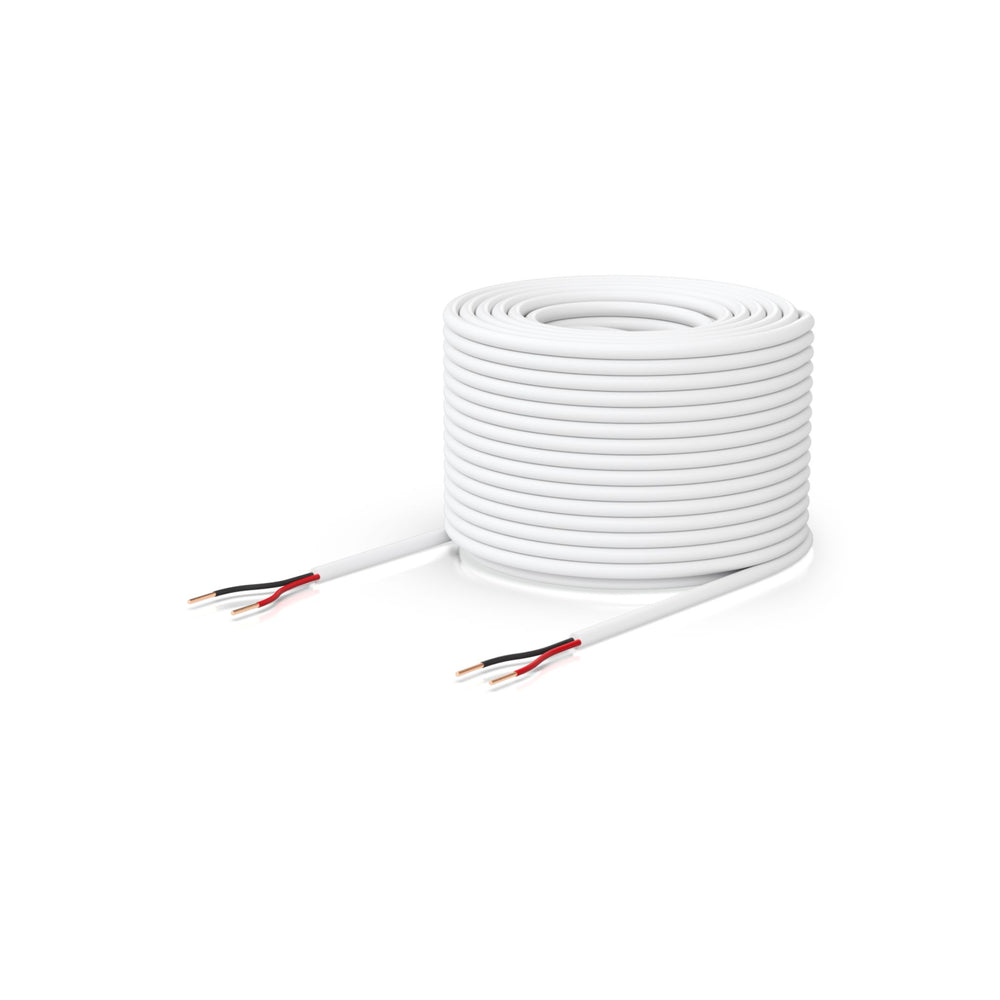

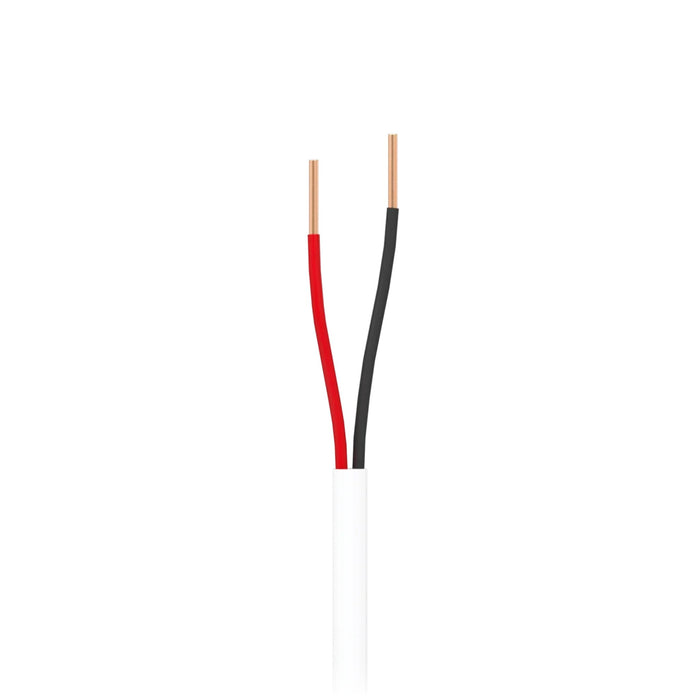

1-Pair Cable: Features two 18 AWG conductors for connecting an electric/magnetic lock.
-

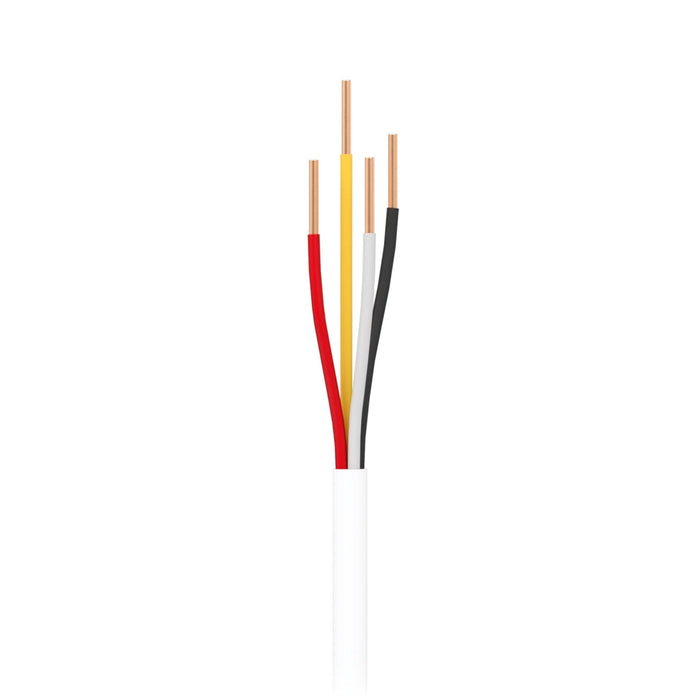

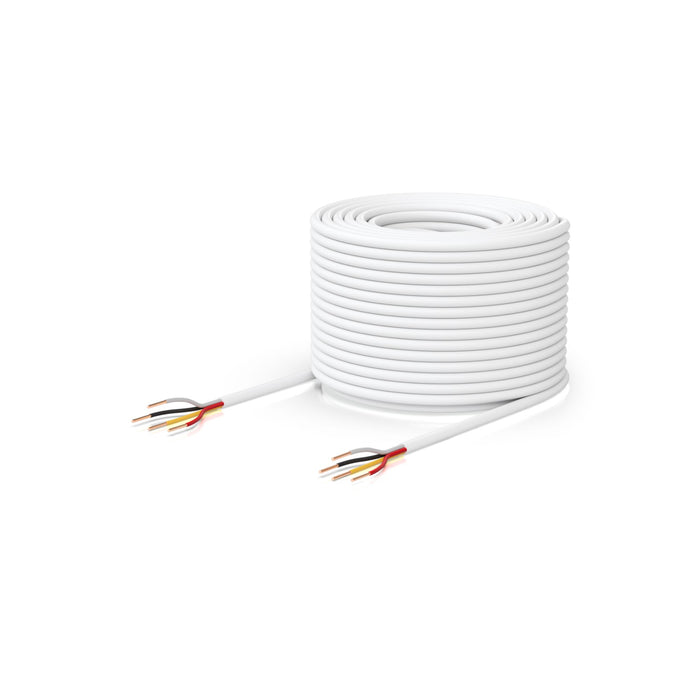

2-Pair Cable: Includes two 18 AWG conductors for the lock and two 22 AWG conductors for a door position sensor.
Q2: What is the maximum current rating for the cable?
A2: The 18 AWG conductors support up to 2A for the 500 ft length, while the 22 AWG conductors support up to 1A for the same length.
Q3: What materials are used in the construction of the cable?
A3: The cable features solid bare copper conductors, a thermoplastic elastomer (TPE) jacket, and semi-rigid polyvinyl chloride (SR-PVC) insulation.
Q4: What is the flame rating of the cable?
A4: The cable has a VW-1 flame rating, indicating it meets specific standards for flame resistance.
Q5: What is the recommended operating temperature range for the cable?
A5: The cable is designed to operate within a temperature range of -45°C to 65°C (-49°F to 149°F), making it suitable for various environmental conditions.
