Ubiquiti PoE++ Adapter (60W)
The Ubiquiti PoE++ Adapter is designed to seamlessly power UniFi PoE++ devices, supporting wireless mesh applications or reducing reliance on PoE switches.
- Delivers robust 60W PoE++ output – Ideal for high-demand devices like the UniFi Access Hub and G4 PTZ Camera.
- Enhanced device protection – Built-in surge, peak pulse, and overcurrent safeguards ensure reliable operation.
- Versatile connectivity – Equipped with RJ45 data input, a PoE++ output, and an AC cable with earth grounding.
- Status at a glance – LED indicator for effortless status monitoring.
Perfect for UniFi deployments, this adapter offers flexibility, reliability, and the power to support advanced networking solutions.
Tech Specs
Click here to see the Ubiquiti UniFi PoE++ Adapter (60W) datasheet.
| Device Specifications | |
|---|---|
| Dimensions | 106 x 63 x 34 mm (4.2 x 2.5 x 1.3") |
| Weight | 210 g (7.4 oz) |
| Output Voltage | 48V DC at 1.25A |
| Rated Voltage | 100—240V AC at 50/60Hz |
| Gigabit LAN Port | ✓ |
| 4-pair Powering | Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-) |

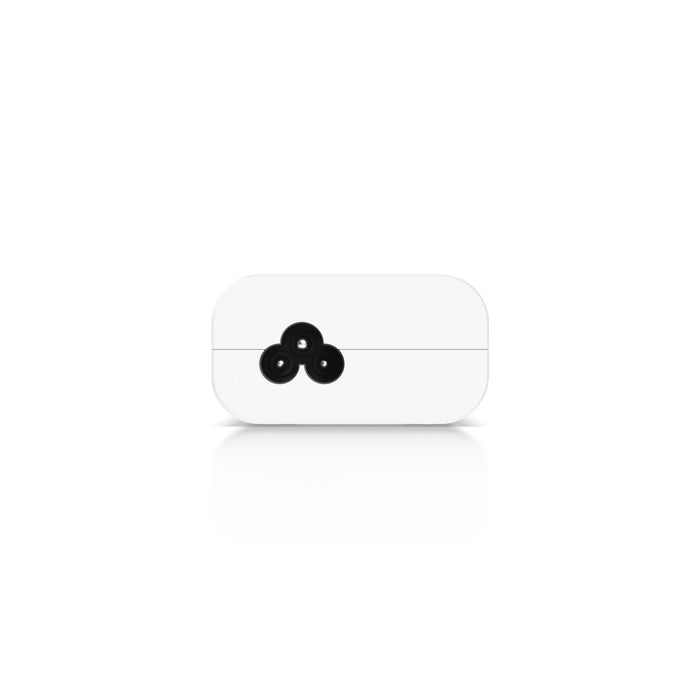

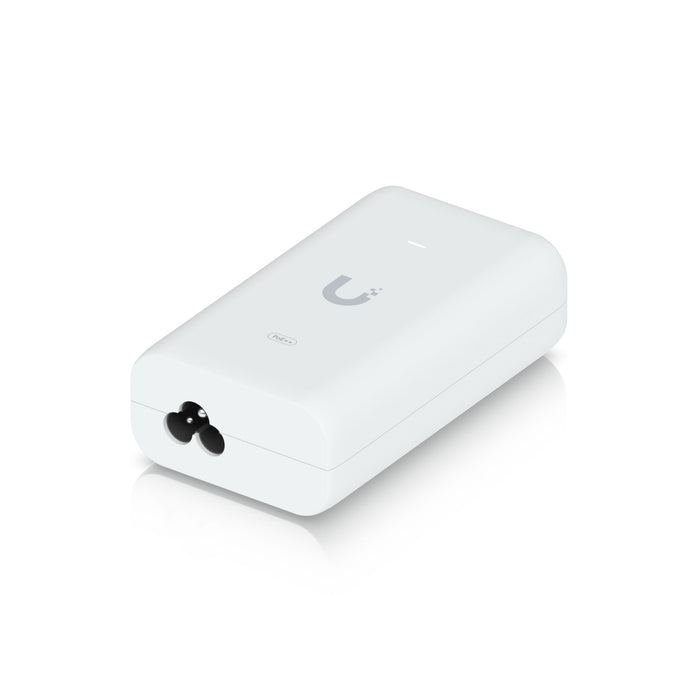

| AC Connector | IEC-320 C6 |
| Clamping Protection | 11V Data, 60V power |

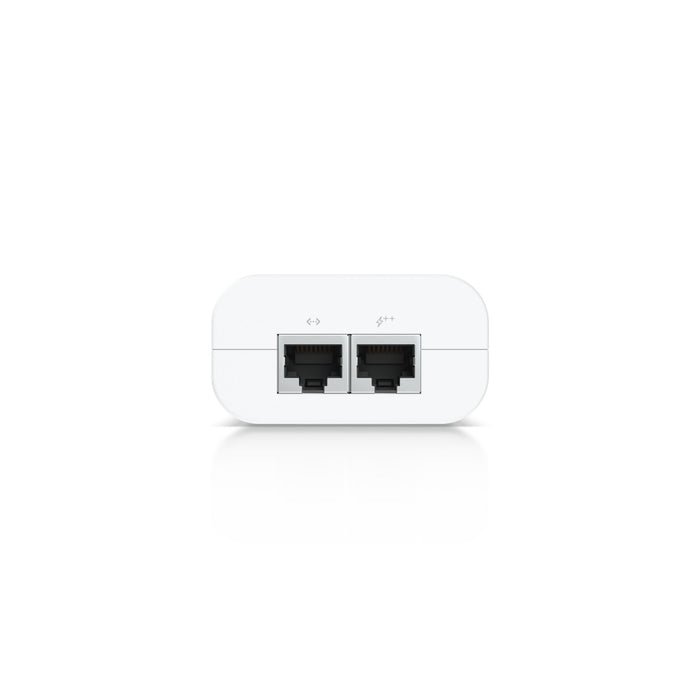

| Data In / PoE | RJ45 Shielded Socket |
| Input Current | 1.3A @ 120V AC |
| Inrush Current | <100A peak @ 120V AC <200A peak @ 230V AC |
| Efficiency | 85+% |
| Switching Frequency | 65 kHz |
| Output Ripple | 1% Max. |
| Line Regulation | ≤ 1% |
| Load Regulation | ≤ 3% |
| Max. PoE+ Wattage per Port by PSE | 60W |
| Max. Surge Discharge | 1500A (8/20 μs) power |
| Peak Pulse Current | 36A (10/1000 μs) data |
| Power Method | Universal AC input, 100—240V AC, 50/60 Hz |
| Power Supply | AC/DC |
| Response Time | <1 ns |
| Shunt Capacitance | <5 pF data |
| Supported Voltage Range | 100—240V AC |
| Surge Protection | Difference and common mode |
| Ambient Storage Temperature | -30 to 70°C (-22 to 158° F) |
| Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
| Ambient Operating Humidity | 10 to 95% noncondensing |
| NDAA Compliant | ✓ |
| Certifications | CE, FCC, IC, UL, UKCA, KC, CCC, KC, RoHS |
FAQs
Q1: What is the Ubiquiti U-PoE++ used for?
A1: The U-PoE++ is a high-power Gigabit Power over Ethernet (PoE) injector that supplies both data and up to 60W of power over a single Ethernet cable to compatible Ubiquiti devices.
Q2: Which devices are compatible with the Ubiquiti U-PoE++?
A2: This injector is compatible with Ubiquiti devices that support high-power PoE (802.3bt standard), including access points, cameras, and other network equipment.
Q3: What is the maximum power output of the Ubiquiti U-PoE++?
A3: The U-PoE++ can deliver up to 60W of power, ensuring sufficient energy for demanding devices requiring high-power PoE.
Q4: Does the Ubiquiti U-PoE++ support Gigabit speeds?
A4: Yes, the injector supports full Gigabit (1 Gbps) data transfer alongside power delivery, ensuring high-performance network connectivity.
Q5: How do I install the Ubiquiti U-PoE++?
A5: Installation is plug-and-play: connect the injector to a power source, then run an Ethernet cable from the injector’s PoE output to your device. No additional configuration is needed.
