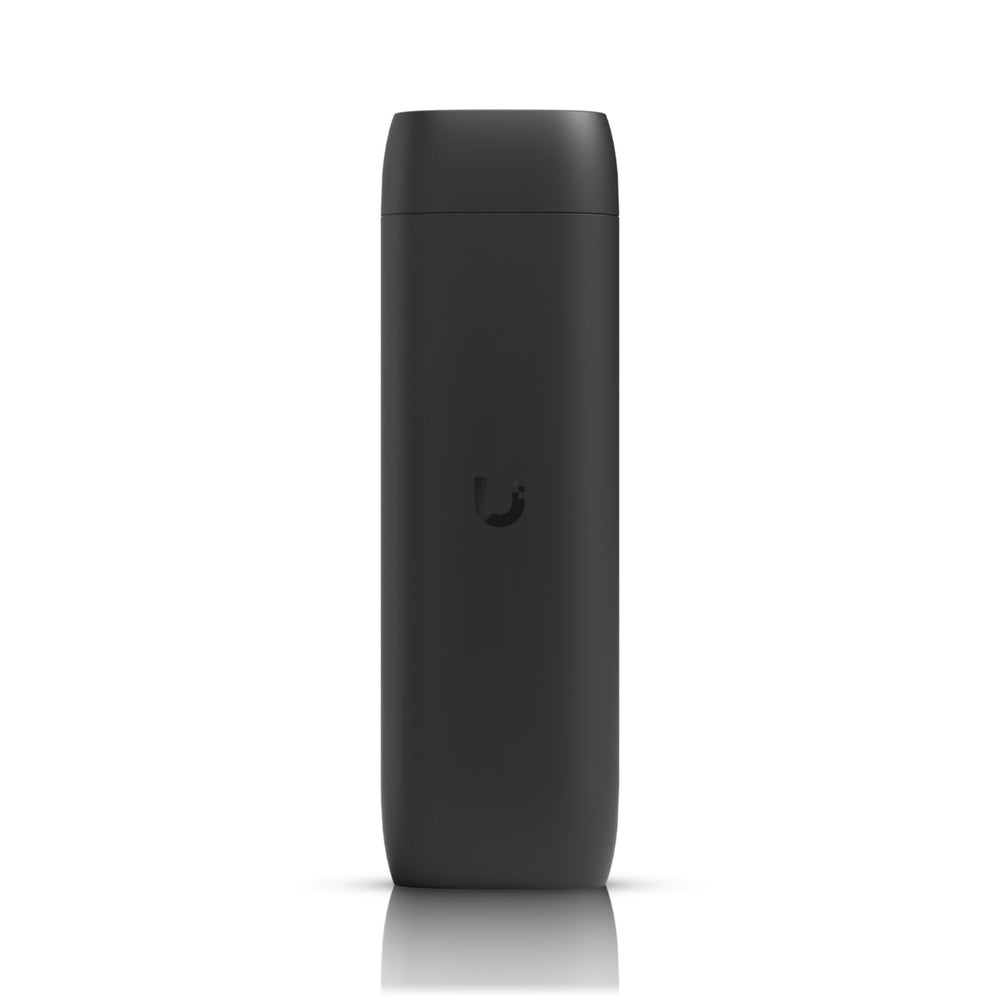

Ubiquiti UniFi Protect Viewport
Please contact us for stocking information.
The UniFi Protect ViewPort allows you to view your UniFi Protect camera feeds on an HDMI display. It uses Power over Ethernet and connects to the local network hosting your cameras and connects via HDMI to a display. The UniFi Protect ViewPort offers 4K video output at 30 frames per second. Protect systems can be viewed in custom high-density camera matrix configurations.
Tech Specs
Click here for the UniFi Protect Viewport datasheet.
| Device Specifications | |
|---|---|
| Overview | |
| Dimensions | Without mount: 150 x 64 x 38.4 mm (5.9 x 2.5 x 1.5") With mount: 152.7 x 69 x 47.8 mm (6 x 2.7 x 1.9") |
| Resolution | Max. camera resolution: Width: 3840 pixels Height: 2160 pixels |
| Networking Interface | (1) GbE RJ45 port |
| Hardware | |
| Power Method | PoE PoE+ input required for PoE output (12.95W) PoE++ input required for PoE+ output (25.5W) |
| Pole Mount Diameter | >45 mm (1.8") on pipe outer diameter |
| Weight | Without mount: 258.3 g (9.1 oz) With mount: 294 g (10.4 oz) |
| Enclosure Material | Polycarbonate |
| Button | Factory-reset |
| Ambient Operating Temperature | -20 to 40° C (-4 to 104° F) |
| Ambient Operating Humidity | 20 to 90% noncondensing |
| NDAA Compliant | ✓ |
| Certifications | FCC, IC, CE |
| Software | |
| Application Requirements |
Web Application: UniFi Protect: Version 5.1 and later Mobile App: UniFi Protect iOS™ and Android™ |
FAQs
Q: What is the Ubiquiti UFP-Viewport and what does it do?
A: The UFP-Viewport is a compact HDMI adapter that connects to your PoE network and displays UniFi Protect camera feeds—up to 16 channels—in custom matrix format on any HDMI display. It supports 4K output at 30 fps.
Q: How is it powered, and what interfaces are available?
A: Powered via 802.3af PoE, the UFP-Viewport draws up to 9.5 W. It includes a 1 GbE RJ45 Ethernet interface for network and a 4K-capable HDMI port for video output.
Q: What are its physical dimensions and build quality?
A: The device measures 157 × 52 × 37 mm, weighs 230 g (252 g with TV mount), and uses durable polycarbonate for both the enclosure and mount.
Q: How is the UFP-Viewport set up and controlled?
A: Setup is simple and handled through the UniFi Protect app. It auto-detects the device, allows configuration, and supports seamless matrix layout selection for live feeds.
Q: What operating conditions and certifications does it meet?
A: The device operates reliably between 0–40 °C (32–104 °F) and in 20–80% non-condensing humidity. It’s ESD/EMP-protected, NDAA-compliant, and certified to FCC, IC, and CE standards.
