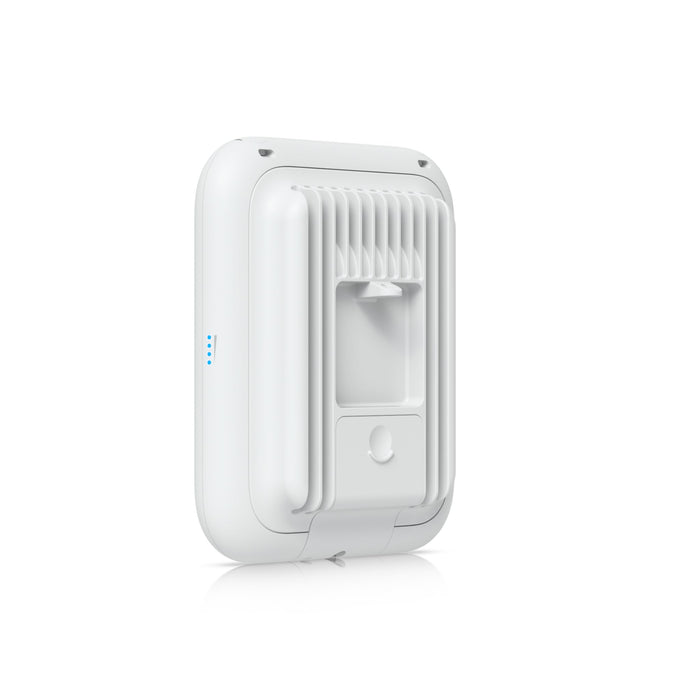

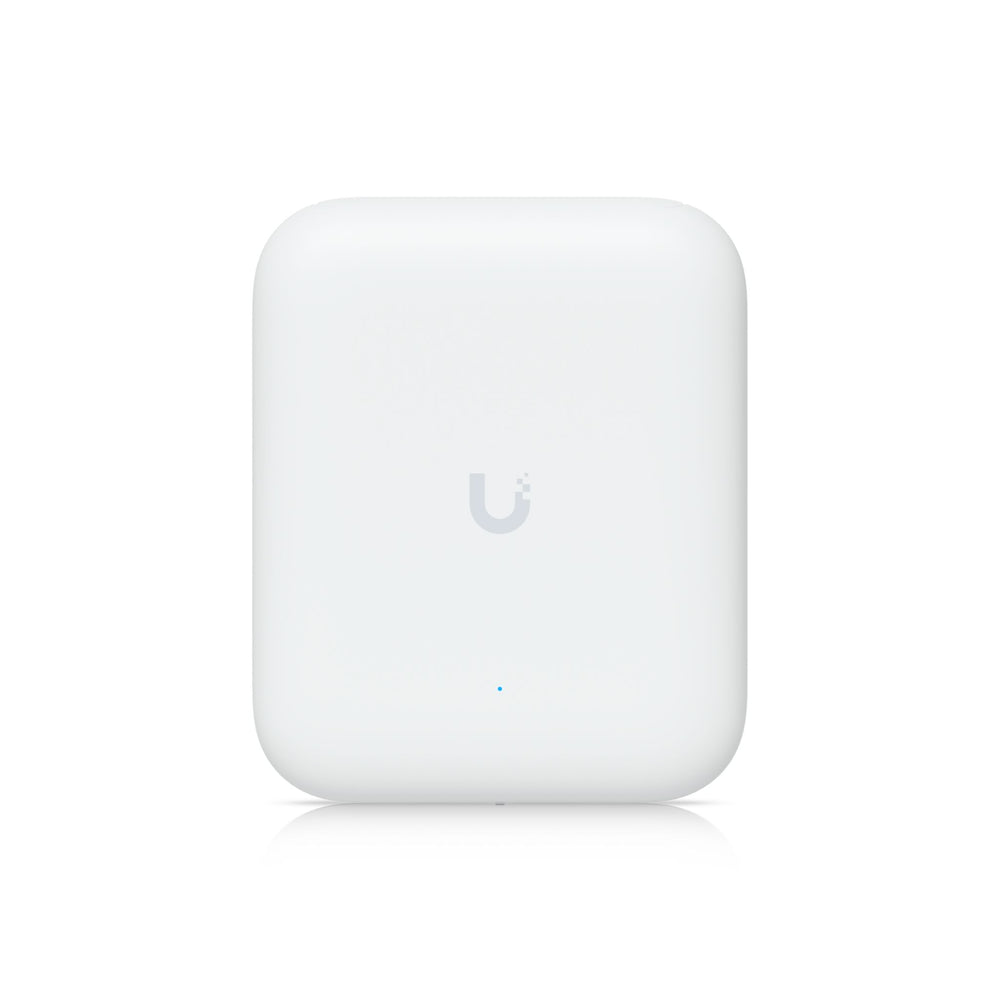

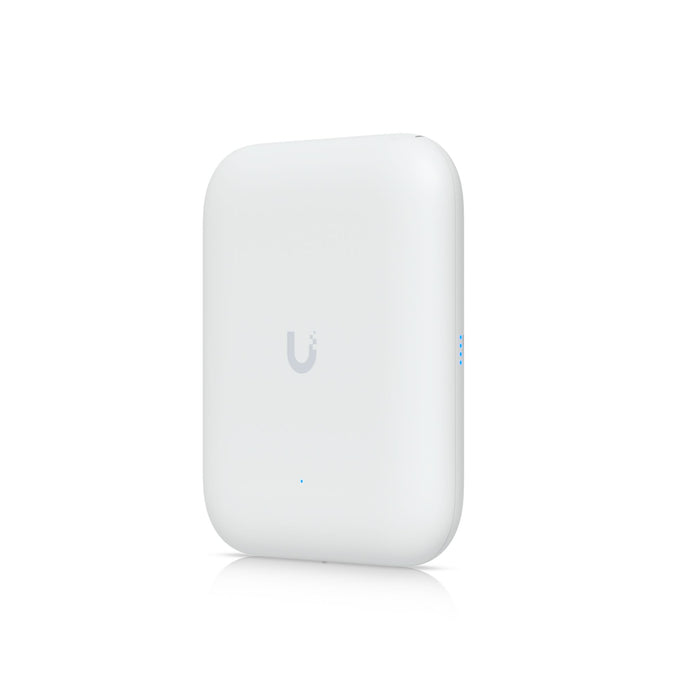

Ubiquiti UniFi U7 Pro Outdoor
Experience seamless connectivity with the Ubiquiti U7 Pro Outdoor WiFi 7 Access Point, designed for those who demand exceptional performance in any weather. This IP67-rated device ensures robust, long-range coverage up to 465 m² (5,000 ft²) in open areas, making it perfect for outdoor and exposed locations. Its advanced AFC-enabled 6 GHz support and six spatial streams deliver fast, reliable connections for over 300 devices.

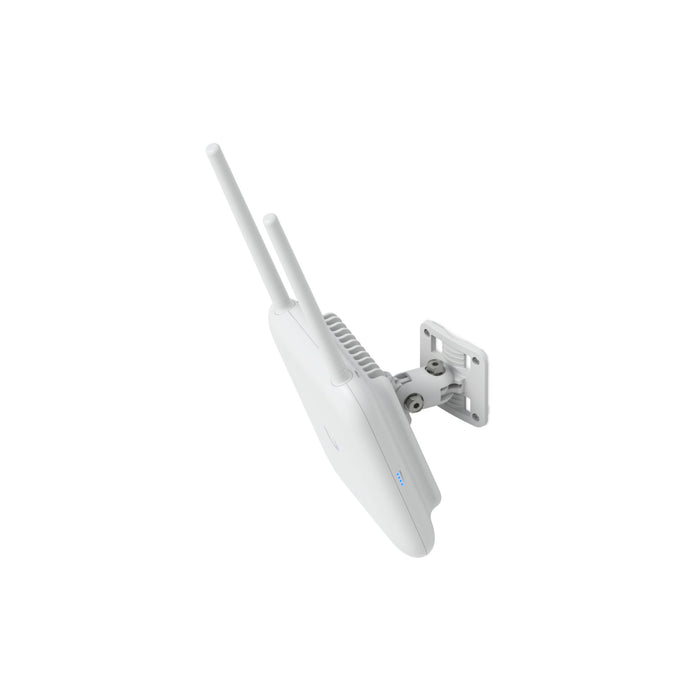

Tailored to your needs, the U7 Pro Outdoor features software-switchable antennas, allowing you to choose between its built-in directional antenna or the included external omni antennas for flexible coverage options. Installation is simple, thanks to PoE+ power and an articulation bracket for wall or pole mounting. With its 2.5 GbE uplink, the U7 Pro Outdoor is your go-to solution for powerful, hassle-free WiFi 7 connectivity.
Tech Specs
Click here to see the U7 Pro Outdoor datasheet here
| Device Specifications | |
|---|---|
| Overview | |
| Dimensions | Without mount: 170 x 208 x 66.5 mm (6.7 x 8.2 x 2.6") With mount: 170 x 208 x 121.8 mm (6.7 x 8.2 x 4.8") |
| WiFi Standard | WiFi 7 |
| Spatial Streams | 6 |
| Coverage Area | 465 m² (5,000 ft²) |
| Max. Client Count | 300+ |
| Uplink | 2.5 GbE |
| Mounting | Wall, Pole (Mounts Included) |
| Weatherproofing | IPX6 IP67 (With cable-gland door kit) |
| Power Method | PoE+ |
| Performance | |
| MIMO | 6 GHz: 2 x 2 (DL/UL MU-MIMO) 5 GHz: 2 x 2 (DL/UL MU-MIMO) 2.4 GHz: 2 x 2 (DL/UL MU-MIMO) |
| Max. Data Rate | 6 GHz: 5.8 Gbps (BW320) 5 GHz: 4.3 Gbps (BW240) 2.4 GHz: 688 Mbps (BW40) |
| Antenna Gain | 6 GHz: Directional internal: 10 dBi, 90° x 45° 5 GHz: Directional internal: 11 dBi, 90° x 45° External omni: 8 dBi, 360° x 15° 2.4 GHz: Directional internal: 8 dBi, 90° x 90° External omni: 6 dBi, 360° x 15° |
| Max. TX Power | 6 GHz: 26 dBm 5 GHz: 26 dBm 2.4 GHz: 23 dBm |
| Max. BSSIDs | 8 per Radio |
| Supported Data Rates | 802.11be (WiFi 7): 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320) 802.11ax (WiFi 6/6E): 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160) 802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160) 802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| Features | |
| Wireless Capabilities | Wireless Meshing ✓ Band Steering ✓ 802.11v BSS Transition Management ✓ 802.11r Fast Roaming ✓ 802.11k Radio Resource Management (RRM) ✓ Advanced Radio Management ✓ Passpoint (Hotspot 2.0) ✓ Captive Hotspot Portal Custom Branding Landing Page ✓ Voucher Authentication ✓ Payment-Based Authentication ✓ External Portal Server Support ✓ Password Authentication ✓ Guest Network Isolation ✓ Private Pre-Shared Key (PPSK) ✓ WiFi Speed Limiting ✓ Client Device Isolation ✓ WiFi Schedules ✓ RADIUS over TLS (RadSec) ✓ Dynamic RADIUS-assigned VLAN ✓ |
| Hardware | |
| Max. Power Consumption | 21W |
| Supported Voltage Range | 42.5—57V DC |
| Networking Interface | (1) 1/2.5 GbE RJ45 port |
| Weight | Device: 1.2 kg (2.6 lb) With mount: 1.33 kg (2.9 lb) |
| Wind Loading | 74.6 N at 200 km/h (16.8 lbf at 125 mph) |
| Pole Mount Diameter | 1–2.5" (25–63.5 mm) |
| Management | Ethernet |
| Enclosure Material | UV-stabilized polycarbonate, aluminum alloy |
| Mount Material | UV-stabilized polycarbonate |
| LEDs | (1) Power: White/Blue (4) Mesh signal: Blue |
| NDAA Compliant | ✓ |
| Certifications | FCC, IC |
| Ambient Operating Temperature | -30 to 60° C (-22 to 140° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Software | |
| Application Requirements | UniFi Network Version 9.0.114 and later Mobile App: iOS™ version 10.20.2 and later Android™ version 10.21.7 and later |
FAQs
Q: What is the Ubiquiti U7-Pro-Outdoor and what is it used for?
A: The U7-Pro-Outdoor is a WiFi 7 access point designed for outdoor deployments, delivering high-speed, low-latency coverage in commercial and enterprise exterior spaces.
Q: What frequency bands and wireless standards does the U7-Pro-Outdoor support?
A: It supports tri-band WiFi 7 (2.4 GHz, 5 GHz, and 6 GHz) with 4×4 MU-MIMO, offering ultra-fast throughput, reduced latency, and improved client density for outdoor networks.
Q: How is the U7-Pro-Outdoor powered and connected?
A: The device uses a 2.5 GbE RJ45 port with 802.3at PoE+ support, allowing both data and power to be delivered via a single cable for clean, easy outdoor installation.
Q: What makes the U7-Pro-Outdoor suitable for outdoor deployments?
A: It features weather-resistant housing, high-gain antennas, and advanced RF design to provide reliable WiFi coverage in open-air and exposed environments.
Q: How is the U7-Pro-Outdoor managed?
A: It integrates with the UniFi Network Application for centralised configuration, monitoring, analytics, and firmware updates, even in multi-device outdoor networks.
