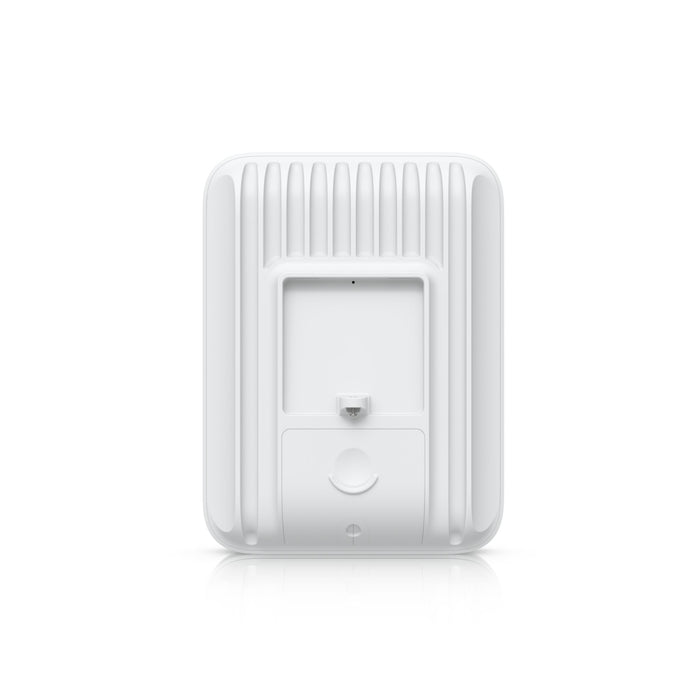

Ubiquiti UniFi 5G Max Outdoor
Please contact us for stocking information.
Ubiquiti UniFi 5G Max Outdoor – 3.4 Gbps 5G Outdoor Modem with 2.5 GbE PoE and Dual SIM
The Ubiquiti UniFi 5G Max Outdoor is a high-performance 5G modem designed to extend UniFi consoles and Cloud Gateways with ultra-fast mobile WAN connectivity in outdoor environments. Supporting download speeds of up to 3.4 Gbps, it delivers low-latency performance suitable for primary, load-balanced, or failover WAN deployments.
Engineered for external installation, the device features integrated directional antennas to optimise signal reception in challenging locations. A 2.5 GbE PoE-in RJ45 port provides both power and data over a single cable, simplifying wall or pole mounting.
Dual Nano-SIM support enables seamless failover between mobile networks to help maintain consistent connectivity. eSIM is supported, with remote SIM functionality scheduled for a future update. The device adopts automatically within UniFi as a virtual WAN interface for streamlined configuration and centralised management.
Tech Specs
View the Ubiquiti UniFi 5G Max Outdoor datasheet here.
| Device Specifications | |
|---|---|
| Overview | |
| Dimensions | Device: 220 x 165 x 66.9 mm (8.7 x 6.5 x 2.6") With mount: 220 x 165 x 122 mm (8.7 x 6.5 x 4.8") |
| Networking Interface | (1) 2.5 GbE RJ45 port 5G NR and LTE radio |
| SIM | (1) Nano SIM (1) Nano-SIM or eSIM |
| PoE Interface | (1) PoE input |
| Mounting | Pole mount, wall mount (Included) |
| Weatherproofing | IPX6 IP67 (With cable-gland door kit) |
| Mechanical | |
| Weight | Device: 1.2 kg (2.6 lb) Mount: 130 g (4.6 oz) |
| Enclosure Material | Aluminum-alloy, UV-stabilized polycarbonate |
| Mount Material | UV-stabilized polycarbonate |
| Pole Mount Diameter | 1–2.5" (25–63.5 mm) on pipe outer diameter |
| Wind Loading | 91N at 200 km/h (20.45 lbf at 125 mph) |
| Hardware | |
| Management | Ethernet 5G NR |
| Category | 5G NR |
| Frequency Bands |
5G NR: n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n71, n75, n76, n77, n78, n79 4G LTE: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71 3G UMTS: B1, B2, B4, B5, B8, B19 |
| Max. TX Power | 5G HPUE power class 2: 26 dBm 4G HPUE power class 2: 25 dBm |
| Peak Data Speed | 5G NSA: Downlink 3.4 Gbps / Uplink 560 Mbps 5G SA: Downlink 1.8 Gbps / Uplink 650 Mbps 4G LTE: Downlink 1.6 Gbps / Uplink 210 Mbps |
| Antennas | (6) Embedded cellular antennas, including (2) high-gain for downlink: peak 9 dBi, 85°x85° |
| Max. Power Consumption | 14.5W |
| Power Method | PoE |
| Buttons | (1) Factory reset |
| LEDs | ✓ |
| Ambient Operating Temperature | -40 to 65 °C (-40 to 149 °F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| NDAA Compliant | ✓ |
| Certifications | FCC, IC, CE, PTCRB, GCF, AT&T, T-Mobile, Verizon |
FAQs
Q1. What is the UniFi 5G Max Outdoor (U5G-Max-Outdoor) used for?
A. The UniFi 5G Max Outdoor (U5G-Max-Outdoor) is a high-performance 5G outdoor access point designed to deliver ultra-fast wireless connectivity. It extends UniFi network coverage in outdoor environments such as campuses, stadiums, and large public areas, supporting high-density client connections.
Q2. Does the U5G-Max-Outdoor support both 5G and LTE networks?
A. Yes. The UniFi 5G Max Outdoor (U5G-Max-Outdoor) supports both 5G and LTE networks, automatically selecting the fastest available connection. This ensures reliable, high-speed internet access even in areas with mixed cellular coverage.
Q3. How does the U5G-Max-Outdoor integrate with UniFi Network management?
A. The UniFi 5G Max Outdoor (U5G-Max-Outdoor) integrates seamlessly with the UniFi Network application, allowing remote configuration, monitoring, and management of your network. It can be managed alongside other UniFi devices for unified control of your wired and wireless infrastructure.
Q4. Is the UniFi 5G Max Outdoor suitable for harsh outdoor conditions?
A. Yes. The U5G-Max-Outdoor features a rugged, weather-resistant enclosure rated for outdoor use, capable of withstanding extreme temperatures, rain, and dust, making it ideal for rooftop, pole, or wall installations.
Q5. What are the installation and powering options for the U5G-Max-Outdoor?
A. The device supports Power over Ethernet (PoE) for simplified deployment and can be mounted on poles, walls, or flat surfaces. Its compact design allows easy installation in a variety of outdoor environments.
