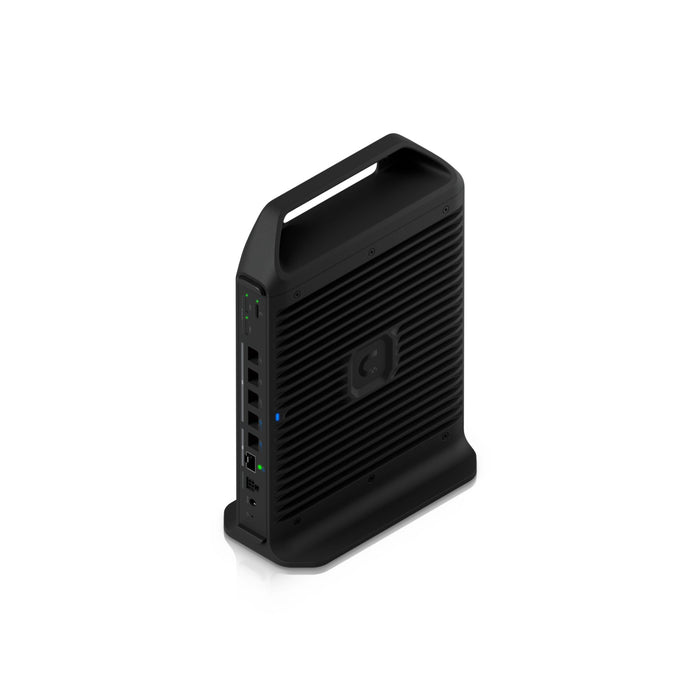

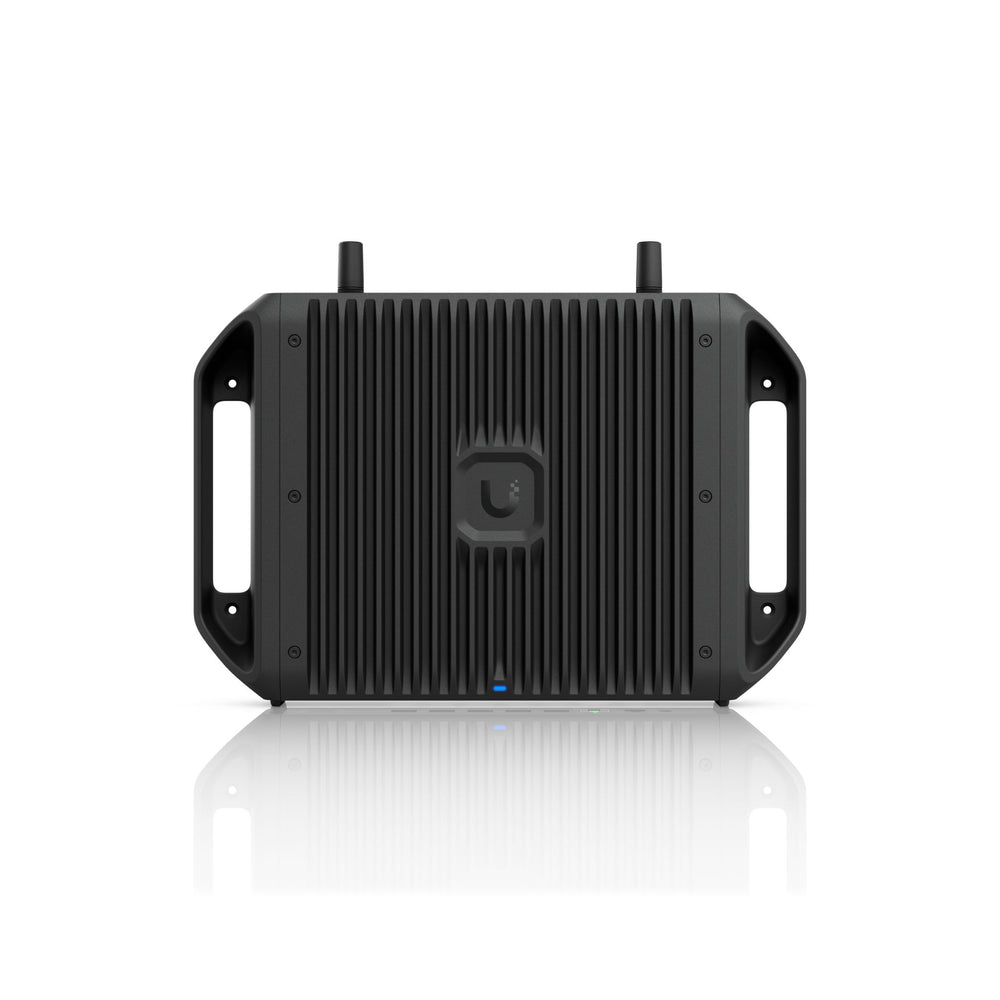

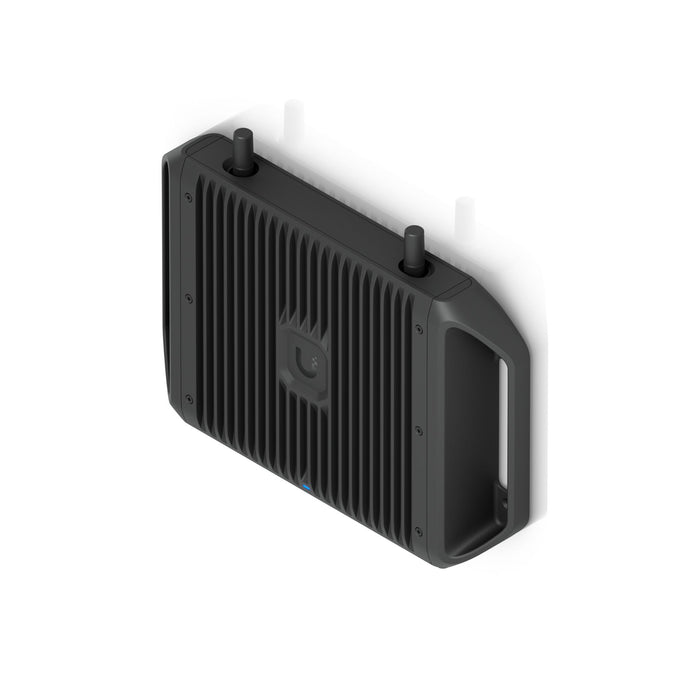

Ubiquiti UniFi Cloud Gateway Industrial
Ubiquiti UniFi Cloud Gateway Industrial – Rugged 10 GbE UniFi Gateway with 350W System Power
The Ubiquiti UniFi Cloud Gateway Industrial is a rugged, fanless 10 GbE gateway built for high-density UniFi deployments in demanding environments. Designed for industrial and edge installations, it delivers up to 350W of total system power, supporting large-scale PoE networks that require both performance and reliability.
It features multiple 2.5 GbE ports, a 10 GbE PoE++ RJ45 WAN port, and a 10G SFP+ WAN port, providing flexible high-speed connectivity for modern enterprise and industrial networks. Dual SIM slots support remote management scenarios, while microSD storage enables full UniFi application support, including routing, security, and camera management.
With integrated dual-band 4-stream WiFi 7 and support for over 50 UniFi devices and up to 15 HD, 4K, or 8K cameras, the UniFi Cloud Gateway Industrial is designed for scalable deployments. Its robust fanless design ensures silent operation and dependable performance in harsh or space-constrained environments.
Tech Specs
View the Ubiquiti UniFi Cloud Gateway Industrial datasheet here.
| Device Specifications | |
|---|---|
| Overview | |
| Dimensions | Device: 307.9 x 203.5 x 43.7 mm (12.1 x 8 x 1.7") Table stand: 203.5 x 100.2 x 21.9 mm (8 x 3.9 x 0.9") |
| UniFi Application Suite | Network ✓ Protect ✓ Access ✓ Talk ✓ Connect ✓ |
| Managed UniFi Devices | 50+ |
| Managed Cameras | (15) HD (8) 2K (5) 4K |
| Managed Access Hubs | 50 |
| Simultaneous Users Connected | 500+ |
| Max. WAN Port Count | 5 |
| Default WAN Ports | (1) 10G SFP+ (1) 10 GbE RJ45 (1) 2.5 GbE RJ45 |
| Port Layout |
2.5 GbE RJ45 4 (2 PoE+++, 2 PoE+) (2.5G/1G/100M) 10 GbE RJ45 1 (PoE+++) (10G/5G/2.5G/1G/100M) 10G SFP+ 1 (10G/1G) |
| IDS/IPS Throughput | 5 Gbps |
| Form Factor | Wall-mounted Compact desktop (Table stand included) Rack mount (Accessory sold separately) |
| Coverage Area | 115 m² (1,250 ft²) |
| Security | |
| Security Features | Stateful Firewall ✓ Application-Aware Layer 7 Firewall ✓ DPI & Traffic Identification ✓ Zone-Based Firewall Filtering ✓ Content Filtering ✓ Intrusion Prevention (IPS/IDS) ✓ Ad Blocking ✓ IDS/IPS Signatures: 55,000+ with CyberSecure VLAN/Subnet Segmentation ✓ |
| VPN & SD-WAN | |
| Features | License-Free SD-WAN ✓ Site Magic ✓ IPsec ✓ OpenVPN ✓ Identity Endpoint One-Click VPN ✓ Teleport Zero-Configuration VPN ✓ WireGuard ✓ L2TP ✓ |
| Networking | |
| Networking Features | Multi-WAN Load Balancing ✓ OSPF Dynamic Routing ✓ Advanced QoS ✓ Multicast DNS (mDNS) ✓ Advanced NAT ✓ Integrated RADIUS Server ✓ RADIUS over TLS (RadSec) ✓ UniFi LTE Backup Failover ✓ Internet Quality Reporting ✓ MAC Address Table: 4,000 Virtual Network Override ✓ |
| Integrated WiFi | |
| WiFi Standard | 802.11a/b/g/n/ac/ax/be (WiFi 6, WiFi 7) |
| Throughput | 5 GHz: 4.3 Gbps 2.4 GHz: 688 Mbps |
| MIMO | 5 GHz: 2×2 MU-MIMO 2.4 GHz: 2×2 MU-MIMO |
| Max TX Power | 5 GHz: 26 dBm 2.4 GHz: 23 dBm |
| Hardware | |
| NVR Storage | Pre-installed 128 GB microSD |
| PoE Budget | DC input: 270W ATX power: 75W |
| Max Power Consumption | 28W (excluding PoE output) |
| Processor | Quad-core ARM® Cortex®-A73 at 2.2 GHz |
| System Memory | 3 GB |
| Weight | Device: 2.4 kg (5.3 lb) Table stand: 321 g (11.3 oz) |
| Operating Temperature | -30 to 50° C (-22 to 122° F) |
| Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Software | |
| Application Requirements | Web Application UniFi iOS™: Version 10.32.0 and later Android™: Version 10.35.0 and later |
FAQs
Q1. What is the Ubiquiti Cloud Gateway Industrial (UCG-Industrial) used for?
A. The Ubiquiti Cloud Gateway Industrial (UCG-Industrial) is an industrial-grade network gateway designed to manage and secure UniFi deployments in harsh environments. It combines routing, firewall protection, VPN support, and UniFi Network management in a ruggedised enclosure suitable for factories, outdoor cabinets, and utility installations.
Q2. Does the Ubiquiti Cloud Gateway Industrial (UCG-Industrial) support UniFi Network management without a separate controller?
A. Yes. The Ubiquiti Cloud Gateway Industrial (UCG-Industrial) runs the UniFi Network application locally, allowing you to configure, monitor, and manage UniFi devices without requiring an external Cloud Key, server, or hosted controller.
Q3. What networking and security features does the UCG-Industrial provide?
A. The gateway delivers advanced Layer 3 routing, stateful firewall protection, VLAN segmentation, traffic management, and secure remote access via VPN. These features help protect industrial networks while ensuring reliable connectivity between sites and remote operators.
Q4. Is the Ubiquiti Cloud Gateway Industrial (UCG-Industrial) suitable for outdoor or harsh environments?
A. Yes. The Ubiquiti Cloud Gateway Industrial (UCG-Industrial) features an industrial-rated enclosure designed to withstand extreme temperatures, vibration, and electrically noisy environments, making it ideal for roadside cabinets, warehouses, and manufacturing facilities.
Q5. How is the UCG-Industrial powered and installed in industrial deployments?
A. The device supports industrial power input options and is designed for DIN-rail or wall mounting, enabling straightforward installation inside control panels, network cabinets, or utility enclosures.
