Ubiquiti UniFi WAN Switch
Please contact us for stocking information.

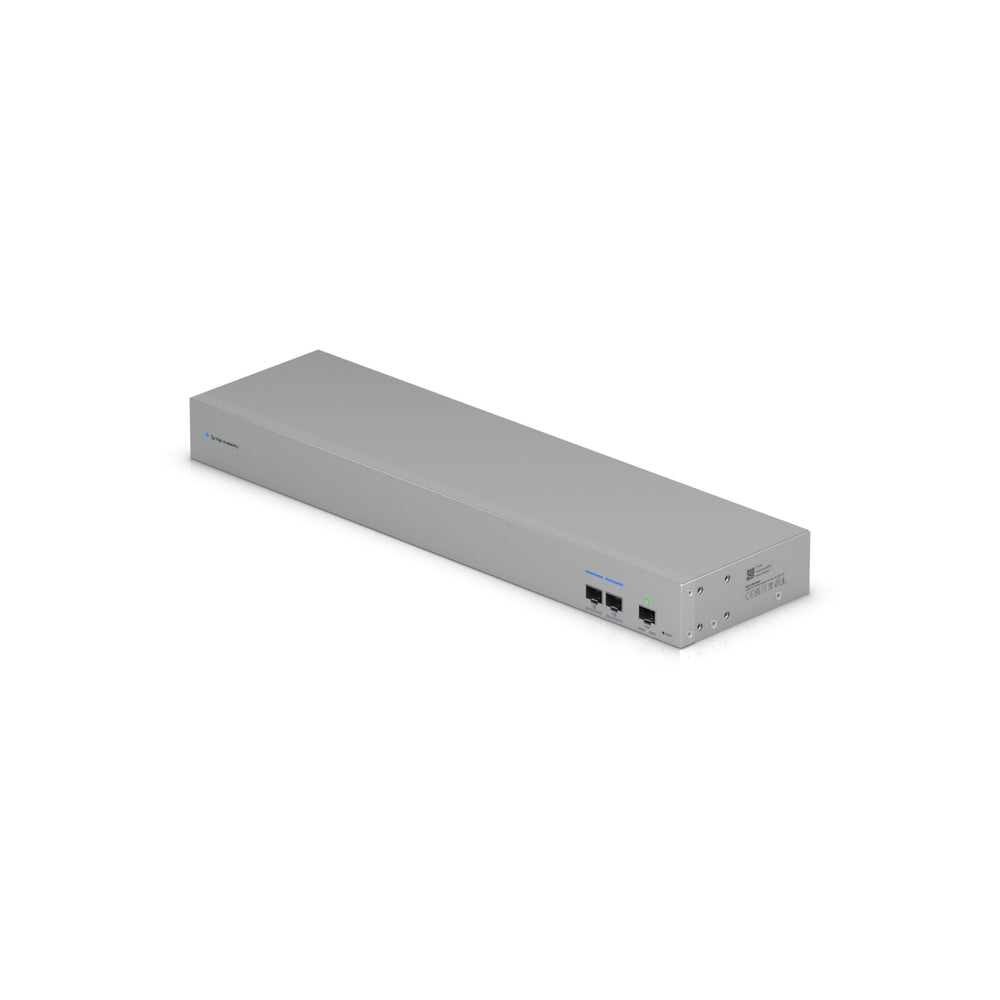

UniFi WAN Switch – 10G SFP+ WAN Switch for UniFi Gateway High Availability

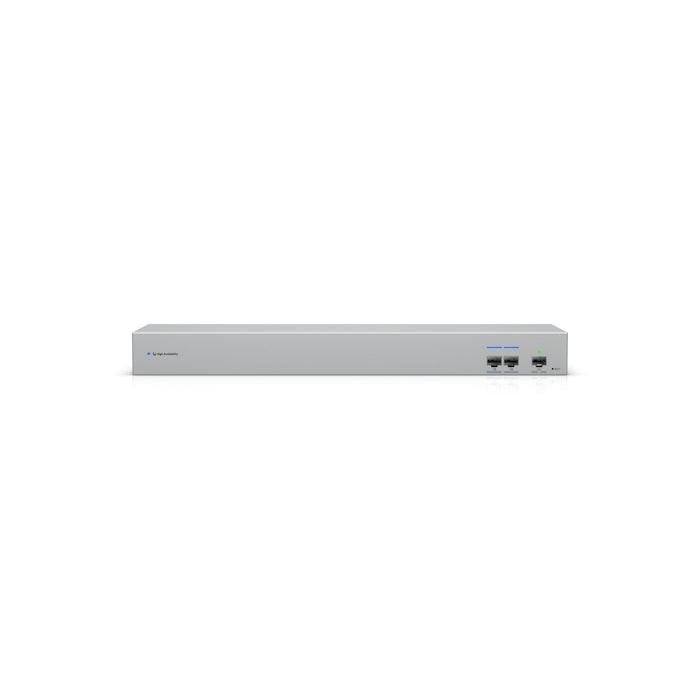

The UniFi WAN Switch is a 10G SFP+ switch designed to link two UniFi Gateways in Shadow Mode High Availability to a single ISP. With one 10G SFP+ uplink port and two 10G SFP+ downlink ports, it ensures continuous connectivity by enabling seamless failover between gateways.

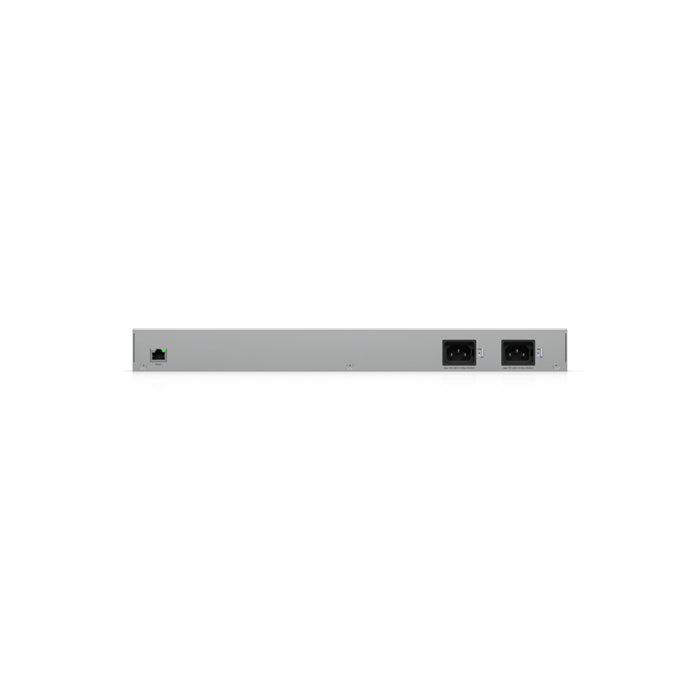

Engineered for resilience, the switch features dual AC inputs for power redundancy, reducing downtime risk in critical deployments. A dedicated Gigabit Ethernet port provides management through the UniFi Network application, offering centralised monitoring and configuration.
For ISP failover deployments, an additional UniFi WAN Switch can be added to extend redundancy and ensure uninterrupted service. Compact, reliable, and built for professional networks, the UniFi WAN Switch is an essential component for enterprise environments where high availability is a priority.
Tech Specs
View the Ubiquiti UniFi WAN Switch datasheet here.
| Device Specifications | |
|---|---|
| Overview | |
| Dimensions | 442.4 x 120 x 43.7 mm |
| Port Layout | 1 GbE RJ45 1 (1G/100M/10M) 10G SFP+ 3 (10G/1G) |
| Redundancy | (2) AC inputs |
| Form Factor | Rack mount (1U) |
| Performance | |
| Switching Capacity | 20 Gbps |
| Total Non-Blocking Throughput | 10 Gbps |
| Forwarding Rate | 15 Mpps |
| Hardware | |
| Max. Power Consumption | 13W |
| Power Method | (2) Universal input, 100—240V AC, 50/60 Hz |
| Power Input Method | AC input |
| Power Supply | (2) AC/DC, internal, 36W |
| Supported Voltage Range | 100—240V AC |
| Management | Ethernet |
| Weight | Without mounting brackets: 2.2 kg (4.85 lb) With mounting brackets: 2.3 kg (5.1 lb) |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |
| ESD Protection | Air: ± 16kV, contact: ± 22kV |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| LEDs | Ethernet ✓ SFP+ ✓ System ✓ |
| Certifications | CE, FCC, IC |
| NDAA Compliant | ✓ |
| Software | |
| Application Requirements | UniFi Network Version 9.1.119 and later |
FAQs
Q: What is the Ubiquiti USW-WAN and what is it used for?
A: The USW-WAN is a managed 10 GbE switch designed to provide high-availability WAN connectivity for UniFi networks, linking multiple gateways to a single ISP for redundancy.
Q: How are the ports on the USW-WAN configured?
A: It features multiple 10 GbE RJ45 ports for WAN connections to UniFi Gateways and includes dedicated management ports for out-of-band configuration.
Q: What redundancy features does the USW-WAN offer?
A: The switch includes dual AC power inputs for failover and is designed for high-availability setups, supporting seamless gateway failover in enterprise networks.
Q: What performance does the USW-WAN deliver?
A: It offers non-blocking 10 GbE throughput with low-latency switching, capable of handling high-speed WAN traffic for multiple gateways simultaneously.
Q: How is the USW-WAN managed?
A: It integrates fully with the UniFi Network Application, allowing centralized monitoring, configuration, and firmware updates alongside other UniFi devices.
