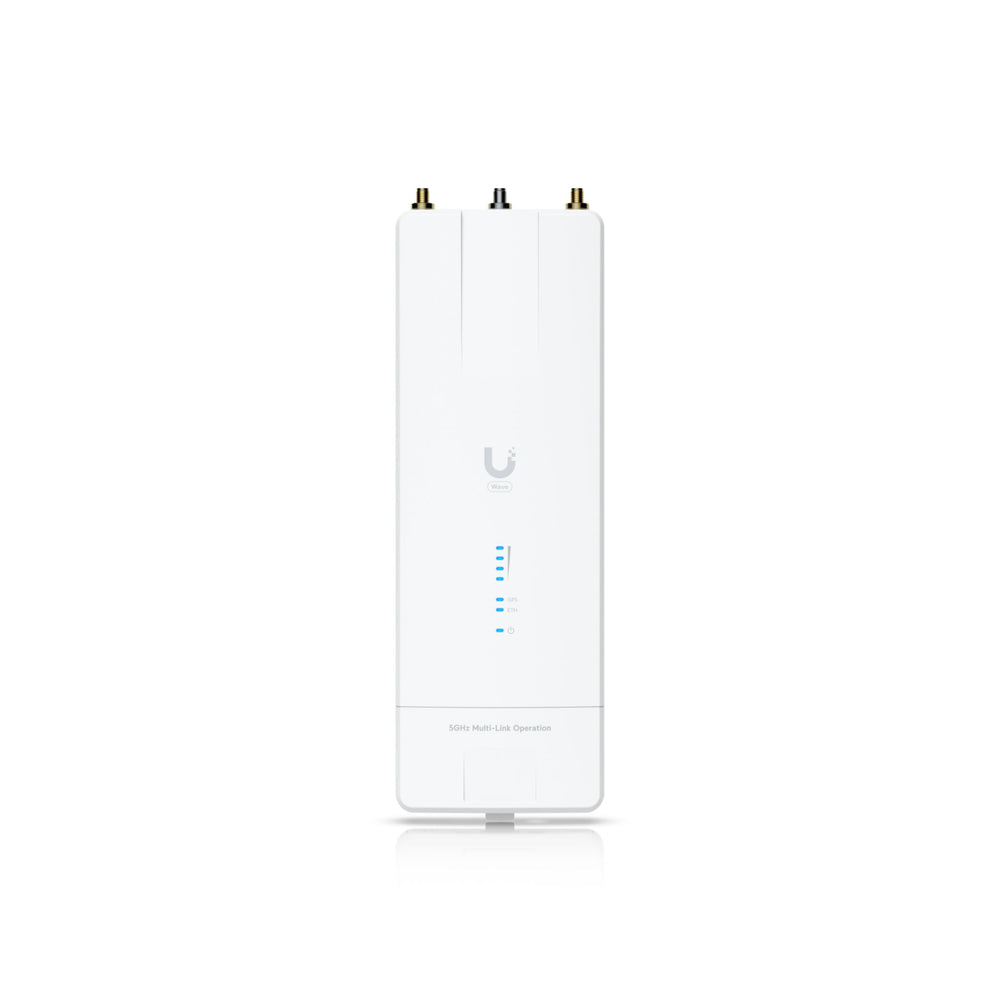

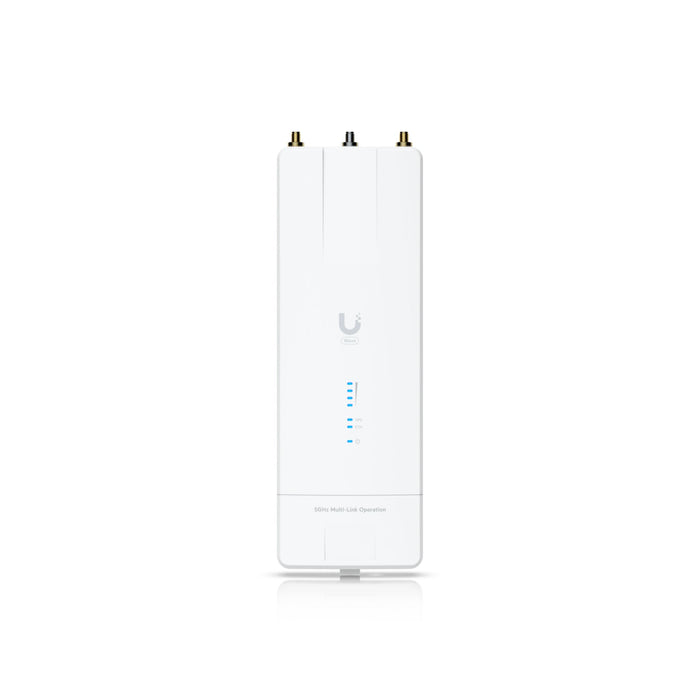

The Ubiquiti Wave MLO5 is a high-performance point-to-point radio system featuring dual 5 GHz WiFi 7-based radios with Multi-Link Operation (MLO) for improved throughput, link stability, and efficiency. Engineered for long-distance wireless deployments, the MLO5 supports over 100 km link range and delivers 5+ Gbps aggregate throughput, making it ideal for high-capacity backhaul and critical connectivity scenarios.
Equipped with advanced features such as channel puncturing and a dedicated spectral analysis radio, the Wave MLO5 ensures intelligent interference avoidance and optimised channel use. It includes both a 10 GbE port and an SFP+ port for flexible network integration, along with integrated Bluetooth for streamlined setup and management.
Compatible with a range of Ubiquiti antennas - including airMAX, airFiber X, UISP Dish, and UISP Horn - the Wave MLO5 supports a wide variety of deployment needs.
Note: MLO operation is currently supported up to 20 km, with extended ranges to be introduced via future firmware updates.
Tech Specs
View the Ubiquiti UISP Wave MLO5 datasheet here.
| Device Specifications | |
|---|---|
| Mechanical | |
| Dimensions | 249.3 x 82 x 47.6 mm (9.8 x 3.2 x 1.9") |
| Weight | 575 g (1.3 lb) |
| Enclosure Material | Aluminum alloy, UV-resistant polycarbonate |
| Mount Material | Strap: stainless metal Universal bracket: UV-resistant polycarbonate |
| Pole Mount Diameter | 25.4 to 50.8 mm (1 to 2") on pipe outer diameter |
| Weatherproofing | IPX6 |
| Hardware | |
| Processor | Quad-core IPQ5322 at 1.5 GHz |
| Memory | DDR4 1 GB |
| Networking Interface | (1) 10 GbE RJ45 port (1) 10G SFP+ port |

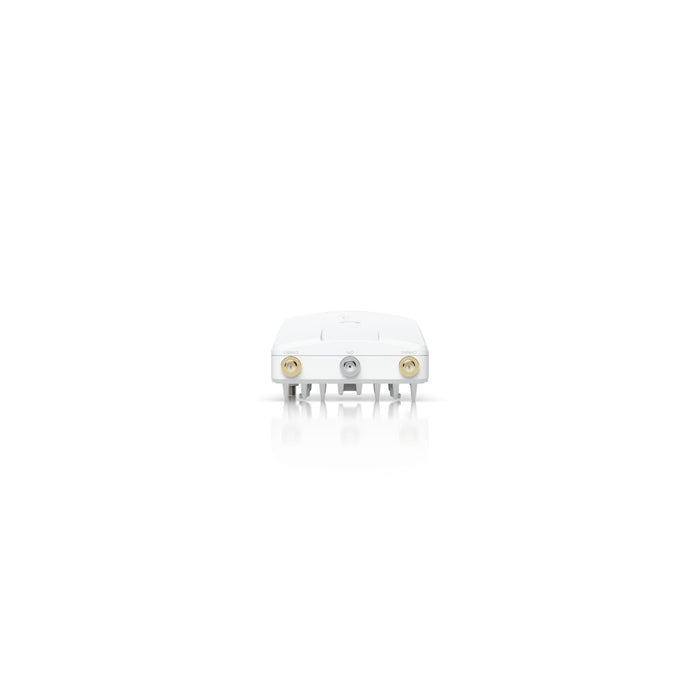

| RF Connectors | (2) RP-SMA (Waterproof) (1) GPS (Waterproof) |
| Max. Power Consumption | 20W |
| Power Method | Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only |
| Power Supply | 54V DC, 0.56A, 10 GbE PoE adapter (Included) |
| Supported Voltage Range | 44–54V DC 22–27V DC |
| Max. TX Power* | 5 GHz: 24 dBm *Depends on regulatory region. |
| MIMO | 5 GHz: (2) 2 x 2 |
| GPS | Yes |
| Button | (1) Factory reset |
| LEDs | (1) Power, (1) Ethernet, (1) GPS, (4) Signal |
| Ambient Operating Temperature | -40 to 60° C (-40 to 140° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | FCC, IC, CE |
| NDAA Compliant | Yes |
| Software | |
| Operating Mode | PtP |
| Services | UISP, ping watchdog, NTP client |
| Tools | Alignment, speed test, ping, traceroute, discovery, site survey |
| Network | Bridge mode |
| Total Throughput | 5+ Gbps |
| Max. Range* | 100 km *Throughput and range values may vary depending on environmental conditions. |
| Encryption | WPA3-PSK (AES) |
| RF | |
| Operating Frequency* | 5180 – 5320, 5500 – 5700, 5745 – 5825 MHz *Depends on regulatory region. |
| Channel Bandwidth | Radio 1: 20, 40, 80, 160 MHz Radio 2: 20, 40, 80, 160, 240 MHz |
| Modulation | BPSK (½), QPSK (½), QPSK (¾), 16QAM (½), 16QAM (¾), 64QAM (⅔), 64QAM (¾), 64QAM (⅚), 256QAM (¾), 256QAM (⅚), 1024QAM (¾), 1024QAM (⅚), 4096QAM (¾), 4096QAM (⅚) |
FAQs
Q: What frequency range does the Ubiquiti Wave-MLO5 operate on?
A: The Wave-MLO5 operates in the 5.15–5.85 GHz band, providing robust 5 GHz connectivity for outdoor point-to-multipoint deployments.
Q: What gain and beamwidth does the Wave-MLO5 provide?
A: This sector antenna delivers 17 dBi gain with a 90° horizontal and 6° vertical beamwidth, offering wide coverage for multiple client connections.
Q: Can the Wave-MLO5 be used for outdoor multi-client networks?
A: Yes, its sector design and wide beamwidth make it ideal for point-to-multipoint networks, such as campus or enterprise outdoor wireless deployments.
Q: What are the physical dimensions and weight of the Wave-MLO5?
A: The antenna measures 1,050 x 180 x 120 mm (41.3 x 7.1 x 4.7 inches) and weighs 7.5 kg (16.5 lb), suitable for secure tower or pole installation.
Q: Is the Wave-MLO5 compatible with Ubiquiti airMAX devices?
A: Yes, it is designed to work seamlessly with Ubiquiti airMAX radios, providing high-performance coverage and stable connections across multiple clients.
