MikroTik mANTBox 52 15s Dual-Band Base Station with Built-In Sector Antenna

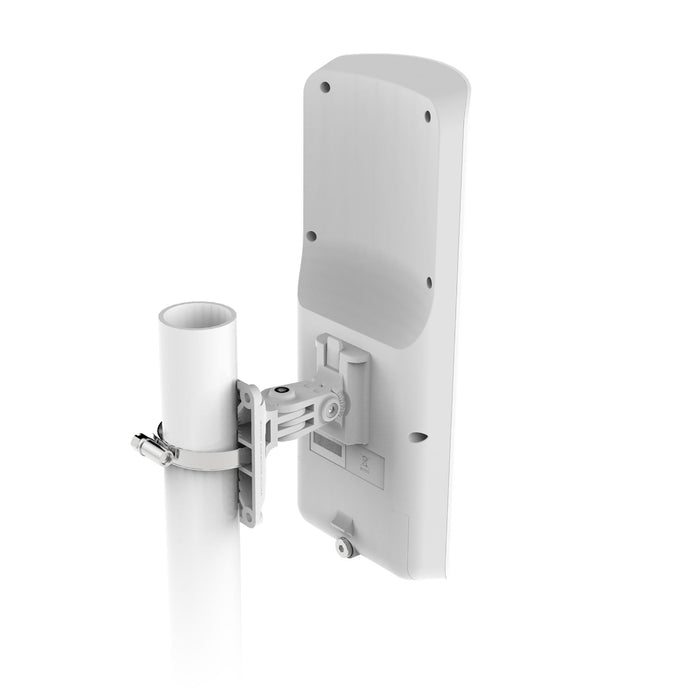

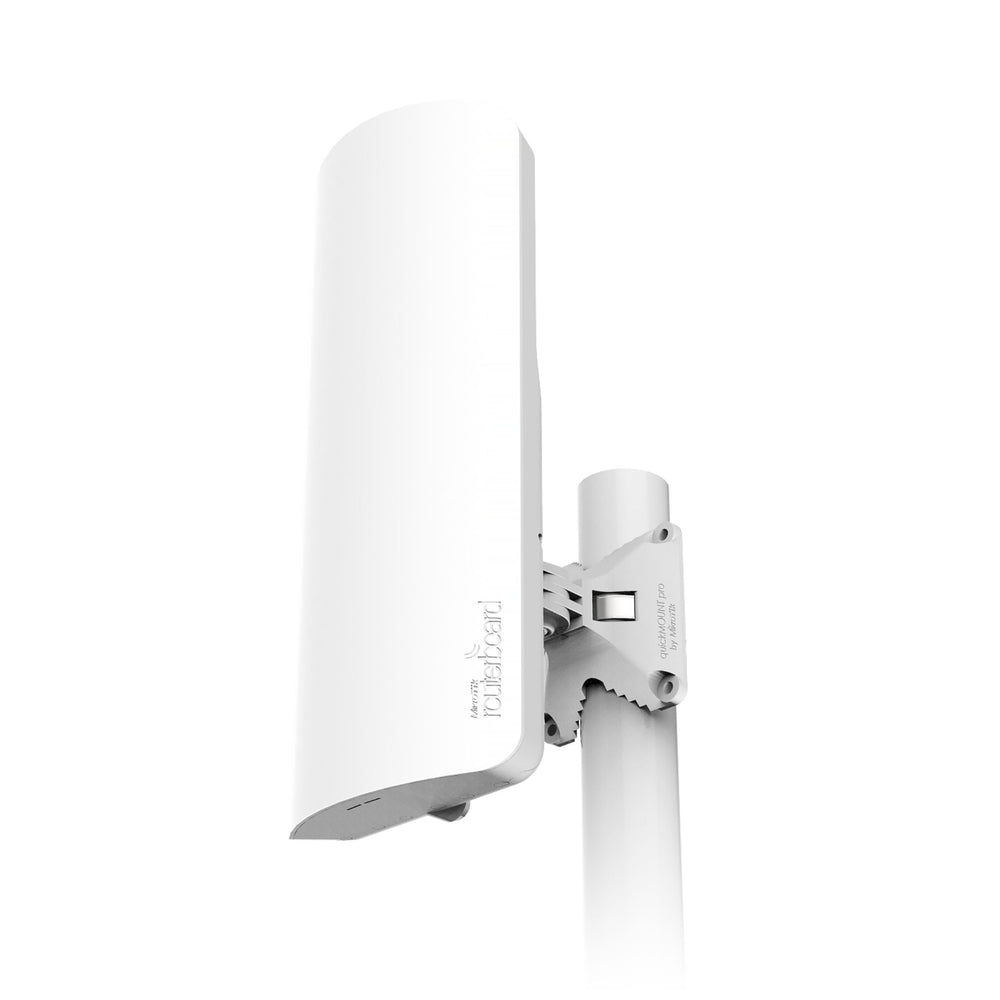

Get powerful antennas, dual-band wireless, Gigabit Ethernet, and SFP ports with MikroTik mANTBox 52 15s. With double the RAM and a quad-core processor, it can handle heavy loads and IPsec hardware offloading. Reach up to 20 km with the built-in dual polarisation antenna and use the included quickMOUNT pro for precise alignment.
Tech Specs
Click here for the RBD22UGS-5HPacD2HnD-15S datasheet.
| Device Specifications | |
|---|---|
| General | |
| Product code | RBD22UGS-5HPacD2HnD-15S |
| Suggested price | $179.00 |
| Architecture | ARM 32bit |
| CPU | IPQ-4019 |
| CPU core count | 4 |
| CPU nominal frequency | auto MHz |
| CPU Threads count | 4 |
| Switch chip model | IPQ-4019 |
| Dimensions | 140 x 348 x 82 mm |
| RouterOS license | 4 |
| Operating System | RouterOS |
| Size of RAM | 256 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 200'000 hours at 25°C |
| Tested ambient temperature | -40°C to +70°C |
| Powering | |
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 12-57 V |
| PoE in | 802.3af/at |
| Cooling type | Passive |
| PoE in input Voltage | 12-57 V |
| Wireless Specifications | |
| Wireless 2.4 GHz Max data rate | 300 Mbit/s |
| Wireless 2.4 GHz Number of chains | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n |
| Antenna gain (2.4 GHz) | 12 dBi |
| Wireless 2.4 GHz chip model | IPQ-4019 |
| Wireless 2.4 GHz generation | Wi-Fi 4 |
| Wireless 5 GHz Max data rate | 867 Mbit/s |
| Wireless 5 GHz Number of chains | 2 |
| Wireless 5 GHz standards | 802.11a/n/ac |
| Antenna gain (5 GHz) | 15 dBi |
| Wireless 5 GHz chip model | IPQ-4019 |
| Wireless 5 GHz generation | Wi-Fi 5 |
| Ethernet & Fiber | |
| 10/100/1000 Ethernet ports | 1 |
| SFP ports | 1 |
| Peripherals | |
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB type A |
| Max USB current (A) | 1 |
| Other | |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| Certification | CE, FCC, IC, EAC, ROHS |
| IP | IP55 |
FAQs
Q1: What is the MikroTik RBD22UGS-5HPacD2HnD-15S used for?
A: It is an outdoor dual‑band sector access point / base station, designed to provide 2.4 GHz and 5 GHz wireless coverage over a wide area — ideal for point‑to‑multipoint deployments such as campus, park, or large‑area Wi‑Fi coverage.
Q2: What are the main hardware and wireless specifications?
A: It runs on a 4‑core IPQ‑4019 CPU, includes 256 MB RAM and 16 MB flash storage; it supports dual‑chain 802.11b/g/n on 2.4 GHz (12 dBi antenna) and dual‑chain 802.11a/n/ac on 5 GHz (15 dBi antenna).
Q3: What wired connectivity and power options are available?

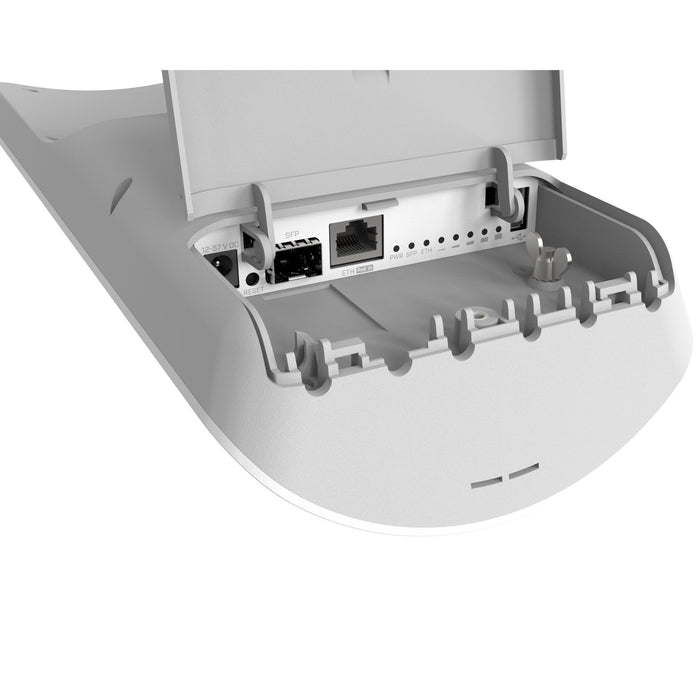

A: The unit offers one Gigabit Ethernet port and one 1 G SFP port. It supports PoE‑in compliant with 802.3af/at (12–57 V input) or direct DC jack input (12–57 V), and uses passive cooling.
Q4: What environmental conditions and build durability can be expected?
A: The mANTBox is rated for operation in ambient temperatures from –40 °C to +70 °C, making it suitable for outdoor deployments in a wide range of climates and weather conditions.
Q5: What kind of use‑cases or network scenarios is this device best suited for?
A: It is best used as a base station for outdoor wireless networks — covering large outdoor areas (parks, campuses, community Wi‑Fi), delivering sectorised coverage, or serving as a fixed wireless access point in point‑to‑multipoint setups.
